Skrå Sentralplate 45x45 1Snap-in

Application

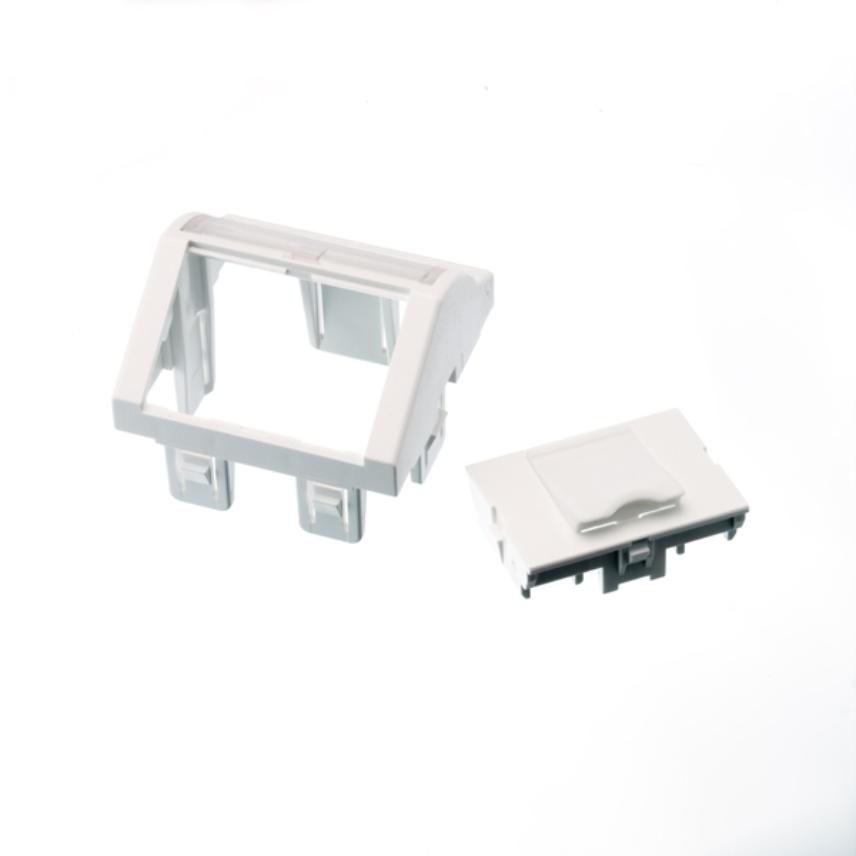

• The European style 45x45 angled module has a centred port to accommodate 1 LANmark Snap-In connector.
• It is also designed to hold a fibre Snap-In adaptor, either duplex LC or simplex SC.
• For detailed information on Nexans Snap-In connectors, please refer to the corresponding datasheets.

Guarantees

• The plastic material is UL 94V0

Installation

• The Snap-In connector easily clips in the shuttered front module, which then is mounted into the 45x45 module without the need for any tools.
• Thanks to the angled position of the connector, the minimum bend radius of the cable is maintained, even in situations where depth is restricted.
• The inclined faceplate also protects the patch cord and prevents dust entry when the shutter is left open.
• The 45x45 angled module fits into a wide range of international frames, surface mount boxes and trunking.

Features:

• Labelling window for easy management and port identification.
• Compatible with all Nexans Snap-In format connectors and adaptors
• Compatible with all Nexans 45x45 structural hardware
• Allows vertical and horizontal mounting in cable ducts
• Side clips can be easily removed if necessary
• Shuttered front module can be inserted in 2 different positions

Included in the kit:

• Labelling window
• Shutter

Optional:

• Coloured shutters (bag of 100):
  • red - ref. N421.701RED
  • blue - ref. N421.701BLUE
  • green - ref. N421.701GRE
  • yellow - ref. N421.701YEL
  • orange - ref. N421.701ORA
  • dark grey - ref. N421.701DGR
  • black - ref. N421.701BLA
