Patchepanel 24 Vinklet Snap-in Sort

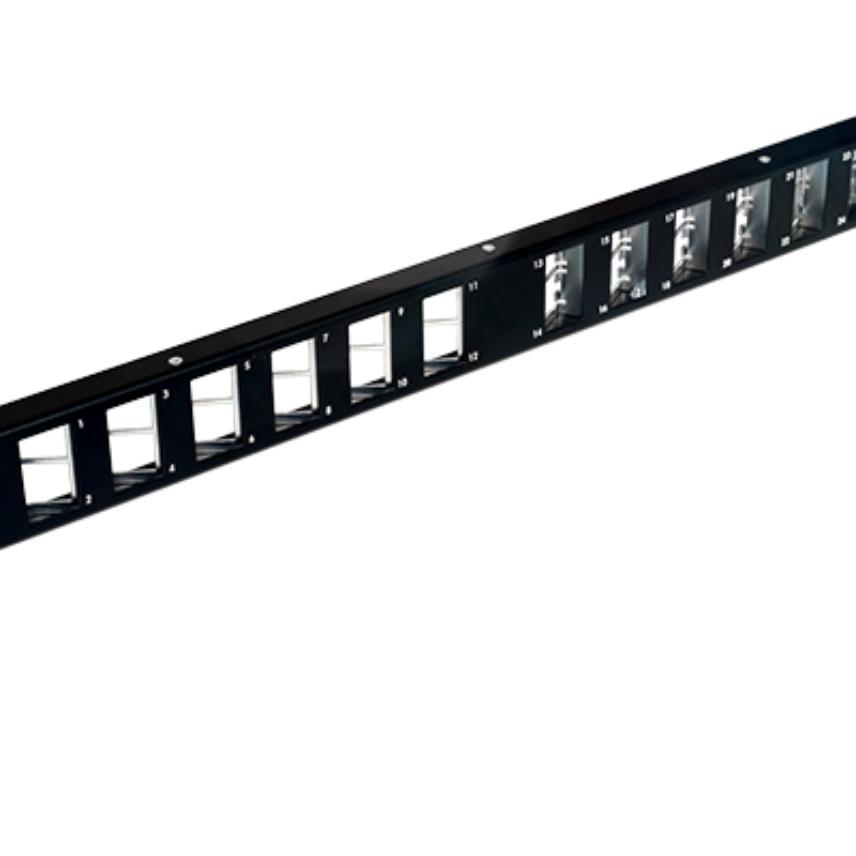

The LANmark Panel angled connectors is a shielded 19”/1U patch panel with a fixed tray for up to 24 regular RJ45/GG45 Snap-In connectors, which are mounted in an angled position inside the panel.

Six Dual Port Packs are mounted on each side, so that 12 connectors pointing to the left side and 12 connectors pointing to the right side.

Due to the angled design of the Dual Port Packs, it is possible to patch without any cable management panel above or below the LANmark Panel. Snap-In connectors can be easily fitted into the patch panel by using blue Keystone Clips, which are delivered with the panel.  The packaging of the panel does not contain connectors but is including 24 Keystone Clips for Snap-In connectors.

The patch panels are designed for standard 19" enclosures, are 1U high, and support the following common features:

• Front colour black, similar to RAL 9005
• Designed for screened and unscreened Snap-In connectors
• Compatible with all performance categories of connector
• 24 Ports available; port numbering from left to right
• Robust steel construction
• UL94V-0
