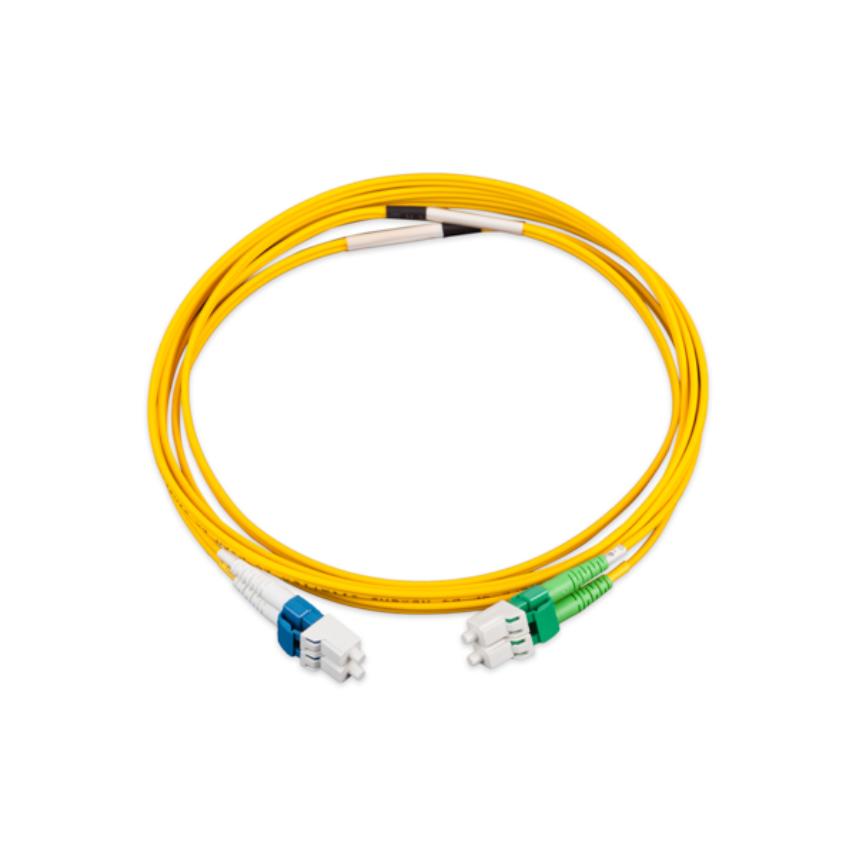

LANmark-OF Slimflex Patch Cord DLC/APC - DLC/UPC SM LSZH Yellow X m

Beskrivelse

Beskrivelse

Standarder

  • Internasjonal
    ISO/IEC 11801

Guarantees and installation
Nexans LANmark-OF optical fibre patch cords have been designed for indoor applications in support of high speed protocols.
High speed protocols supported include, but are not limited to Ethernet 1GBase-LX and Ethernet 10GBase-LR

Details on the supported distances can be found in the LANmark-OF warranty modules.



Typical installation environments are:

  • Cabinets to connect patch panels to active equipment.
  • Cross connects in data centres.
  • Suitable for use in the work area to connect the workstation to the wall outlet (Fibre To The Desk).



Characteristics

  • Patch cord cable is according to IEC 60794-2-50
  • Maximum insertion loss according to IEC 61300-3-4: 0.25 dB
  • Typical insertion loss: 0.1 dB
  • Minimum return loss according to IEC 61300-3-6 for LC/UPC: 50 dB
  • Minimum return loss according to IEC 61300-3-6 for LC/APC: 65 dB
  • Duplex LC-LC, duplex LC-SC and duplex SC-SC patch cords have a duplex cable construction with a diameter of 2 X 2.0 mm.
  • Short connector boots of 19mm
  • Small bend radius: 10 mm
  • A traceability label is added close to the connector



Fibre type

The LANmark-OF SM patch cords have LANmark-OF SM GIGAliteFLEX fibre inside.  These fibres are bend insensitive and compliant to ITU-T G.657.A1 and to IEC 60793-2-50, fibre model B6.a1. The pigtail jacket of the singlemode pigtails is yellow.







Design
Nexans LANmark-OF patchcords designed according to the "Cross-Over" wiring principle to improve field installation (A1-B2, B1-A2). This conforms to the requirements of IEC 11801 and EN 50174-1:2009.

The "butterfly" duplex clip allows to change the polarity on site easily by simply removing the 2 connectors and put them in a reverse order back into the same clip. No tool is required for this polarity change.





Schematic Polarity Patch Cord

Karakteristikker

Karakteristikker

Konstruksjonsegenskaper

Konstruksjonsegenskaper

Farge
Gul
Fibertype
SM 9/125
Konnektor type
Duplex LC/UPC-LC/APC
Skjerm/-armeringstype
Aramidgarn
Ytre kappe
LSZH-FR

Dimensjonsegenskaper

Dimensjonsegenskaper

Bredde
4 mm
Høyde
2 mm
Nominell indre diameter
2,0 mm

Transmisjonsegenskaper

Transmisjonsegenskaper

Insertion Loss, maximum, dB
0,25 dB
Return Loss, Minimum, dB
50 dB

Mekaniske egenskaper

Mekaniske egenskaper

Maximum pulling force (IEC 60794-1-2-E1)
200 N
Motstand mot sammenpressing (IEC 794-1)
100 N/cm

Bruksegenskaper

Bruksegenskaper

Driftstemperatur område
-10 ... 50 °C
Flammehemmende
IEC 60332-1
Min. statisk bøyeradius
10 mm
