LANmark-5E SF/UTP LSZH Inne & Ute

Specification

The LANmark Industry SF/UTP LSZH cable features performance up to 100MHz. When terminated with LANmark-5 connectors it meets the Class D requirements of ISO/IEC 11801:2011. Its specially developed LSZH In & Out sheath gives mechanical strength as well as resistance against UV light and water.

Application

The LANmark Industry SF/UTP LSZH cable is the appropriate cable for fixed LAN networks in industrial and exposed areas. It will support industrial Ethernet applications as well as high speed data applications.

• 10Base-T,
• 100 Base-T
• 1GBase-T
• Industrial Ethernet

This cable is ideal for connections to CCTV cameras and antennae.

Screening

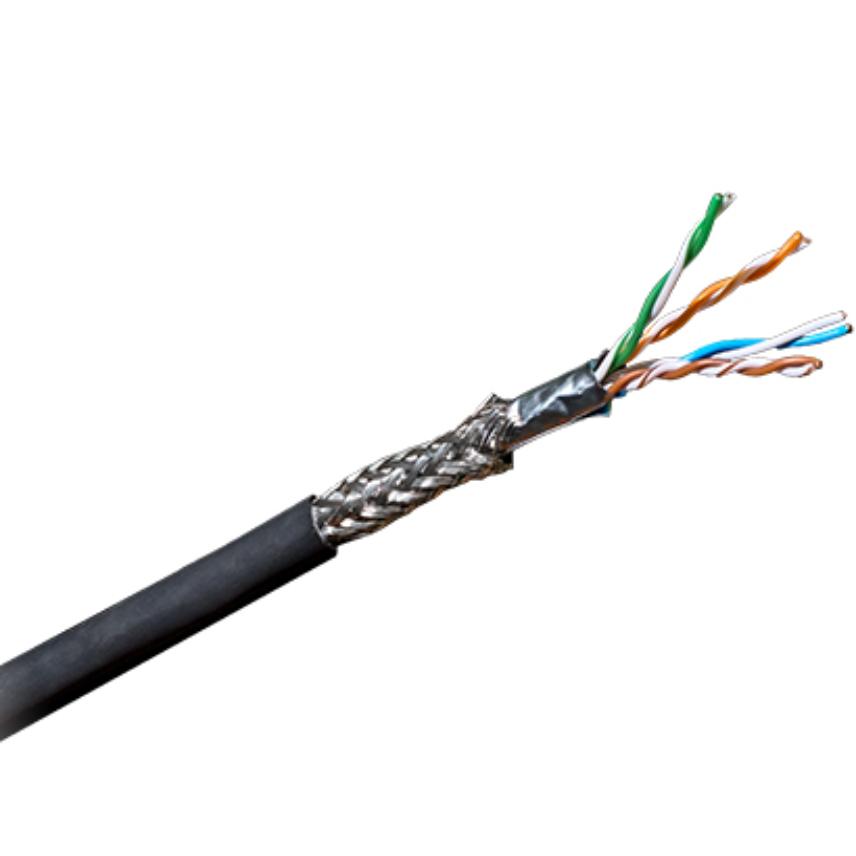

The SF/UTP cable consists of 4 pairs, bundled by an overall foil and a braid. It complies with the EMC requirements for screened cables and shows excellent transfer impedance values. It is designed for electrically "noisy" environments.

Fire classification

• Fire test according to IEC 60332-1

Cable sheath

• Outer sheath LSZH (black) compound for superior UV, water and moisture resistance. This cable is suitable for installation in ducts. It is not suitable for direct burial. The cable can be installed indoors as the cable meets IEC 60332-1 and therefore the installation requirements of EN 50174-2.
