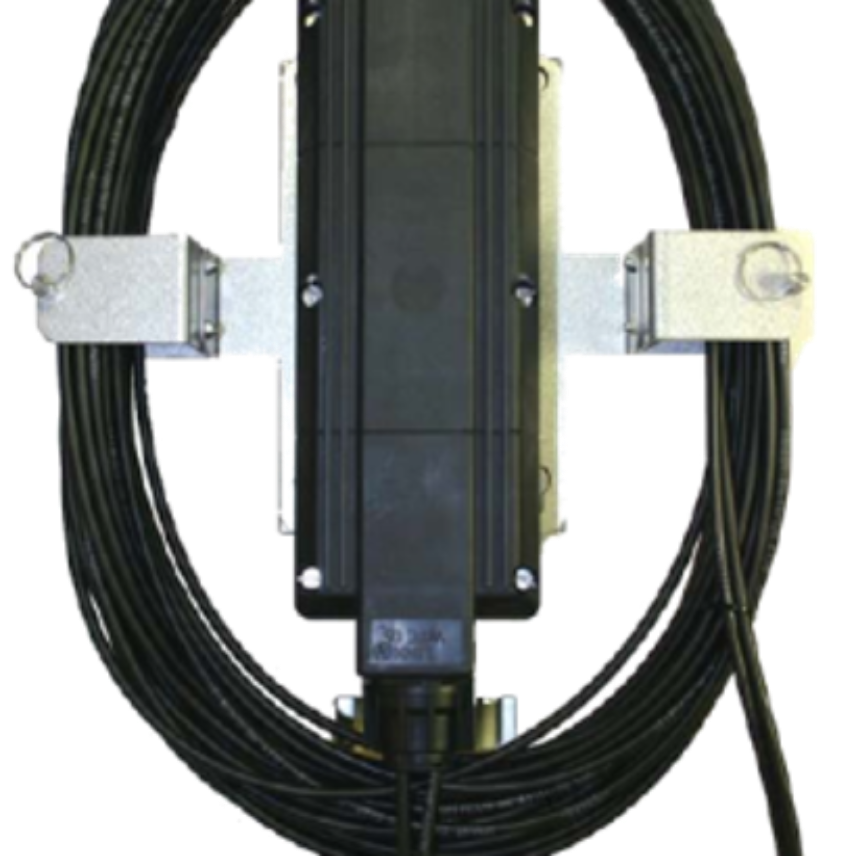

WTC 0.5 standard 12 skjøter

Watertight Closure for Fibre Optic Cables

• 2 Cable ports,
• Re-enterable, fully mechanical watertight system,
• IP68 and pressurizable,
• Capacity : 4 splice trays, 48 splices,
• Multi-cable sealing system (up to 12 cables per port).

Cabling configuration :

• 1 Standard port per side, each allowing up to 12 cables.

Splice management :

Four plastic splice trays allows to store and identify up to 48 Heat-Shrink splices. Plastic combs for buffer tubes and pig-tails retention are moulded in each tray.

Grounding :

• Standard grounding assures electrical continuity between all cable ports (individual cable grounding is also available)

Cable anchoring :

• WTC05 is compatible with the Nexans cable clamp range. 3 points cable clamps for extremely high cable retention, or simplified 1 point anchoring systems are available.

All configurations are modular and allow easy upgrades.

The main functions are :

• to protect splices and bare fibers from the environment and unwanted handlers,

• to efficiently and easily store, manage and identify FO splices and fibers.

Conception

Sealing system :

• Fully mechanical sealing system for reduced installation and re-entry time.

The top shell, sealed with a gasket, can be easily installed and removed without special tools or torque control.

• Cable sealing devices based on a mechanical compression system : this allows to re-use all components for future upgrades or re-access to the closure.

(No tape, glue, heat-shrink tubes, or cable jacket preparation is needed).
