AXQJ Easy 1 kV 4X150/41

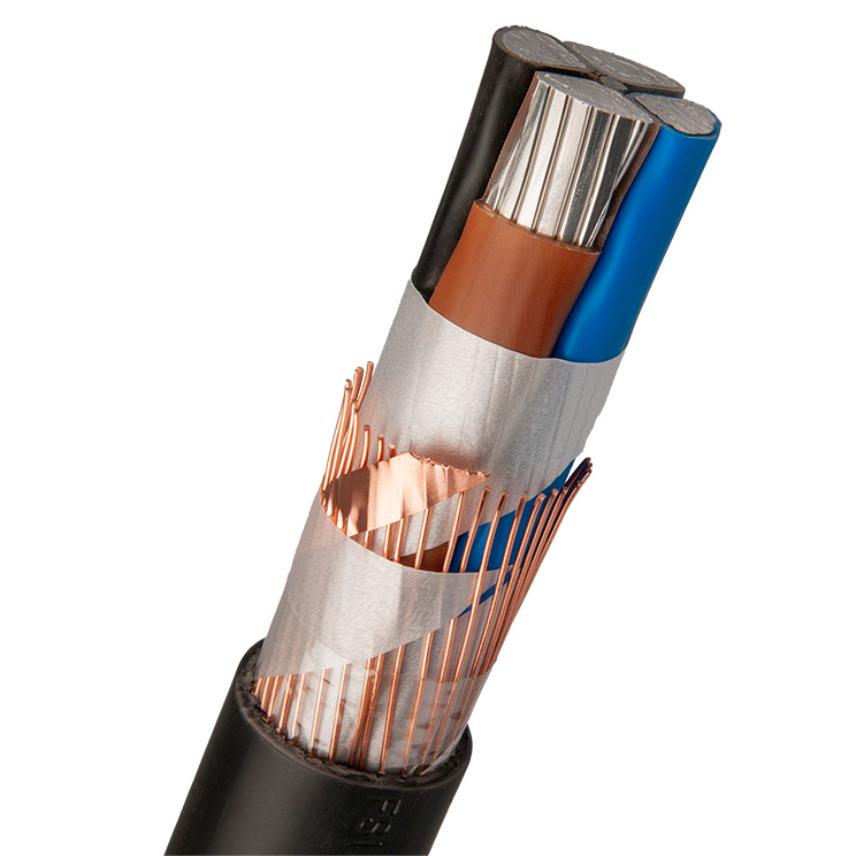

AXQJ/IFSI/AMCMK HF Easy™ is a halogen free, XLPE-insulated, HFFR-sheathed cable with sector shaped, stranded aluminium conductors. The cable has a screen of annealed copper wires with opposite open helix of copper. AXQJ/IFSI/AMCMK HF Easy™ is designed according to HD 603 5AB. The conductors have resistance and number of wires according to IEC 60228 class 2. The cable is easy to bend and handle. The cores are identified by colours according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. AXQJ Easy™ meets the requirements for fire classification accordingto CPR D_cas₂d₂a₂. The cable is certified by Intertek SEMKO.

Standards

AXQJ/IFSI/AMCMK HF Easy™ is manufactured and tested according to HD 603 3-L.The cable can be loaded in accordance with national regulations on electrical installations.

Certification

Approved by Intertek SEMKO.

Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.

EcoCalculator

Choose the best cable solution to achieve Energy Efficiency, reduced Carbon Footprint and improved Safety of people in case of fire, whilst ensuring a good return on Investment.
