FXQ Easy™ 1 kV
FXQ Easy™ 1 kV
The cable may be used for fixed installation indoors and outdoors in air, ground and water.
Read moreFXQ Easy™1kV 3G1,5
Nexans ref. 10547493 - Country ref. 1087800
- Packaging: Drum (500m)
- Nominal outer diameter: 9.9 mm
- Approximate weight: 14.0 kg/100m
FXQ Easy™1kV 3G2,5
Nexans ref. 10547494 - Country ref. 1087801
- Packaging: m (500m)
- Nominal outer diameter: 10.9 mm
- Approximate weight: 18.0 kg/100m
FXQ Easy™1kV 3G6
Nexans ref. 10547495 - Country ref. 1087802
- Packaging: Drum (500m)
- Nominal outer diameter: 14.3 mm
- Approximate weight: 36.0 kg/100m
FXQ Easy™1kV 4G10
Nexans ref. 10547497 - Country ref. 1087804
- Packaging: m (500m)
- Nominal outer diameter: 17.8 mm
- Approximate weight: 56.0 kg/100m
FXQ Easy™1kV 4G16
Nexans ref. 10547498 - Country ref. 1087805
- Packaging: Drum (500m)
- Nominal outer diameter: 20.2 mm
- Approximate weight: 86.0 kg/100m
FXQ Easy™1kV 4G6
Nexans ref. 10547500 - Country ref. 1087807
- Packaging: Drum (500m)
- Nominal outer diameter: 15.4 mm
- Approximate weight: 43.0 kg/100m
FXQ Easy™1kV 5G1,5
Nexans ref. 10547501 - Country ref. 1087808
- Packaging: m (500m)
- Nominal outer diameter: 11.6 mm
- Approximate weight: 19.0 kg/100m
FXQ Easy™1kV 5G10
Nexans ref. 10547502 - Country ref. 1087809
- Packaging: Drum (500m)
- Nominal outer diameter: 19.3 mm
- Approximate weight: 68.0 kg/100m
FXQ Easy™1kV 5G16
Nexans ref. 10547503 - Country ref. 1087810
- Packaging: Drum (500m)
- Nominal outer diameter: 21.8 mm
- Approximate weight: 100.0 kg/100m
FXQ Easy™1kV 5G2,5
Nexans ref. 10547504 - Country ref. 1087811
- Packaging: m (500m)
- Nominal outer diameter: 12.8 mm
- Approximate weight: 26.0 kg/100m
FXQ Easy™1kV 5G6
Nexans ref. 10547505 - Country ref. 1087812
- Packaging: m (500m)
- Nominal outer diameter: 16.7 mm
- Approximate weight: 48.0 kg/100m
Description
Description
Standards
-
ProductHD 603 S1/5O; NEK HD 604-5D
-
NationalSS 424 14 18
Description

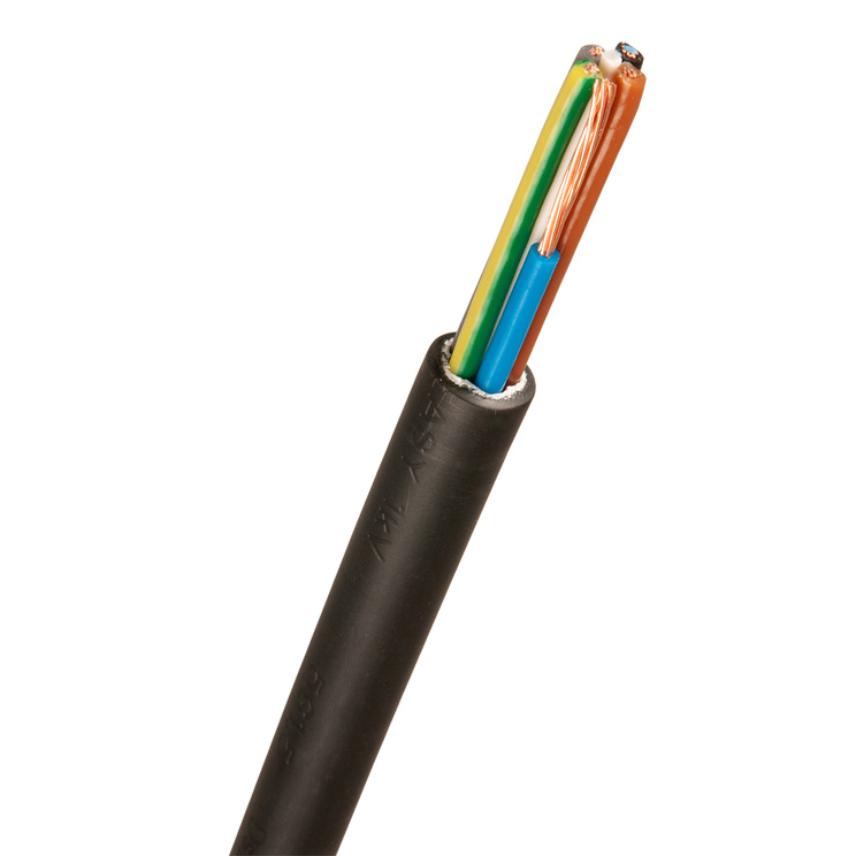

FXQ Easy™ 1 kV is a PEX-insulated and HFFR-sheathed house wiring cable with circular, stranded copper conductors. The cable is designed according to SS 424 14 18 in applicable parts. The conductors have resistance and number of wires according to EN 60228 class 2. The cores are identified by colours according to HD 308. The cable has a white inner layer of the sheath. The inner layer have longitudinal ridges which make the cable extremely easy to strip and resistant against pressure and impact. The sheath is marked type/manufacturer/year+month/metre marking. FXQ Easy™ 1 kV meets the requirements for flammability class Dcas2d2a2 according to CPR and have protection against exposure of UV-light according to HD 626 S1 part 2.5.1. The conductor insulation shall be protected against UV light that can occur for example in light fixtures and light signs.
Lifemark™ recycling marking
The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
FXQ Easy™ 1 kV will be delivered in lengths of 50 and 500 m. The packaging is marked with manufacturer, type of cable and length.
