IFSI 500 V EMC Alsecure control cable (CPR)

Products

IFSI 4x0,75 mm² EMC

Nexans ref. 10538573 - Country ref. 1007780

  • Packaging: Drum (1000m)
  • Approximate weight: 13.2 kg/100m
  • Nominal outer diameter: 9.5 mm
  • Number of cores: 4
  • Resistance of the screen: 7.0 Ohm/km
  • Length: 1000 m



IFSI 8x0,75 mm² EMC

Nexans ref. 10538574 - Country ref. 1007781

  • Packaging: Drum (1000m)
  • Approximate weight: 28.0 kg/100m
  • Nominal outer diameter: 15.0 mm
  • Number of cores: 8
  • Resistance of the screen: 4.5 Ohm/km
  • Length: 1000 m



IFSI 12x0,75 mm² EMC

Nexans ref. 10538575 - Country ref. 1007782

  • Packaging: Drum (500m)
  • Approximate weight: 30.0 kg/100m
  • Nominal outer diameter: 16.0 mm
  • Number of cores: 12
  • Resistance of the screen: 4.5 Ohm/km
  • Length: 500 m



IFSI 20x0,75 mm² EMC

Nexans ref. 10538576 - Country ref. 1007783

  • Packaging: Drum (500m)
  • Approximate weight: 46.0 kg/100m
  • Nominal outer diameter: 20.0 mm
  • Number of cores: 20
  • Resistance of the screen: 4.5 Ohm/km
  • Length: 500 m



IFSI 28x0,75 mm² EMC

Nexans ref. 10538577 - Country ref. 1007784

  • Packaging: Drum (3000m)
  • Approximate weight: 56.5 kg/100m
  • Nominal outer diameter: 21.0 mm
  • Number of cores: 28
  • Resistance of the screen: 3.0 Ohm/km
  • Length: 3000 m



Description

Description

Standards

  • Product
    HD 627.7 B1; IEC 60228; NEK HD 627-7B1
  • Test
    IEC 60754-1; IEC 61034

Description

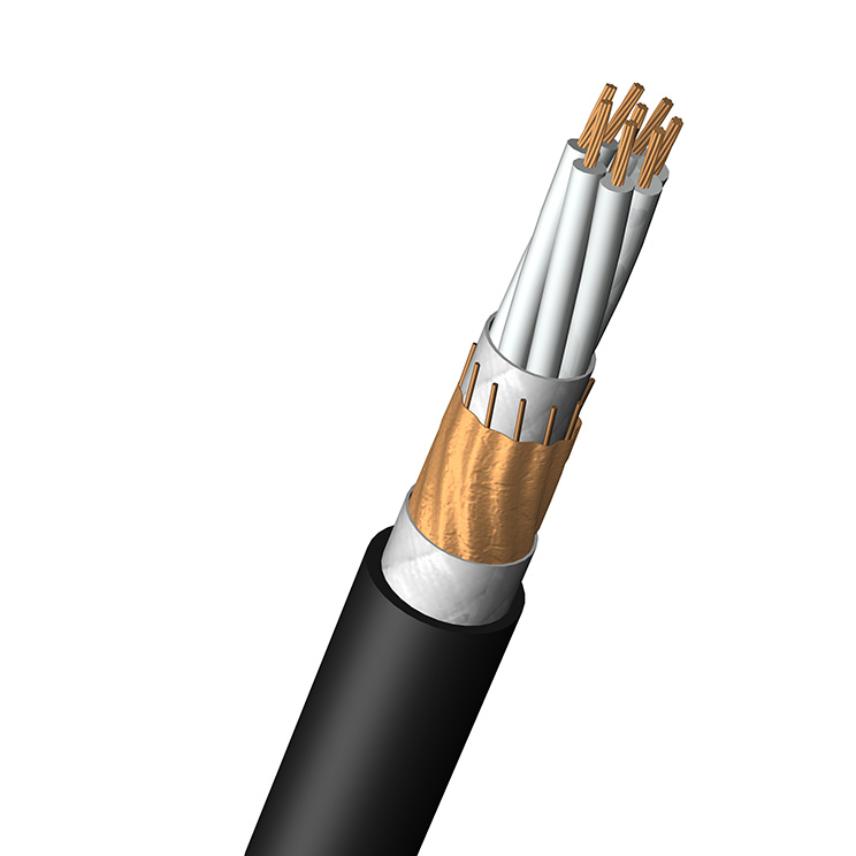

Halogen free screened control cable for indoor and outdoor use.The cable has a screen of annealed copper wires with opposite overlapping helix of copper tape. The copper screen has an optical coverage of 100 % and fullfil the EMC directive when it is correct installed.Suitable for installations where small cross sections and flexible conductors are needed. May be installed directly in ground.



Quad assembled cores are specially suitable for electronic control installations due to small mutual influence between the different circuits.



IFSI 500V is a halogen free version of PFSP 500V control cable.





The cable is marked with LIFEMARK™.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Bare annealed copper stranded
Conductor shape
Circular
Core identification
Numbers
Halogen free
Yes
Insulation
Halogen free compound
Lead free
Yes
Screen
Concentric copper
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Average insulation thickness
0.6 mm
Conductor cross-section
0.75 mm²

Electrical characteristics

Electrical characteristics

Mutual capacitance
90 nF/km
Nominal resistance of the conductor
26.00 Ohm/km

Usage characteristics

Usage characteristics

Max. conductor temperature in service
70 °C
