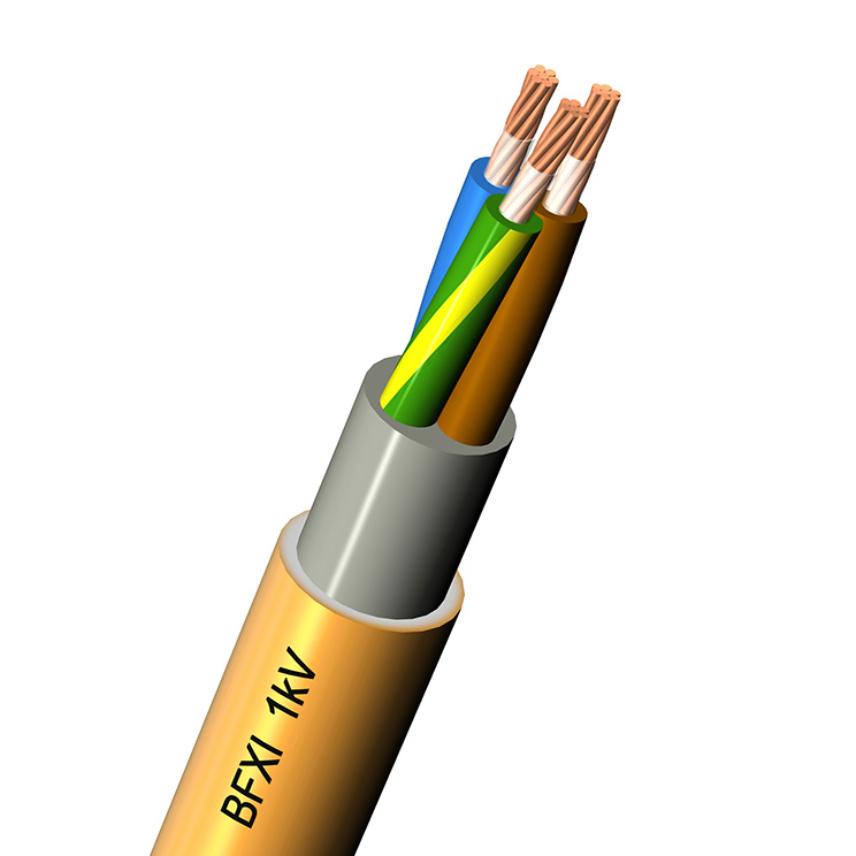

BFXI 0,6/1 kV ALSECURE PLUS
BFXI 0,6/1 kV ALSECURE PLUS
Uo/U: 600/1000V
Halogen free, fire resistant, double insulated cables
BFXI 0,6/1 kV 3G1,5
Nexans ref. 10263785 - Country ref. 1067370
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 10.6 mm
- Approximate weight: 161 kg/km
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
BFXI 0,6/1 kV 2x2,5
Nexans ref. 10544791 - Country ref. 1067372
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Nominal outer diameter: 10.6 mm
- Approximate weight: 211 kg/km
- Conductor cross-section: 2.5 mm²
- Number of cores: 2
BFXI 0,6/1 kV 3G2,5
Nexans ref. 10263786 - Country ref. 1067371
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 11.5 mm
- Approximate weight: 202 kg/km
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
BFXI 0,6/1 kV 2x4
Nexans ref. 10262400 - Country ref. 1067375
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Nominal outer diameter: 12.7 mm
- Approximate weight: 247 kg/km
- Conductor cross-section: 4 mm²
- Number of cores: 2
BFXI 0,6/1 kV 3x4
Nexans ref. 10262401 - Country ref. 1067376
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Nominal outer diameter: 13.4 mm
- Approximate weight: 287 kg/km
- Conductor cross-section: 4 mm²
- Number of cores: 3
BFXI 0,6/1 kV 3G4
Nexans ref. 10262446 - Country ref. 1067381
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 13.4 mm
- Approximate weight: 287 kg/km
- Conductor cross-section: 4 mm²
- Number of cores: 3
BFXI 0,6/1 kV 4x4
Nexans ref. 10262402 - Country ref. 1067377
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Nominal outer diameter: 14.5 mm
- Approximate weight: 342 kg/km
- Conductor cross-section: 4 mm²
- Number of cores: 4
BFXI 0,6/1 kV 4G4
Nexans ref. 10262447 - Country ref. 1067382
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 14.5 mm
- Approximate weight: 342 kg/km
- Conductor cross-section: 4 mm²
- Number of cores: 4
BFXI 0,6/1 kV 5G4
Nexans ref. 10262448 - Country ref. 1067383
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 15.8 mm
- Approximate weight: 407 kg/km
- Conductor cross-section: 4 mm²
- Number of cores: 5
BFXI 0,6/1 kV 2x6
Nexans ref. 10262403 - Country ref. 1067378
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Nominal outer diameter: 13.7 mm
- Approximate weight: 309 kg/km
- Conductor cross-section: 6 mm²
- Number of cores: 2
BFXI 0,6/1 kV 3x6
Nexans ref. 10262444 - Country ref. 1067379
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Nominal outer diameter: 14.5 mm
- Approximate weight: 364 kg/km
- Conductor cross-section: 6 mm²
- Number of cores: 3
BFXI 0,6/1 kV 3G6
Nexans ref. 10262449 - Country ref. 1067384
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 14.5 mm
- Approximate weight: 364 kg/km
- Conductor cross-section: 6 mm²
- Number of cores: 3
BFXI 0,6/1 kV 4x6
Nexans ref. 10262445 - Country ref. 1067380
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Nominal outer diameter: 15.7 mm
- Approximate weight: 436 kg/km
- Conductor cross-section: 6 mm²
- Number of cores: 4
BFXI 0,6/1 kV 4G6
Nexans ref. 10262450 - Country ref. 1067385
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 15.7 mm
- Approximate weight: 436 kg/km
- Conductor cross-section: 6 mm²
- Number of cores: 4
BFXI 0,6/1 kV 5G6
Nexans ref. 10262451 - Country ref. 1067386
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 17.1 mm
- Approximate weight: 521 kg/km
- Conductor cross-section: 6 mm²
- Number of cores: 5
BFXI 0,6/1 kV 3G10
Nexans ref. 10265714 - Country ref. 1067303
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 18.7 mm
- Approximate weight: 589 kg/km
- Conductor cross-section: 10 mm²
- Number of cores: 3
BFXI 0,6/1 kV 4x10
Nexans ref. 10259655 - Country ref. 1067301
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Nominal outer diameter: 19.8 mm
- Approximate weight: 716 kg/km
- Conductor cross-section: 10 mm²
- Number of cores: 4
BFXI 0,6/1 kV 4G10
Nexans ref. 10545653 - Country ref. 1067306
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 19.8 mm
- Approximate weight: 651 kg/km
- Conductor cross-section: 10 mm²
- Number of cores: 4
BFXI 0,6/1 kV 5G10
Nexans ref. 10262527 - Country ref. 1067302
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 21.5 mm
- Approximate weight: 776 kg/km
- Conductor cross-section: 10 mm²
- Number of cores: 5
BFXI 0,6/1 kV 3G16
Nexans ref. 10265715 - Country ref. 1067307
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 20.1 mm
- Approximate weight: 833 kg/km
- Conductor cross-section: 16 mm²
- Number of cores: 3
BFXI 0,6/1 kV 4G16
Nexans ref. 10545660 - Country ref. 1067308
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 21.9 mm
- Approximate weight: 973 kg/km
- Conductor cross-section: 16 mm²
- Number of cores: 4
BFXI 0,6/1 kV 5G16
Nexans ref. 10545662 - Country ref. 1067309
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 23.9 mm
- Approximate weight: 1197 kg/km
- Conductor cross-section: 16 mm²
- Number of cores: 5
BFXI 0,6/1 kV 4G25
Nexans ref. 10263750 - Country ref. 1067322
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 25.0 mm
- Approximate weight: 1436 kg/km
- Conductor cross-section: 25 mm²
- Number of cores: 4
BFXI 0,6/1 kV 5G25
Nexans ref. 10545664 - Country ref. 1067323
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Nominal outer diameter: 27.2 mm
- Approximate weight: 1766 kg/km
- Conductor cross-section: 25 mm²
- Number of cores: 5
Description
Description
Standards
-
ProductHD 604.5D; IEC 60228
-
TestIEC 60331-1 or 2; IEC 60332-1-2; IEC 60332-3 Cat.C; IEC 60754; IEC 61034-1/2
ALSECURE® PLUS BFXI 0,6/1 kV cables are designed to be used in safety systems (emergency lights, warning systems, fire fighting equipments, etc ...) in all premises open to the public (concert hall, theaters, cinemas, department stores, hospitals, schools, etc ...), in high-rises buildings, in tunnels, in industries.
ALSECURE® PLUS cables, with MICA tape technology, are fire resistant and fire retardant, low smoke and halogen free. In the event of fire, emitted gazes are non corrosive and have a very low toxicity.
Installation
- To be installed in accordance with the current regulation.
- For indoor and outdoor use. UV-resistant outer sheath, howevere insulated conductors would need extra protection if exposed to UV light.
- If buried into the ground, extra protection is needed, for example conduit or covering boards
Fire performance
Fire resistant according to: IEC 60331-21, 1000 deg. Celsius for minimun 90 minutes
Fire retardant according to : IEC 60332-3C
