FKX 90 2x1.5 DOWNLIGHT B2 150
FKX 90 2x1.5 DOWNLIGHT B2 150

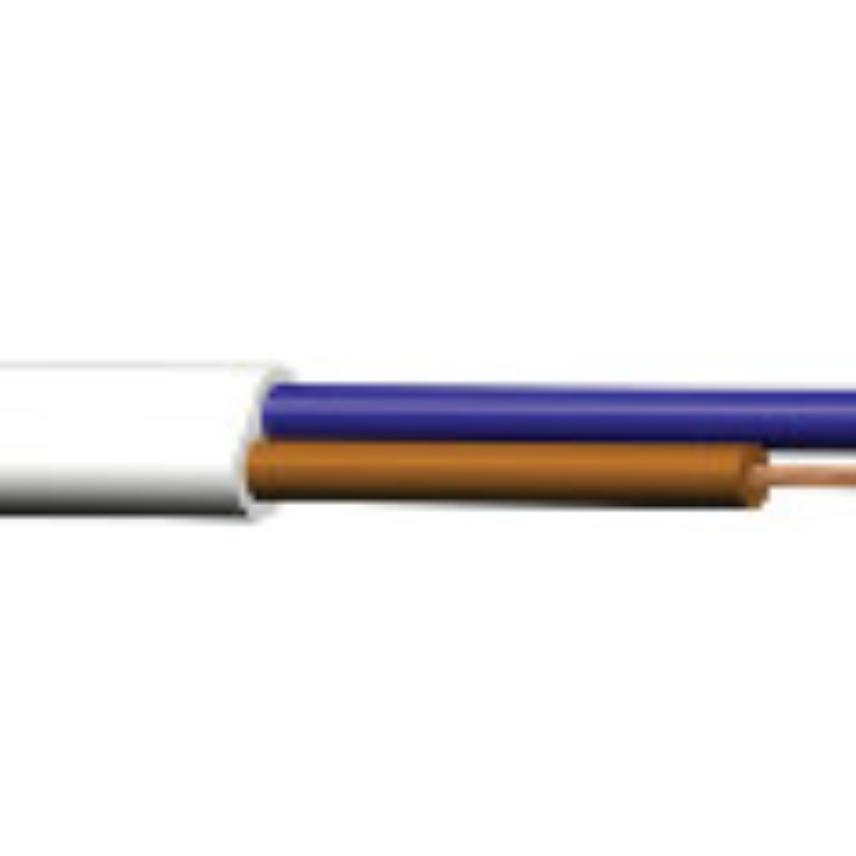

Oval, cable with lead free PVC insulation and sheath for max 90 °C operating temperature
Read more- Nexans ref. : 10189491
- Country ref. : 1060415
- EAN : 7045210059700
Description
Description
Standards
-
ProductEN 50525-2-11
-
TestNEK IEC 60332-1-2
-
NationalNEK 535
Design
- Conductor Circular, stranded copper conductor accordance with IEC 60228, class 2.
- Insulation Coloured leadfree PVC in accordance with relevant parts of EN 50525-2-11 and NEK 535. The conductors are laid parallel.
- Sheath Coloured leadfree PVC in accordance with relevant parts of EN 50525-2-11 and NEK 535.
Quality system
EN ISO 9001.
Environmental system
ISO 14001 and registered according to EMAS.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Sheath colour
White
Conductor material
Bare copper
Insulation
PVC
Outer sheath
PVC
Lead free
Yes
Conductor flexibility
Stranded class 2
Conductor shape
Circular
Halogen free
No
With Green/Yellow core
No
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
1.5 mm²
Number of core wires (nb x mm Ø)
-
Average insulation thickness
0.7 mm
Diameter over insulation
3.0 mm
Number of cores
2
Average sheath thickness
0.8 mm
Height
4.6 mm
Width
7.5 mm
Approximate weight
7.8 kg/100m
Approximate weight
78 kg/km
Conductor diameter
1.6 mm
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
- Ohm/km
Rated Voltage Uo/U (Um)
300/500 V
Usage characteristics
Usage characteristics
Length
150 m
Max. conductor temperature in service
90 °C
Minimum installation temperature
0 °C
Packaging
Reel in a box
RoHS compliant
Yes
Resources
Resources
Declaration of Performance
- Declaration of Performance n� : 1000337-NOLA
- Certification Date : 4/25/17
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0402
- Declared performance : Eca
