H03VVH2-F 2X0,75 (SKX-U) 300/300 V
H03VVH2-F 2X0,75 (SKX-U) 300/300 V
The cable may be used indoors for connecting of light portable apparatuses, i.e. table lamp and radio.
Read more- Nexans ref. : 22520541-002-02
- Country ref. : 1060631
- EAN : 7330000020238
Description
Description
Standards
-
ProductEN 50525-2-11
Description

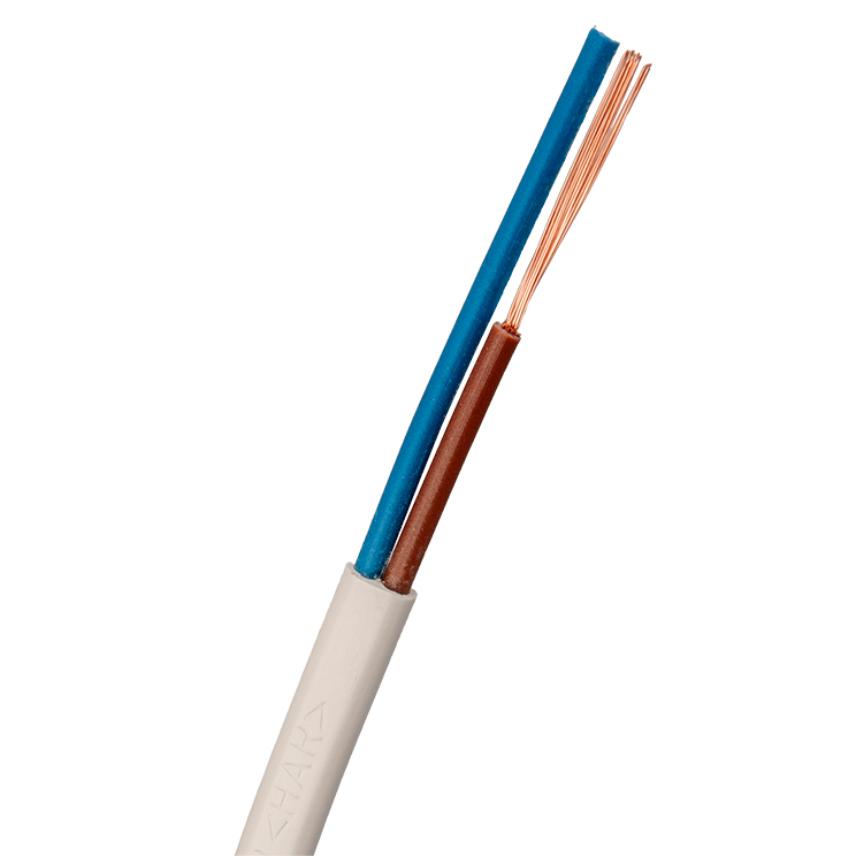

H03VVH2-F is an oval and light, lead free, PVC insulated, PVC sheathed connecting cable with circular and multi stranded copper conductors. The cable is designed according to EN 50525-2-11. The conductors have resistance according to EN 60228 class 5. The parallel laid cores are identified by colours according to HD 308. The sheath is marked "NEXANS GS H03VVH2-F 2X0.75 SEMKO HAR". H03VVH2-F meets the requirements for flammability according IEC 60332-1 (F2). The cable is certified by SEMKO.
Certification
Certified by SEMKO.
Flammability class
IEC 60332-1 (F2).
Quality system
EN ISO 9001.
Environmental system
The activities at our plant in Grimsås are certified to ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
H03VVH2-F will be delivered in lengths of 100 to 500 m. The drum is marked with manufacturer, type of cable and length.
