LANmark 86x86 Wallplate 1 Snap-In White

Description

Description

Standards

  • International
    ISO/IEC 11801

Application

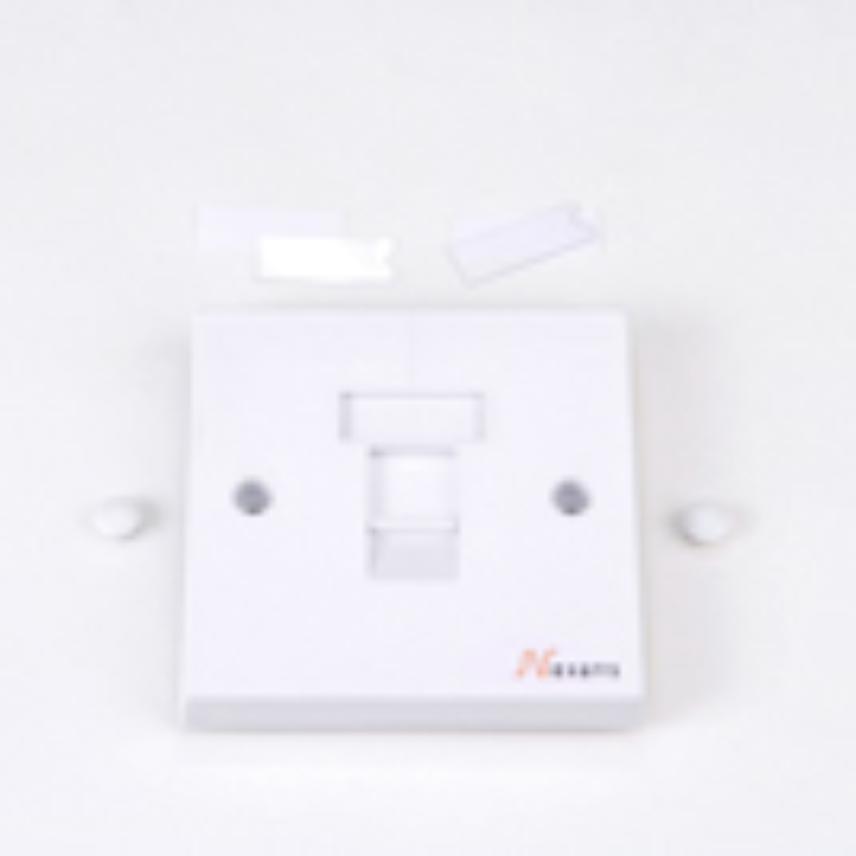

This UK style wallplate is designed to accommodate one LANmark Snap-In connector. It has standard 86 x 86 mm UK dimensions.

A two and four port version are also available (N423.862 / N423.864) - please refer to the specific datasheets.

Design

Each port is equipped with a spring loaded shutter which protects installed RJ45 connectors against dust when no patch cord is inserted. The wallplate comes in glossy white finish and has a protective labelling window above the port.

The plastic material is UL 94V-0.

Installation

The LANmark Snap-In connector can be easily inserted in the wallplate with a simple one-click operation.

The wallplate is supplied with 2 screws for mounting on the wall or containment. A set of 2 white caps is included to cover the screws which enhances the appearance of the finished wall outlet.

The product is individually bagged and comes in boxes of 100 pcs.

Characteristics

Characteristics

Dimensional characteristics

Dimensional characteristics

Depth
14 mm
Height
86 mm
Width
86 mm
