LANmark ZD box 6 Snap-In White

Description

Description

Application

Designed for use as consolidation points, zone distribution boxes significantly improve the flexibility of desk locations in open office environments. They are particularly useful in offices where frequent relocation of outlets in the work area is required.

Design

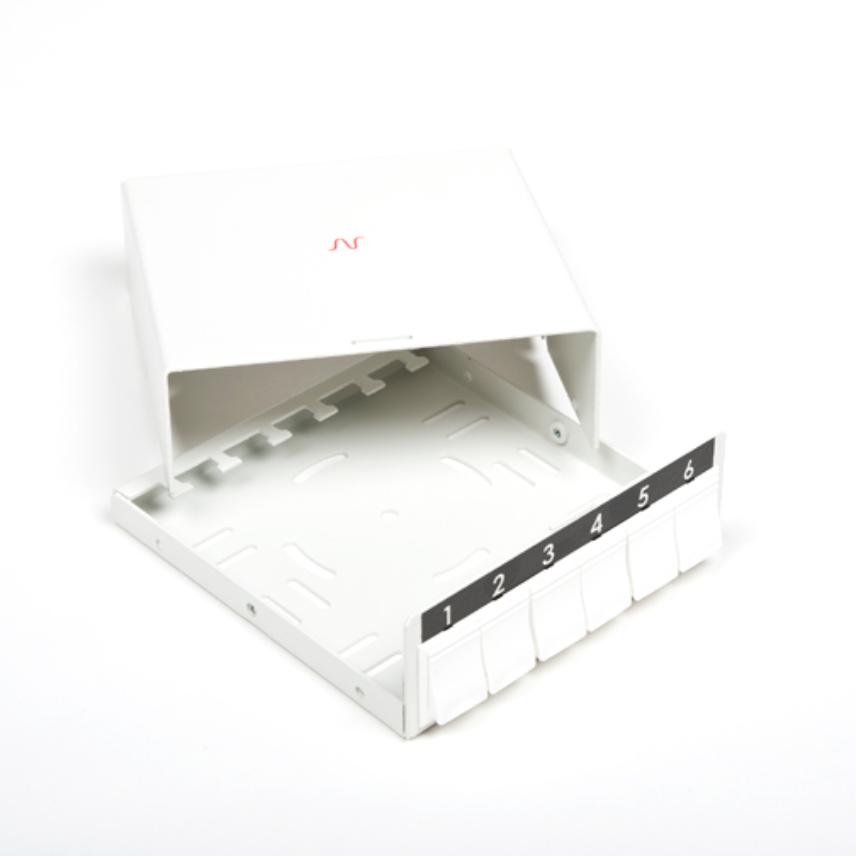

This ZD box has 6 numbered ports with shutters and can accomodate all LANmark snap-in connectors.

The box provides cable entry from the back and offers tie-wrap strain relief. It is supplied with a self-adhesive foam strip for protection against dust entry.

The ZD box is supplied as standard in white. A black version is available on request.

Installation

The box is easy to install on walls, under raised floors or in ceiling voids, due to its multiple mounting features, including standard European 45 x 45 mm grid dimensions.

It is equipped with an earthing point and with fasteners to fix the lid to the base.

Dimensions 6 port ZD Box

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Colour
White RAL 9002
Material
Steel

Dimensional characteristics

Dimensional characteristics

Approximate weight per piece
0.45 kg
Depth
125 mm
Height
42 mm
Width
120 mm

Usage characteristics

Usage characteristics

Field of application
Fixed installations
Number of ports
6
Packaging
-

Resources
