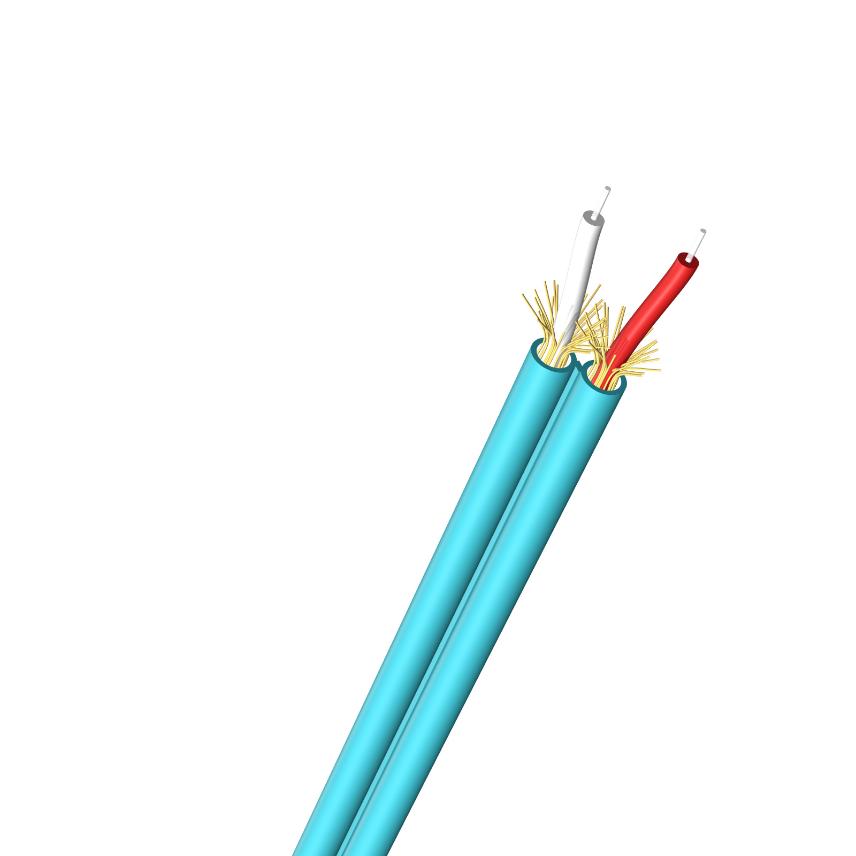

LANmark-OF ZC (2,0mm) 2x Multimode 50/125 OM3 LSZH Aqua

Description

Description

Standards

  • International
    ISO/IEC 11801

Application

LANmark-OF ZC optical fibre cables have been designed for applications where a high level of installation, environmental and optical performance is required. The ZipCord range is most suitable for direct termination in patch assembly and in risers and horizontal cabling.

The majority of the tight buffered cables are suitable for both internal & external environments and are all dielectric with excellent flame retardance

Applications support :

  • FDDI 100 Mbps
  • Ethernet 10 base FL
  • Fast Ethernet 100 base FX
  • Gbit Ethernet 1000 base SX/LX
  • 10Gbit Ethernet 10000 base SX(*)
  • Fibre Channel 1.0625 Gbps
  • ATM 155 Mbps
  • ATM 622 Mbps

(*) in accordance with IEEE 802.3ae

Performance

LANmark-OF Tight Buffered optical fibre cables are available with standard multimode & singlemode fibres whilst the LANmark-OFxt ranges are supplied with Laser Optimised multimode fibres offering extended application distances for Gigabit Ethernet.

Construction

Legend accompanying the cross section drawing:

  1. 900 µm tight buffered fibre
  2. Aramid yarns reinforcement
  3. Flame retardant halogen free outer sheath

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Type of cable
Zip Cord (ZC)
Material of filler / inner sheath
Aramid yarn
Outer sheath
LSZH-FR
Fiber optic type
OM3 50/125

Dimensional characteristics

Dimensional characteristics

Number of optical fibres
2
Height
2 mm
Width
4 mm
Approximate weight
6 kg/km

Mechanical characteristics

Mechanical characteristics

Maximum pulling force by laying
0.1 kN
Maximum permanent tensile load
5 kN
Crush resistance (IEC 60794-1-E3)
100 N/cm

Usage characteristics

Usage characteristics

Installation type
Indoor
Minimum static operating bending radius
30 mm
Ambient installation temperature, range
0 ... 40 °C
Operating temperature, range
-10 ... 60 °C
Storage temperature, range
-30 ... 60 °C
