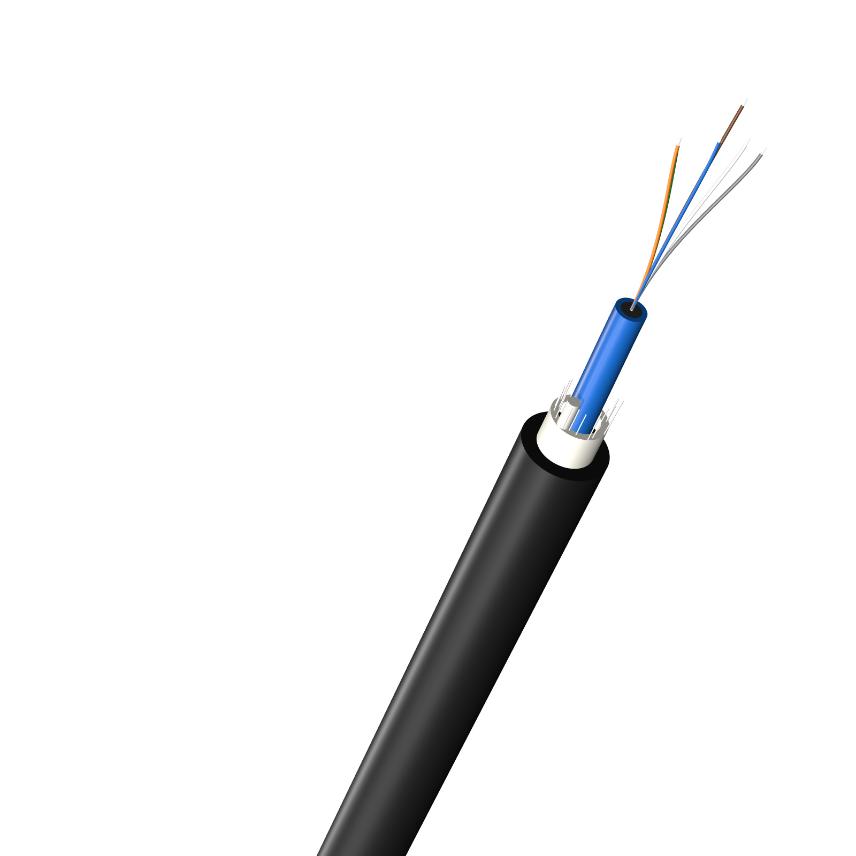

LANmark-OF UG 6x Multimode 50/125 OM3 PE Black

Description and Application

The cable consists of an unitube or multitube loose tube structure surrounded by watertight glass yarns and a PEHD jacket.

The cable is watertight due to the gel in the loose tube and the watertight yarns. The glass yarns also provide rodent protection.

The reinforced cable can be installed outdoor in a duct by pulling or by blowing.  The PEHD jacket has excellent friction properties for this installation type.

The UG-type has one unitube with 12 or 24 fibres.  The MG-range contains multiple loose tubes.  Each loose tube has 12 fibres.  The maximum fibre capacity is 144 fibres for the MG-family.

Diameter of the fibres is 250 um.  Termination of these fibres is done with splicing of pigtails.

Construction

Legend accompanying the cross section drawing:

1. Loose tube
2. 250 µm fibres
3. Gel
4. Reinforcing waterblocking glass yarns
5. Ripcord
6. FRP strength element
7. Outer sheath of PE

Features

• Outdoor cable for installation in a duct by pulling or blowing
• Designed for termination by splicing
• Unitube or multitube cable around central strength element
• Full dielectric design
• Waterproof structure
• Rodent retardant
• Wide temperature range
