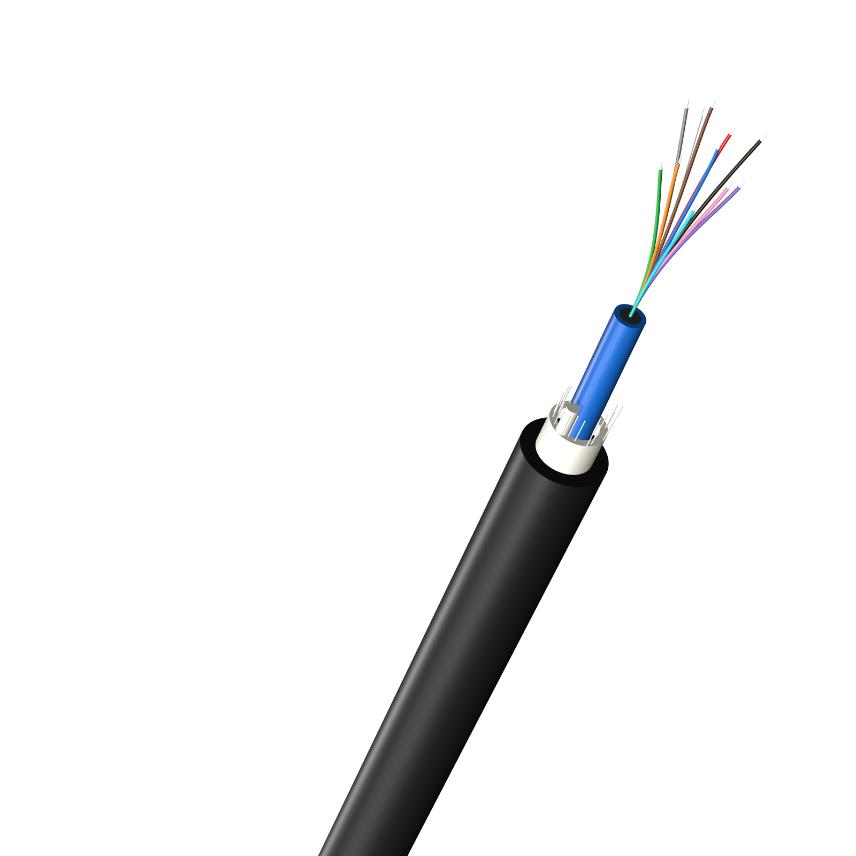

LANmark-OF UG 12x Multimode 50/125 OM3 PE Black

Description

Description

Standards

  • International
    ISO/IEC 11801

Description and Application

The cable consists of a loose tube structure with watertight glass yarns and a PEHD jacket.

The cable is watertight due to the gel in the loose tube and the watertight yarns. The glass yarns also provide rodent protection.

The reinforced cable can be installed outdoor in a duct by pulling or by blowing.  The PEHD jacket has excellent friction properties for this installation type.

The UG-type has one unitube with 12 or 24 fibres (250µm).

Termination of these fibres is done with splicing of pigtails.



Construction

Legend accompanying the cross section drawing:

  • 1. Loose Tube
  • 2. 250 µm fibres
  • 3. Jelly
  • 4. Reinforcing watertight glass yarns
  • 5. Rip cord
  • 6. FRP reinforcement
  • 7. PE Outer sheath



Features

  • Outdoor cable for installation in a duct by pulling or blowing
  • Designed for termination by splicing
  • Unitube  cable with strength element
  • Full dielectric design
  • Waterproof structure
  • Rodent retardant
  • Wide temperature range





Characteristics

Characteristics

Construction characteristics

Construction characteristics

Fiber optic type
OM3 50/125

Dimensional characteristics

Dimensional characteristics

Nominal outer diameter
6.9 mm
Number of optical fibres
12
Approximate weight
40 kg/km

Mechanical characteristics

Mechanical characteristics

Maximum pulling force (IEC 60794-1-2-E1)
1800 N
Maximum operating pulling force
500 N
Crush resistance (IEC 60794-1-E3)
200 N/cm
Mechanical resistance to impacts
1 impact of 3 N.m

Usage characteristics

Usage characteristics

Minimum dynamic operating bending radius
150.0 mm
Minimum static operating bending radius
110 mm
Ambient installation temperature, range
0 ... 40 °C
Operating temperature, range
-30 ... 70 °C
Storage temperature, range
-30 ... 70 °C
