LANmark-OF Zone Distribution Box

Products

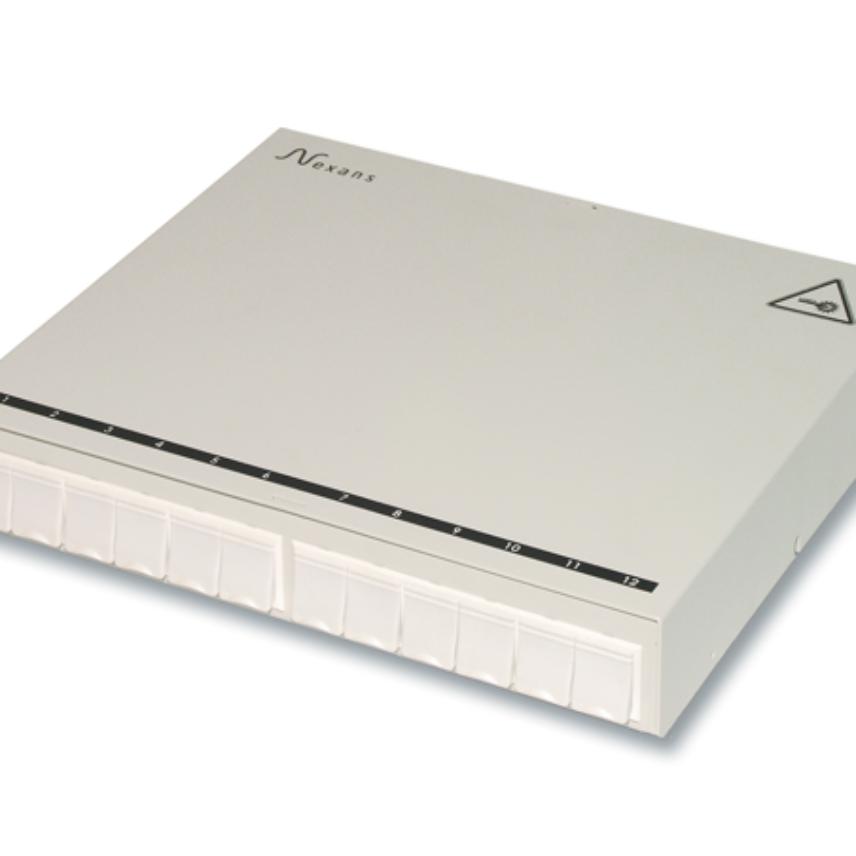

LANmark-OF Modular Zone Distribution Box

Nexans ref. N521.630 - Country ref. 6916929

  • Packaging: Box (Unit)



Description

Description

Standards

  • International
    ISO/IEC 11801

Application

Designed for the installation of zone wiring, fibre to the office and to the desk

Maximum capacity of 12 duplex LC or 6 duplex SC adaptors.

Installation

The LANmark-OF zone distribution box is easy to install in the ceiling, false floor or on the wall with four fixing points in the bottom plate.

There is a slot in the rear to fix a cable or a Pre-Term.  It has a diameter of 20.5mm, compatible with PG13 cable glands.

Small Nexans splice trays  (N890.095, N890.096 and N890.097) can be fixed inside the tray.

Printed numbers are on the cover for port identification.

Characteristics

Characteristics

Dimensional characteristics

Dimensional characteristics

Depth
200 mm
Height
40 mm
Width
230 mm

Usage characteristics

Usage characteristics

Field of application
Indoor
Packaging
Box
