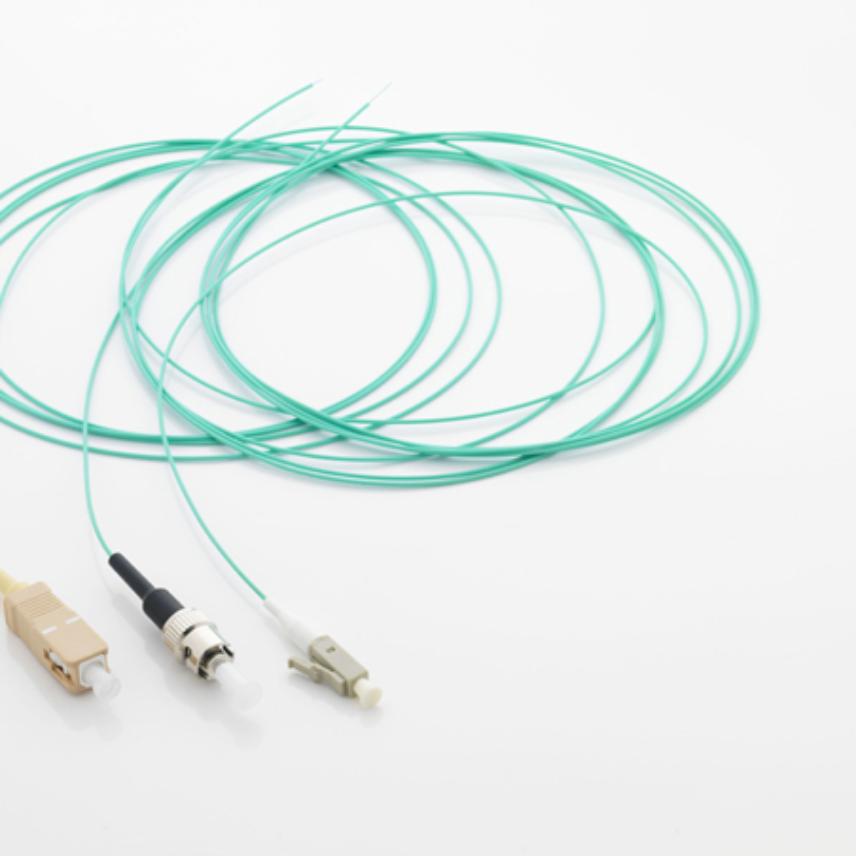

LANmark-OF Singlemode G657B Pigtail

Pigtail family characteristics

• Fibre assembly to terminate cable with fusion splicing
• Available with ST, SC, LC and MTRJ connectors
• Suitable for use in patch panels using splice cassettes.
• The pigtails can be stripped in one action over a long distance of up to 1 m.
• Insertion loss: typical value is 0.1 dB, maximum value is 0.3 dB.
• The singlemode version has G657B fibre inside.
• Cable colour: yellow.

Compatibility and installation practices

• Maxistrip pigtails are compatible with heat shrink splice cassettes (N890.020) with heat shrink protections (N890.021).
• Maxistrip pigtails are compatible with splice cassettes (N890.010) for Aluminium protections (N890.003).
• Maxistrip pigtails are recommended to be used with loose tube cables, i.e. with 250 um fibres.  When using tight buffer cables (900 um fibres) additional stress on the maxistrip pigtails should be limited as much as possible.
• For proper alignment in the fusion splice tool the pigtail is fixed on the 250 um coating after stripping the 900 um coating.  Fixing the pigtail on the 900 um coating will lead to improper alignment.
• In addition the pigtail needs to be stripped till the cladding around the splice area before insertion in the splice tool.

Guarantuees

Nexans LANmark-OF pigtails are covered by Nexans warranty as described in the General Terms and Conditions.
