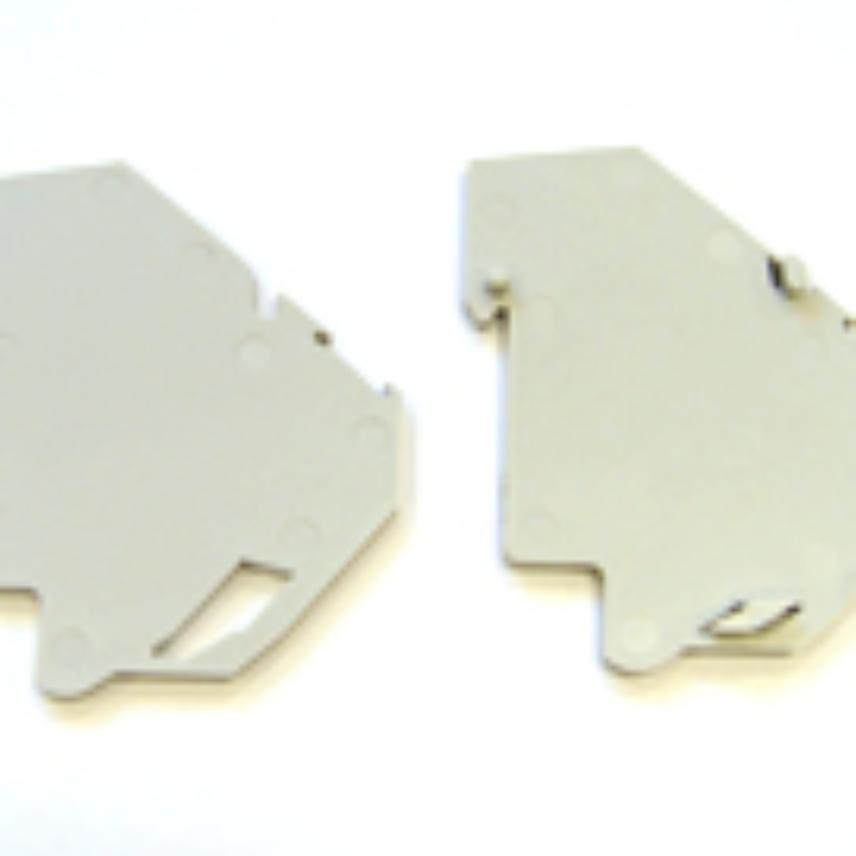

LANmark Industry side cover DIN-Rail mount Category 7A grey
LANmark Industry side cover DIN-Rail mount Category 7A grey
- For LANmark Industry DIN-Rail mount Cat 7/7A GG45 (35mm)
- Easy installation, without tool
- One right and one left cover
- Suitable for one DIN-Rail mount or a row of DIN-Rail mounts
- Nexans ref. : N20i.003
- Country ref. : 6916971
- EAN : 7045210057744
Description
Description
Standards
-
ProductISO/IEC 24702
-
InternationalISO/IEC 11801
LANmark Industry side covers for DIN-Rail Mount Cat 7/7A GG45 EVO. These covers can be fitted on each side of a single (or row of) DIN-Rail Mount GG45 connectors. No tools are required.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector type
Snap-In
Screen
No
Cable entry
From the top or the bottom
Colour
Grey
Material
ABS
Dimensional characteristics
Dimensional characteristics
Length cable end on inner side
0 mm
Number of cables
0
Height
77.8 mm
Width
3 mm
Depth
65 mm
Wall thickness
3 mm
Approximate weight per piece
0.02 kg
Dimensions of screw
N/A
Number of screws
0
Electrical characteristics
Electrical characteristics
Maximal operating frequency
0 MHz
Characteristic impedance
0 Ohm
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Low
Usage characteristics
Usage characteristics
Component function
Cabling and Connectivity solutions
Field of application
Industrial installations
Number of ports
0
Category
N/A
Electro magnetic interference resistance
No
Packaging
Plastic bag
Minimum operating temperature
0 °C
Maximum operating temperature
70 °C
Water proof
No
RoHS compliant
Yes
