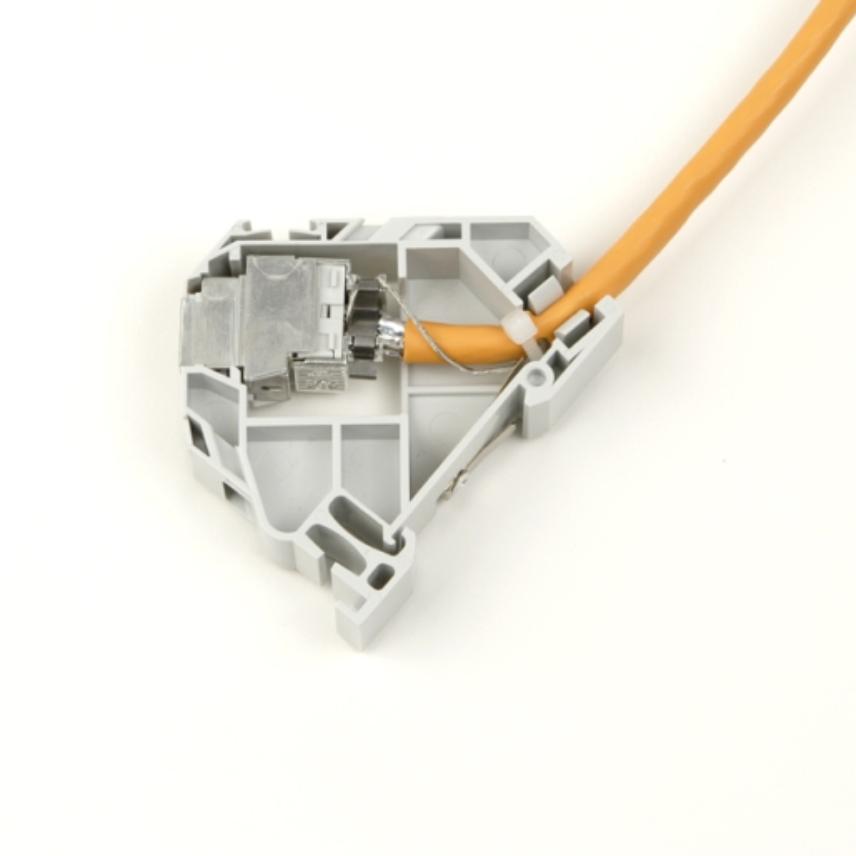

LANmark Industry module DIN-rail mount with 1 Snap-In Category 6A grey

Description

Description

Standards

  • Product
    ISO/IEC 24702
  • International
    ISO/IEC 11801

Application
The LANmark Industry DIN-Rail mount is designed to enable the installation of LANmark-6A Snap-in data connectors in industrial cabinets fitted with a 35mm DIN-Rail. Several DIN-Rail mounts can be joined together to form a row. The LANmark-6A connector exceeds the requirements of the ISO/IEC 11801. As such it supports all data applications defined for Cat 5, Cat 5e, Cat.6 and Cat 6A, such as:

  • 10baseT
  • Fast Ethernet
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
  • 155 ATM
  • 622 ATM
  • 1.2 ATM
  • Industrial Ethernet

Performance
The LANmark-6A Snap-in connector has been designed to reach the highest performance in Category 6A. It has been tested as specified in the TIA/EIA-568-B.2-1, the IEC 60603-7-5 (screened) standards. Furthermore, it complies with the Terms and conditions for use of the EC Verified marking on generic cabling products, as certified by Delta independent testing.

Installation
The LANmark-6A Snap-in connector is designed to be terminated without punchdown tool. For fast and easy installation an optional comfort tool can be used.

  • Fast termination
  • Colour code : TSB568A & TSB568B
  • Can be used with all types of cables : UTP, F/UTP, SF/UTP and S/FTP
  • Accepts 24, 23 and 22 AWG cable, PUR, LSZH
  • For all LANmark industrial cables



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Connector type
RJ 45
Screen
Yes
Cable entry
From the top
Colour
Grey
Material
ABS

Dimensional characteristics

Dimensional characteristics

Length cable end on inner side
80 mm
Number of cables
1
Height
77.8 mm
Width
18 mm
Depth
65 mm
Wall thickness
1.6 mm
Approximate weight per piece
0.03 kg
Dimensions of screw
N/A
Number of screws
0

Electrical characteristics

Electrical characteristics

Maximal operating frequency
500 MHz
Characteristic impedance
100 Ohm

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Low

Usage characteristics

Usage characteristics

Component function
Cabling and Connectivity solutions
Field of application
Industrial installations
Number of ports
1
Category
Cat. 6A
Electro magnetic interference resistance
Yes
Packaging
Plastic bag
Minimum operating temperature
0 °C
Maximum operating temperature
70 °C
Water proof
No
RoHS compliant
Yes

Resources

Resources

Documentation

xls — 0 B
xls — 0 B

Selling & delivery Information

The LANmark-6A DIN-Rail Mount is fitted with a earth tag for termination of the cable drain wire / shield - to provide a grounding connection to the DIN-Rail. Please see installation guide. A set of covers for both sides of the module is also available (N20i.002).
