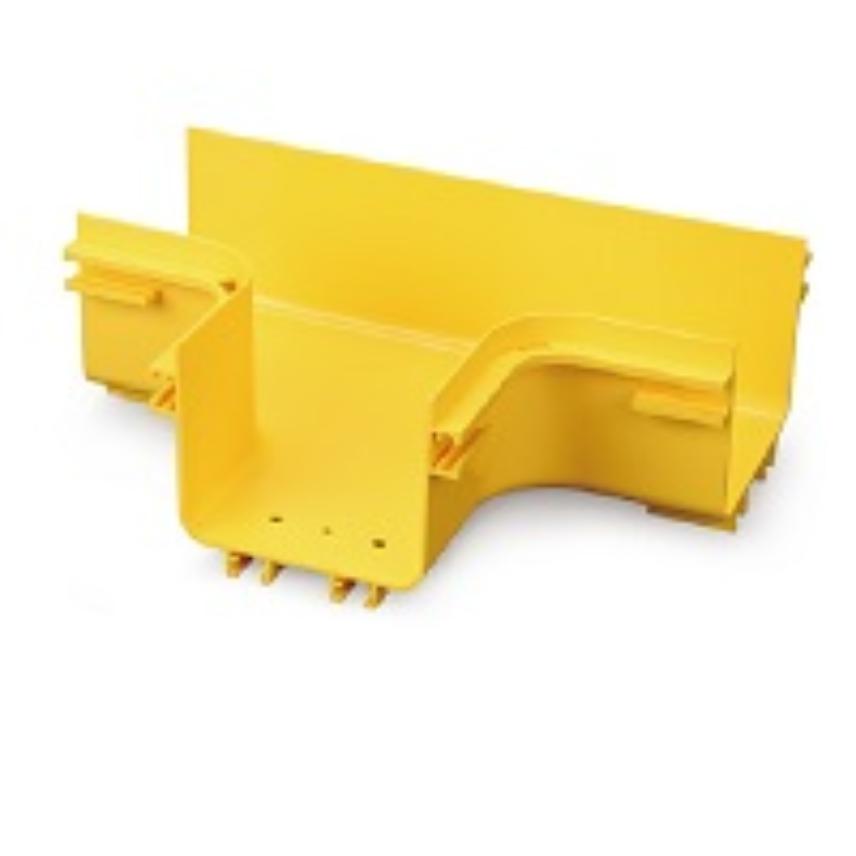

FIBREROUTE 120mm(4.75 inch) Equal Tee

• Pathway system designed for accommodation of data centre fibre cables
• Free of sharp edges
• Quick connect system with a wide range of fixtures and fittings
• High capacity pathway accommodating large volumes of cables with space for future expansion
• Equal Tee to provide branch connections in 120mm(4.75 inch) systems
• Tough, flame retardant ABS material

The Nexans Fibre Trunking System provides a dedicated pathway through data centre spaces and IT facilities for routing fibre cables.


The rigid channel with matching cover protects fibre optic cables from damage.


All components of the system are made of tough, fire retardant materials.

The system components have a smooth inner surface to ensure a safe path for fibre optic cables and feature internal radius management to facilitate the maintenance of bend radii for cables and patch cords.

The Equal Tee is used to create branches in 120mm(4.75 inch) channels. This form of interconnection is widely adopted in data centre designs compliant to ISO/IEC 11801-5, EN 50173-5 or EN 50600-2-4 within a ZD to create connections between rows.

All components of the system including the covers can be installed and uninstalled without special tools.

Size:

Depth  117mm(4.6”)

Length 352mm(13.8”)

Width 157mm(6.2”)
