TBU LSZH 8x50/125 OM4 SP1724 BK

This tight buffer cable is designed for indoor/outdoor installation.

This cable has an outstanding fire behaviour.

Direct connectorization is made easy with 900µm buffered structure.

This cable can be operated under a large temperature range.

Design

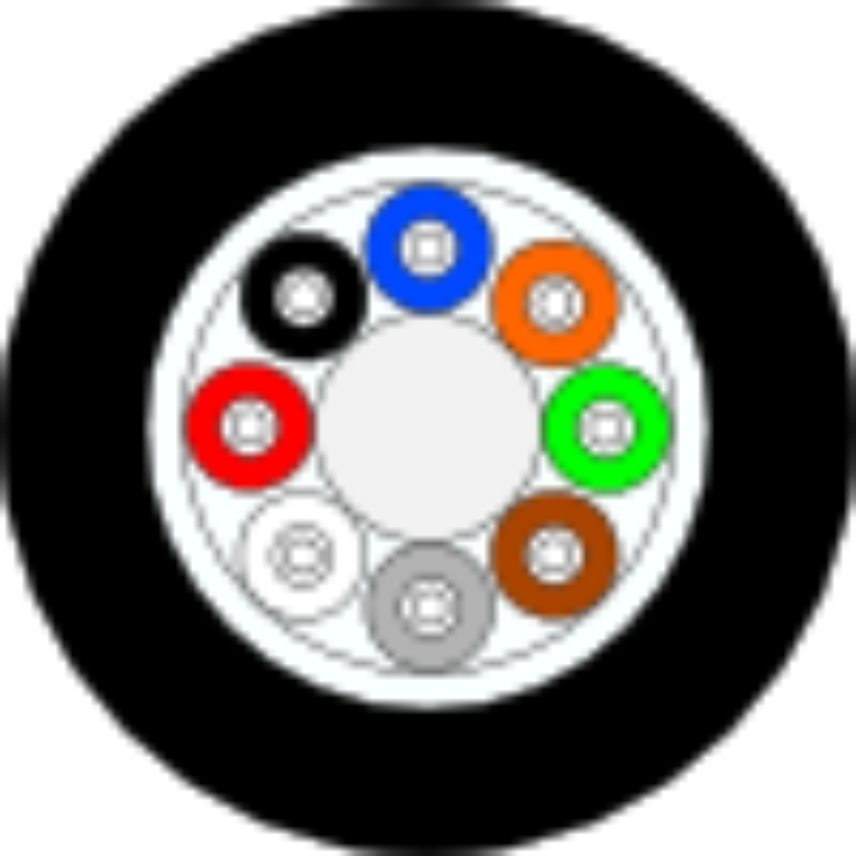

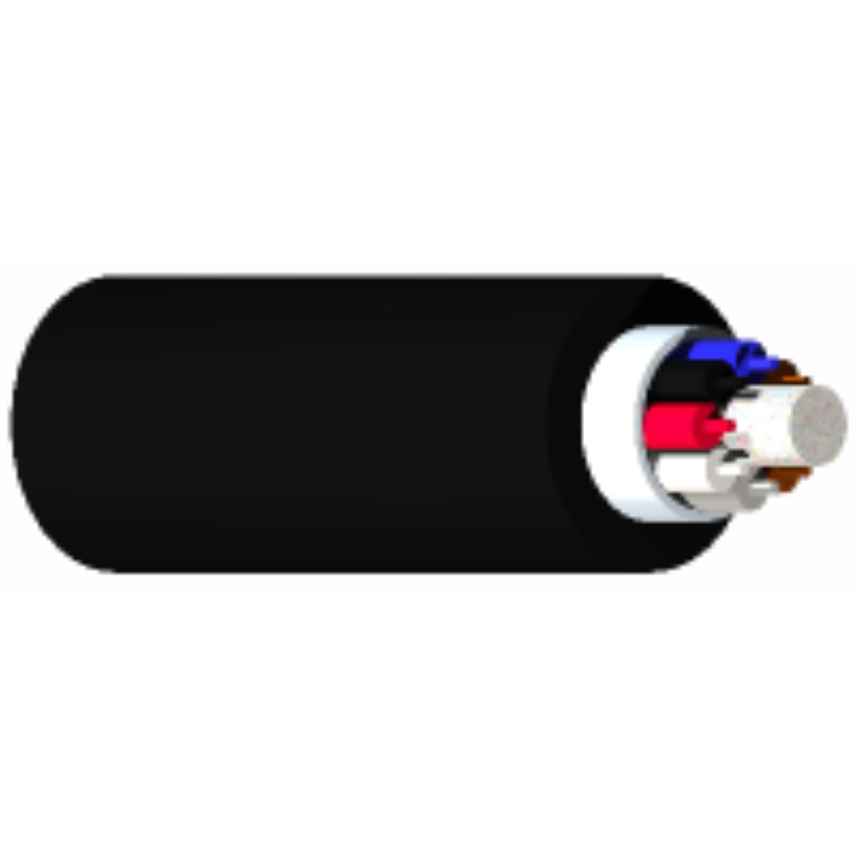

The TBU LSZH* SP1724 cable has a central strength member (FRP: Fibre Reinforced Plastic), with 8 900µm buffered structure around. The design is reinforced by a layer of  glass yarns and a LSZH* sheath.

Fibre type

The TBU LSZH* SP1724 cable is available with multimode and singlemode fibres.

Technical performances

The tight buffer cable performances are specified in the following tables.

Additional details

This cable is provided with a black sheath, other sheath colours are also available. Long exposure to UV with these other colours could generate colour fading.

Euroclass

Dca S1 d0 a1

* LSZH: Low Smoke Zero Halogen.
