G96-9 QINI
G96-9 QINI
Type QINI is a loose tube fibre optical cable. The cable type is intended for use in regional, urban, and area property networks.
Read more- Nexans ref. : 10575837
- Country ref. : 1007654
- EAN : 7330000141797
Description
Description
Standards
-
InternationalEN 187000; EN 187100; EN 187101; EN 188000; EN 188100; IEC 60793; IEC 60794; ITU-T Rec. G.650; ITU-T Rec. G.652
-
NationalSS 424 14 37

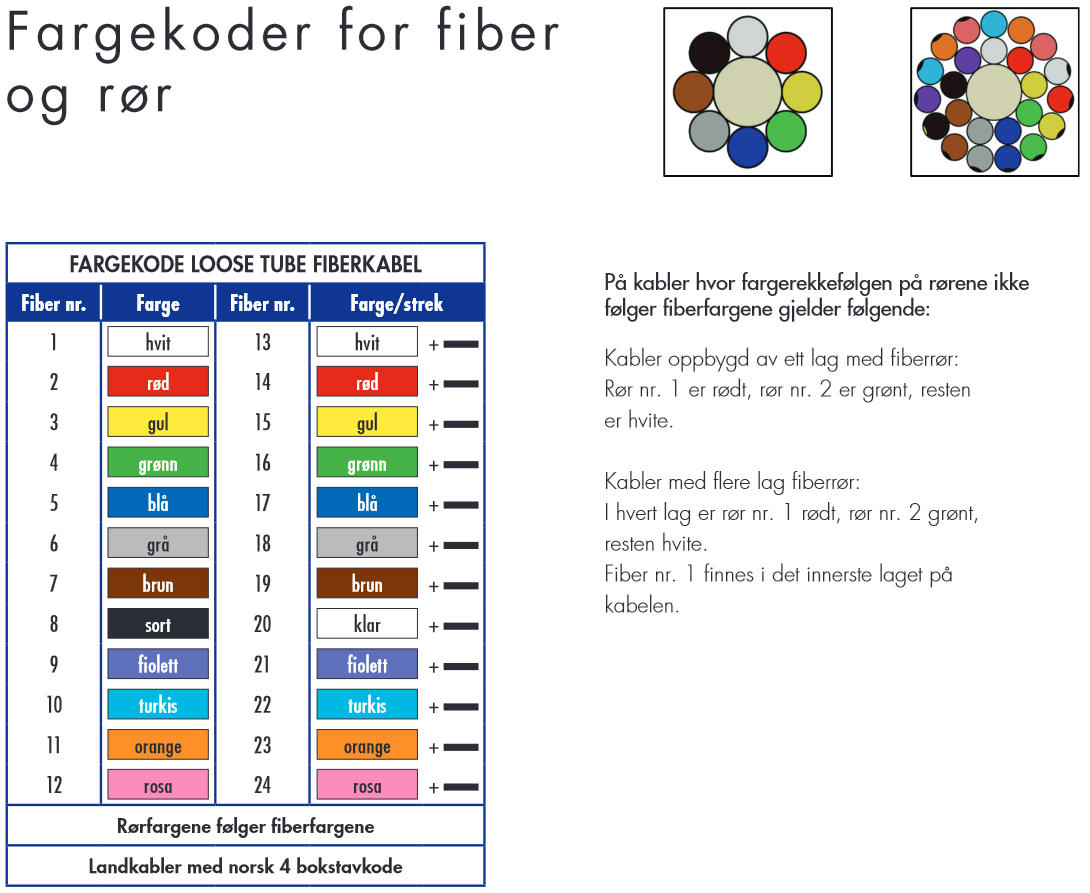

The cable type is longitudinally water-blocked and intended for indoor/outdoor use. The design can incorporate 12 to 144 fibres in loose tubes. The individually coloured fibres are tubed in groups of maximum 12, and stranded onto a central dielectric fibre reinforced strength member (FRP). The cable type is longitudinal water-blocked through the use of water-swellable materials and sheathed with double layer halogen-free flame-retardant polymeric compound. In between the sheaths there is a corrugated steel tape for armour and rodent protection. QINI meets the requirements for CPR Dca-s2d2a2. The cable emits no corrosive gases and has low smoke production during fire.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
Declaration of Performance
- Declaration of Performance n� : 1000866-SEGR
- Certification Date : 2/20/23
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0366
- Declared performance : Dca-s2,d2,a2
