QXAI 2,5 mm, Optical Fibre Cable - Indoor/Outdoor Cable
QXAI 2,5 mm, Optical Fibre Cable - Indoor/Outdoor Cable
QXAI is loose tube fibre optical cable. The cable type is intended for use in regional, urban, area and property networks.
Read moreG12-9 QXAI
Nexans ref. 10564434 - Country ref. 1007414
- Packaging: Drum (2000m)
- Nominal outer diameter: 12.6 mm
- Number of optical fibres: 12
G144-9 QXAI
Nexans ref. 10564435 - Country ref. 1007416
- Nominal outer diameter: 17.6 mm
- Number of optical fibres: 144
G24-9 QXAI
Nexans ref. 10560702 - Country ref. 1007175
- Packaging: Drum (2000m)
- Nominal outer diameter: 12.6 mm
- Number of optical fibres: 24
G48-9 QXAI
Nexans ref. 10560703 - Country ref. 1007176
- Packaging: Drum (2000m)
- Nominal outer diameter: 12.6 mm
- Number of optical fibres: 48
G96-9 QXAI
Nexans ref. 10560704 - Country ref. 1007177
- Packaging: Drum (2000m)
- Nominal outer diameter: 14.0 mm
- Number of optical fibres: 96
Description
Description
Standards
-
ProductIEC 60794
-
TestEN 13501-6; EN 60754-2; EN 61034; IEC 60793
-
InternationalITU-T G. 657

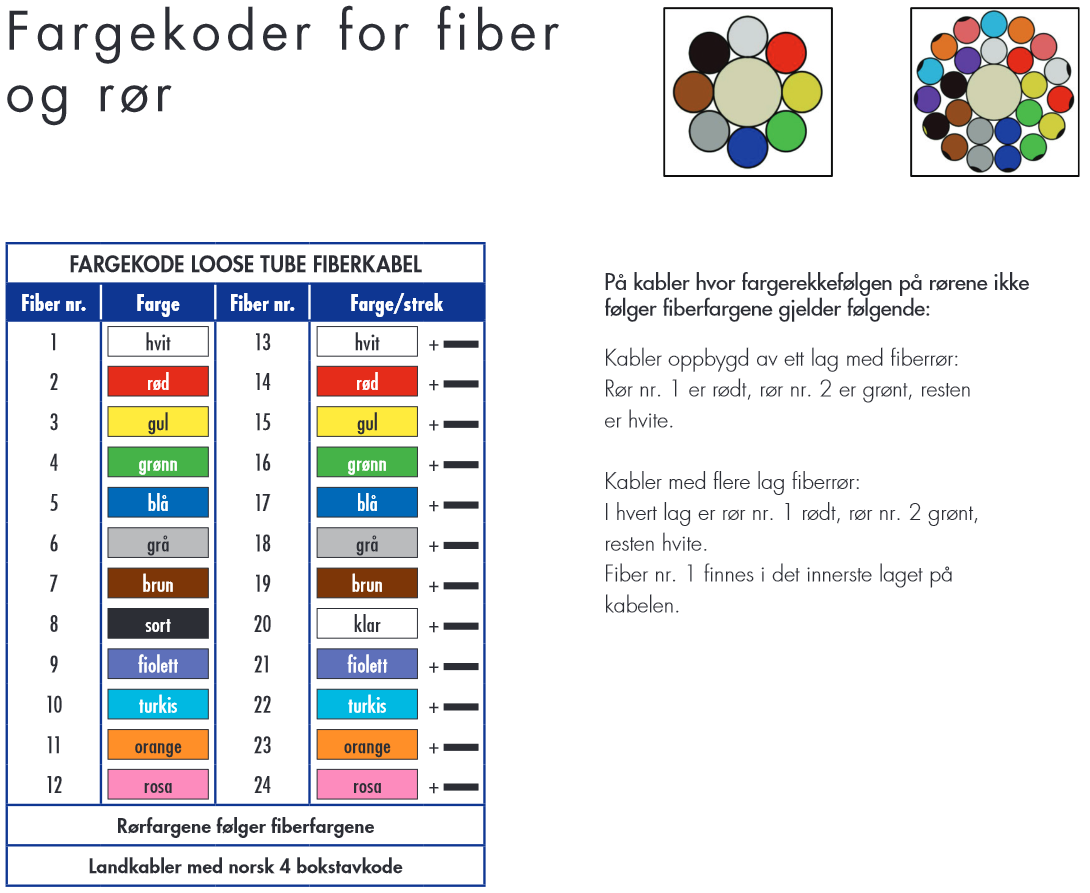

The cable type is longitudinally water-blocked and intended for combined indoor as well as outdoor use (in ducts). The design can incorporate 12 to 288 fibres in 2.5 mm loose tubes. The individually coloured fibres are tubed in groups of 12, and stranded onto a central dielectric fibre reinforced strength member (FRP). The cable type is longitudinal water-blocked through the use of water-swellable yarn, rodent protected by use of glass yarn and sheathed with halogen-free flame-retardant polymeric compound. QXAI meets the requirements for CPR Eca.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
