G24 G652D/G657A1 QXXI SLIM (CT)
G24 G652D/G657A1 QXXI SLIM (CT)

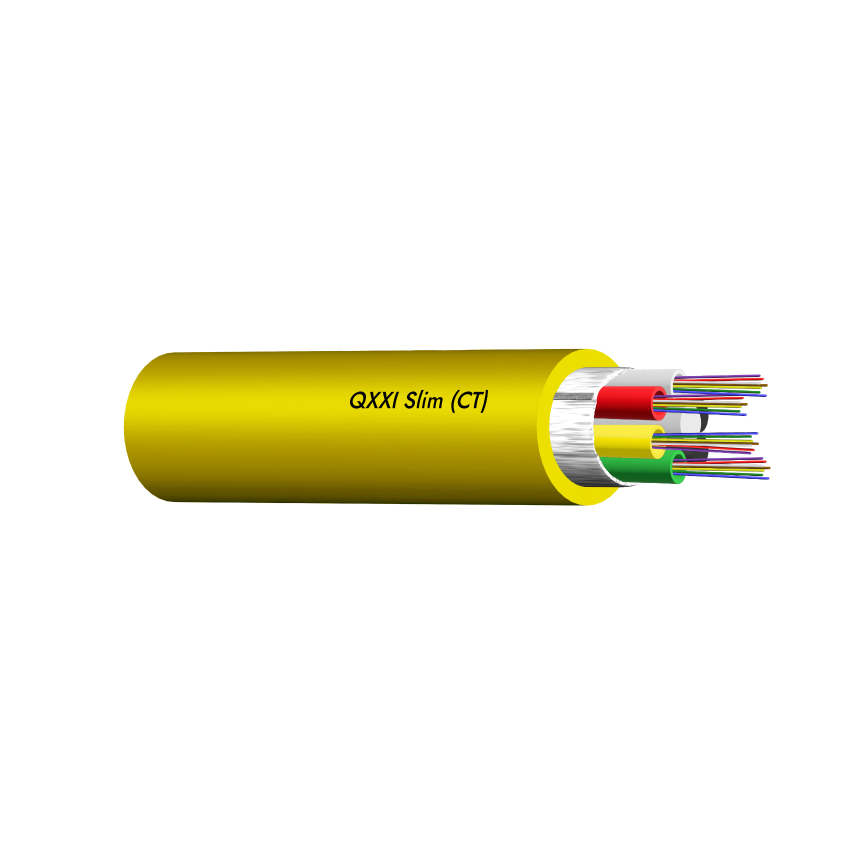

QXXI is loose tube fibre optical cable. The cable type is intended for use in regional, urban, area and property networks.
Read more- Nexans ref. : 10579901
- Country ref. : 1007697
- EAN : 7330000191693
Description
Description
Standards
-
ProductIEC 60794
-
TestEN 13501-6; EN 60754-2; EN 61034; IEC 60793
-
InternationalITU-T G. 657
The cable type is longitudinally water-blocked and intended for combined indoor as well as outdoor use (in ducts). The design can incorporate 12 to 96 fibres in 1.6 mm loose tubes. The individually coloured fibres are tubed in groups of 12, and stranded onto a central dielectric fibre reinforced strength member (FRP). The cable type is longitudinal water-blocked through the use of water-swellable yarn and sheathed with halogen-free flame-retardant polymeric compound. QXXI meets the requirements for CPR Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Color Code Chart
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
Declaration of Performance
- Declaration of Performance n� : 1000810-SEGR
- Certification Date : 4/8/24
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 366
- Declared performance : Dca-s2,d2,a1
