Microcable 6x4SM SP1902 BLite³

Description

Description

Standards

  • Product
    EN 187000; IEC 60794

This compact cable is used for Access, Distribution, City Network and FTTx applications.It is designed to be quickly installed by blowing in micro-ducts.




Characteristics & Applications

  • High blowing distance due to the excellent friction properties of the outer sheath
  • Right balance between flexibility and rigidity
  • Easy installation with mid span access possibility
  • Easy micro bundle stripability
  • Central strength member reinforcement
  • All dielectric design
  • Waterproof structure

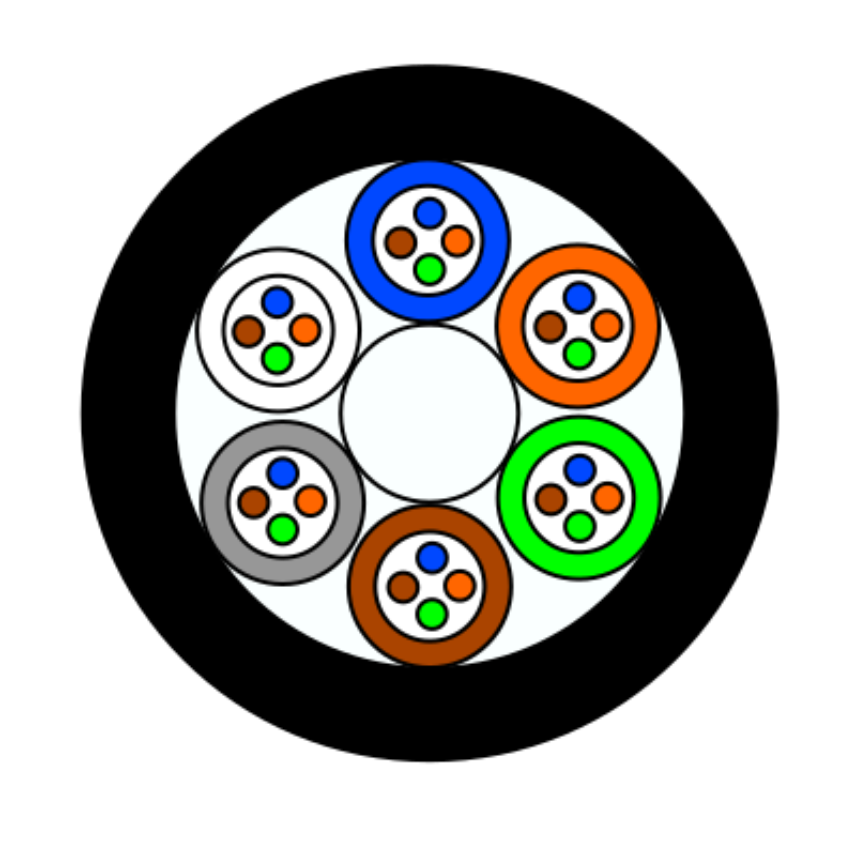

Construction

  • Jelly filled microbundles containing  coloured fibres
  • Central FRP strength member
  • Very Low friction outer sheath

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Fiber optic type
SM
Outer sheath
PA
Armour type
Unarmoured
Construction type
Multibundle
Strength member
FRP
Metal free
Yes
Colour
Black

Dimensional characteristics

Dimensional characteristics

Number of optical fibres
24
Number of tubes
6
Nominal outer diameter
3.5 mm
Approximate weight
10 kg/km

Mechanical characteristics

Mechanical characteristics

Maximum admissible traction load (Tm)
20 daN
Maximum tensile load during service (Tl)
10.0 daN
Crush resistance (IEC 60794-1-E3)
100 N/cm

Usage characteristics

Usage characteristics

Installation type
Outdoor - Microduct blowable
Ambient installation temperature, range
0 ... 40 °C
Operating temperature, range
-30 ... 70 °C
Storage temperature, range
-40 ... 70 °C
Bending factor when laying
70 (xD)
Bending factor when installed

Resources

Resources

Documentation

Selling & delivery Information

Standard Marking

Nexans - BLite³ MB - SPXXXX - FIBRE OPTIC CABLE - XX*YY - FB - TN - metric


XX = Fibre Count
YY = Fibre Type
FB = Produced in Frameries, Belgium
TN = Traceability Number
