Microcable 8x12SM SP1903 BLite³
Microcable 8x12SM SP1903 BLite³
- Nexans ref. : 10569121
- Country ref. : 1007484
- EAN : 5413404327003
Description
Description
Standards
-
ProductEN 187000; IEC 60794
This compact cable is used for Access, Distribution, City Network and FTTx applications.It is designed to be quickly installed by blowing in micro-ducts.
Characteristics & Applications
- High blowing distance due to the excellent friction properties of the outer sheath
- Right balance between flexibility and rigidity
- Easy installation with mid span access possibility
- Easy micro bundle stripability
- Central strength member reinforcement
- All dielectric design
- Waterproof structure

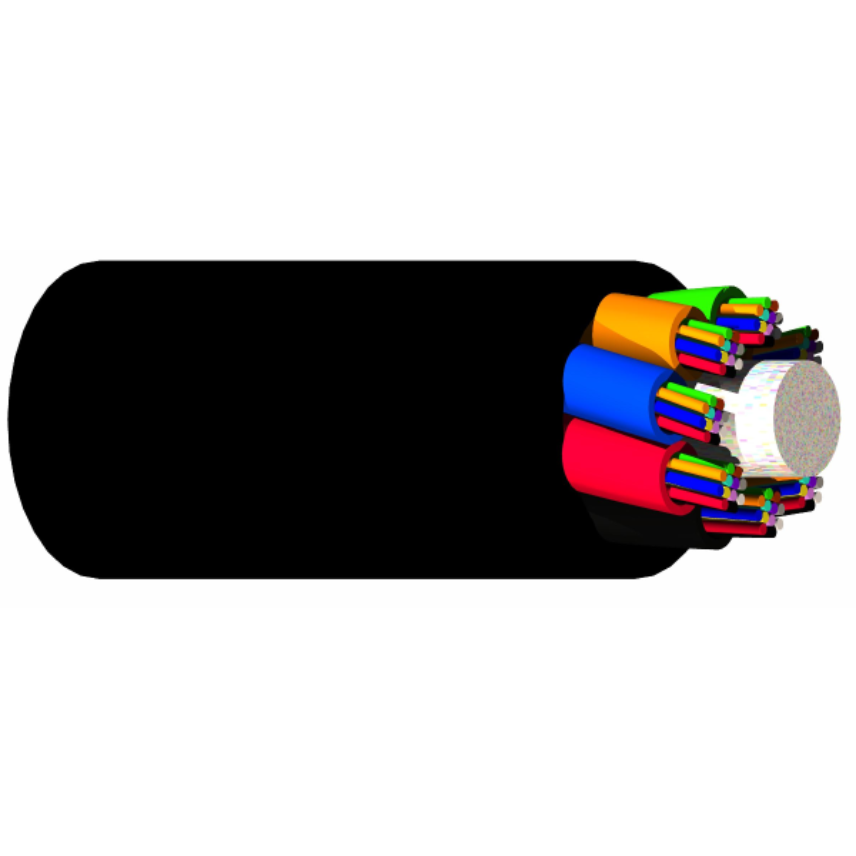

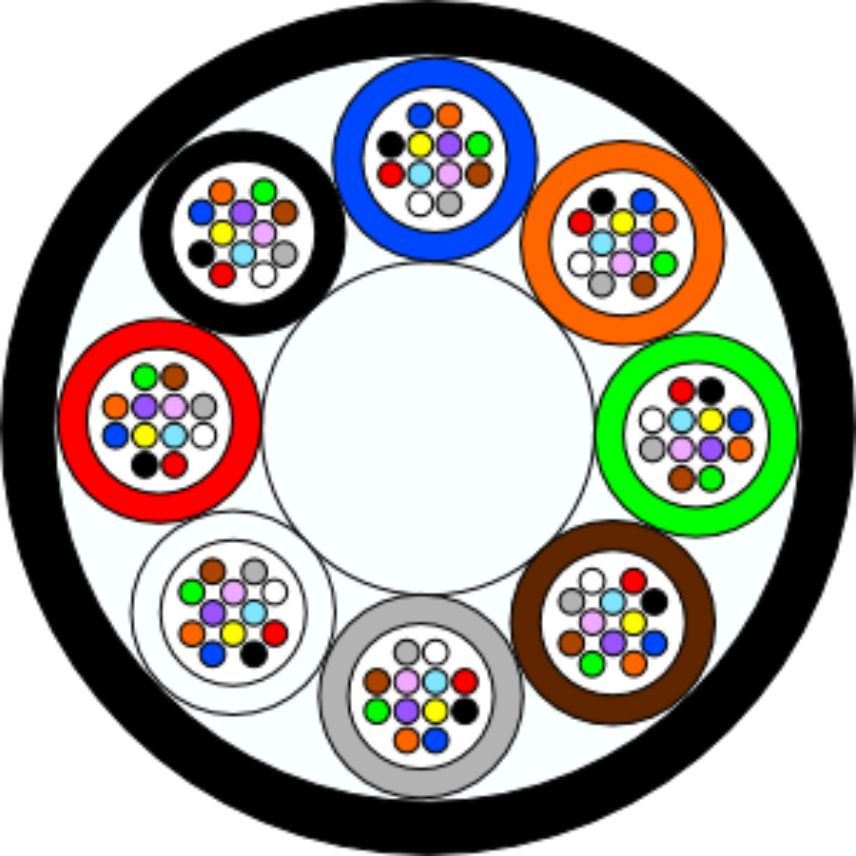

Construction
- Jelly filled microbundles containing coloured fibres
- Central FRP strength member
- Very Low friction outer sheath
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Fiber optic type
SM
Outer sheath
PA
Armour type
Unarmoured
Construction type
Multibundle
Strength member
FRP
Metal free
Yes
Colour
Black
Dimensional characteristics
Dimensional characteristics
Number of optical fibres
96
Number of tubes
8
Nominal outer diameter
5.7 mm
Approximate weight
31 kg/km
Mechanical characteristics
Mechanical characteristics
Maximum admissible traction load (Tm)
100 daN
Maximum tensile load during service (Tl)
20.0 daN
Crush resistance (IEC 60794-1-E3)
100 N/cm
Usage characteristics
Usage characteristics
Installation type
Outdoor - Microduct blowable
Ambient installation temperature, range
0 ... 40 °C
Operating temperature, range
-30 ... 70 °C
Storage temperature, range
-40 ... 70 °C
Bending factor when laying
20 (xD)
Bending factor when installed
-
Resources
Resources
Documentation
Leaflet - B-LITE3 Microcables
pdf — 3.0 MB
Selling & delivery Information
Standard Marking
Nexans - B-Lite³ - SPxxxx - FIBRE OPTIC CABLE - XX*YY - FB - TN - metric
XX = Fibre Count
YY = Fibre Type
FB = Produced in Frameries, Belgium
TN = Traceability Number
