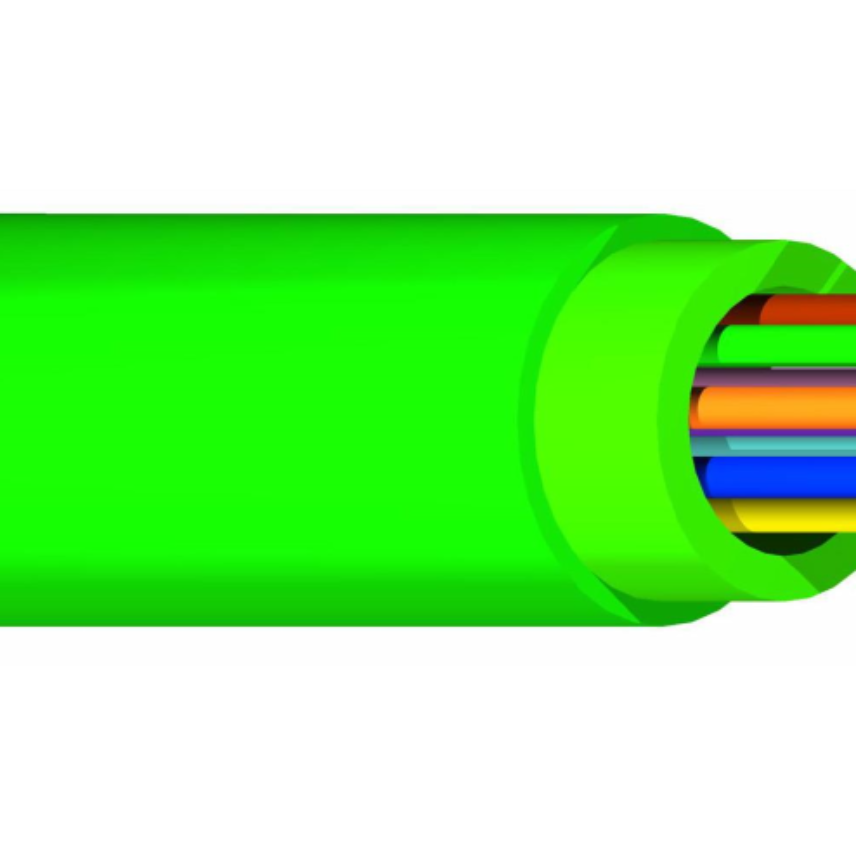

Microcable 1x12SM G657A1 SP1264 BLite Green
Microcable 1x12SM G657A1 SP1264 BLite Green
- Nexans ref. : 10214570
- Country ref. : 1007158
- EAN : 5420059923412
Description
Description
Standards
-
ProductEN 187000; IEC 60794
This unitube cable is used in the Access, Distribution, City Network and FTTx applications; it is designed to be easily installed designed for outdoor installation by blowing in microduct.
Characteristics & Applications
- High blowing distance due to the excellent friction properties of the outer sheath
- Right balance between flexibility and rigidity
- Aramid yarns reinforcement
- All dielectric design
- Waterproof structure
Fibre type
The cable is available with different fibre types.

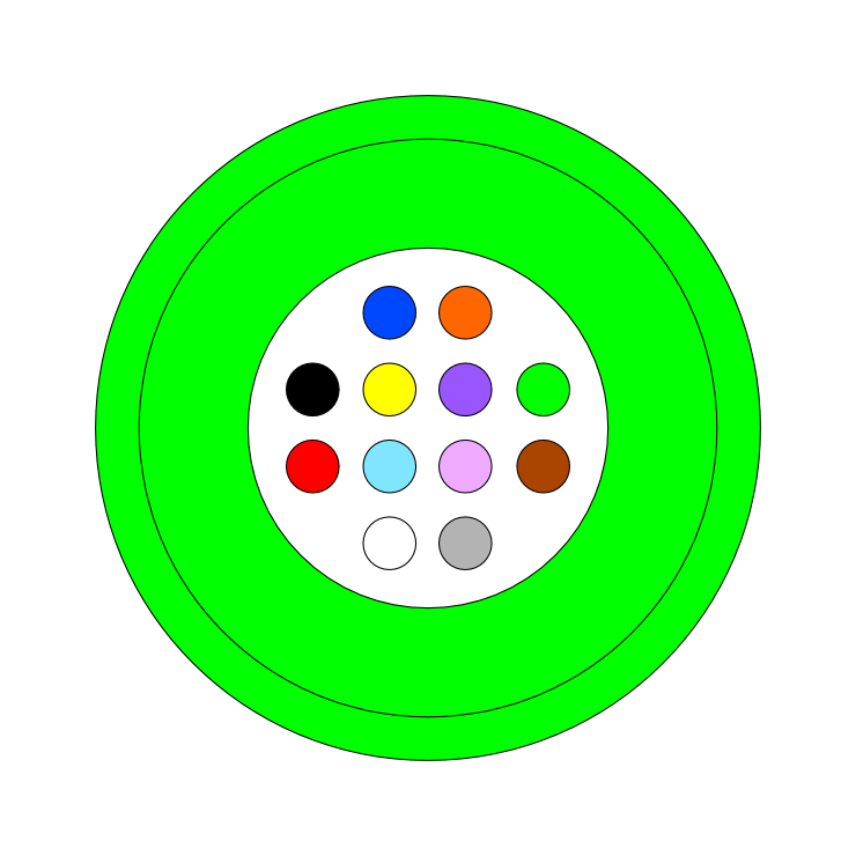

Construction
- Jelly filled dual wall tube
- Aramid yarns
- Low coefficient of friction sheath
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Fiber optic type
SM (G657.A1)
Outer sheath
HDPE
Construction type
Unitube
Metal free
Yes
Armour type
Aramid yarn
Colour
Green
Dimensional characteristics
Dimensional characteristics
Nominal outer diameter
2.5 mm
Number of optical fibres
12
Approximate weight
10 kg/km
Number of tubes
1
Mechanical characteristics
Mechanical characteristics
Maximum tensile load during service (Tl)
10.0 daN
Crush resistance (IEC 60794-1-E3)
200 N/cm
Maximum admissible traction load (Tm)
15 daN
Usage characteristics
Usage characteristics
Installation type
Outdoor - Microduct blowable
Installation temperature, range
0 ... 40 °C
Operating temperature, range
-30 ... 70 °C
Storage temperature, range
-40 ... 70 °C
Bending factor when laying
20 (xD)
Bending factor when installed
Resources
Resources
Selling & delivery Information
Standard Marking
Nexans - FIBRE OPTIC CABLE - B-Lite SPxxxx - XXxYY - FB - TN - metric
XX = Fibre Count
YY = Fibre Type
FB = Frameries, Belgium (manufacturing place)
TN = Traceability Number
