MELTMAT 1x3 m 1000W/230V
MELTMAT 1x3 m 1000W/230V

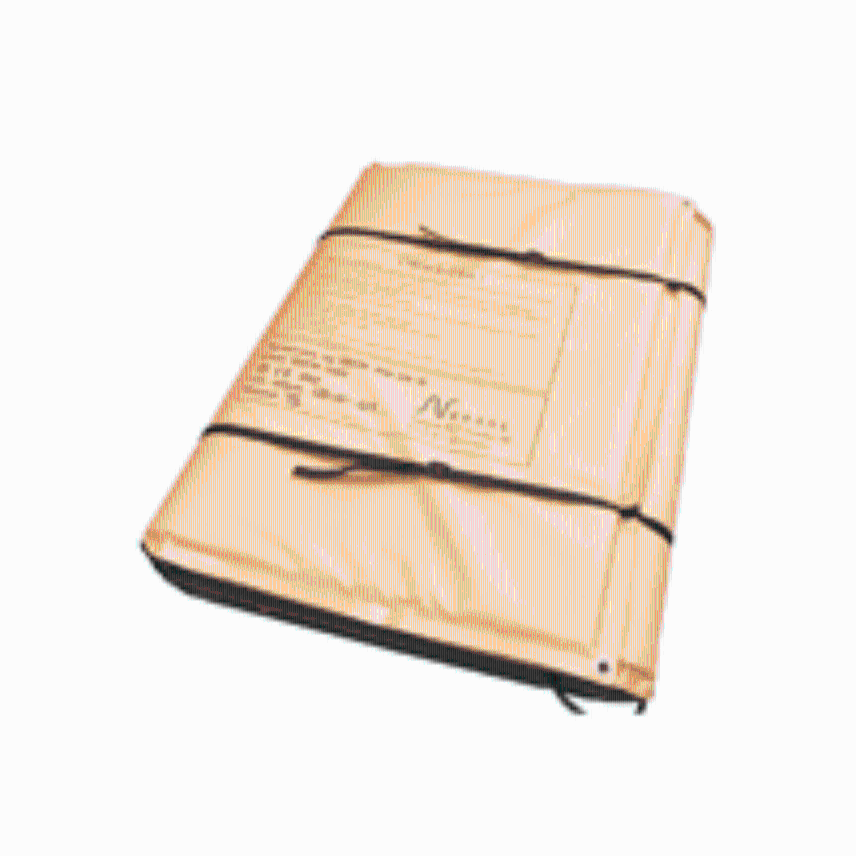

Heating cable mat for melting snow and ice and thawing ground.
Read more- Nexans ref. : 10229832
- Country ref. : 1008197
- EAN : 7045210072532
Description
Description
Standards
-
ProductIEC 60800
-
TestEN 50265; IEC 60332-1
Heating cable mat for thawing ground melting snow and ice. The mat is connected via the plug coming with the product to a standard 230V (Schuko) socket. The mat is particularly useful if you need to dig into the ground and to thaw the ground. It can also be used at entrances to remove snow and ice, to melt frozen pipes, or wells/similar.
The heating cable mat is manufactured using a special PVC compound integrated with a nylon woven net. The insulation in the mat (directing the heatflow downwards) is made of self-extinguishing foam plastic. The mat has a built in protection against overtemperature, and power will be interrupted if the temperture of the mat exceeds 60 degrees Celsius.
Length cold lead: 2,5 m
The mat is not intended for permanent installations, and the mat shall not have a permanent connection to the power supply.
Energy consumption is low and equals 24 kWh/day (approximately 8kWh/m²/day)
CE marked, compliant with EN 60335-1 and EN 62233
ATTENTION!
This product must be used exclusively for thawing and snow/ice melting applications. Follow the instructions printed on the product!
