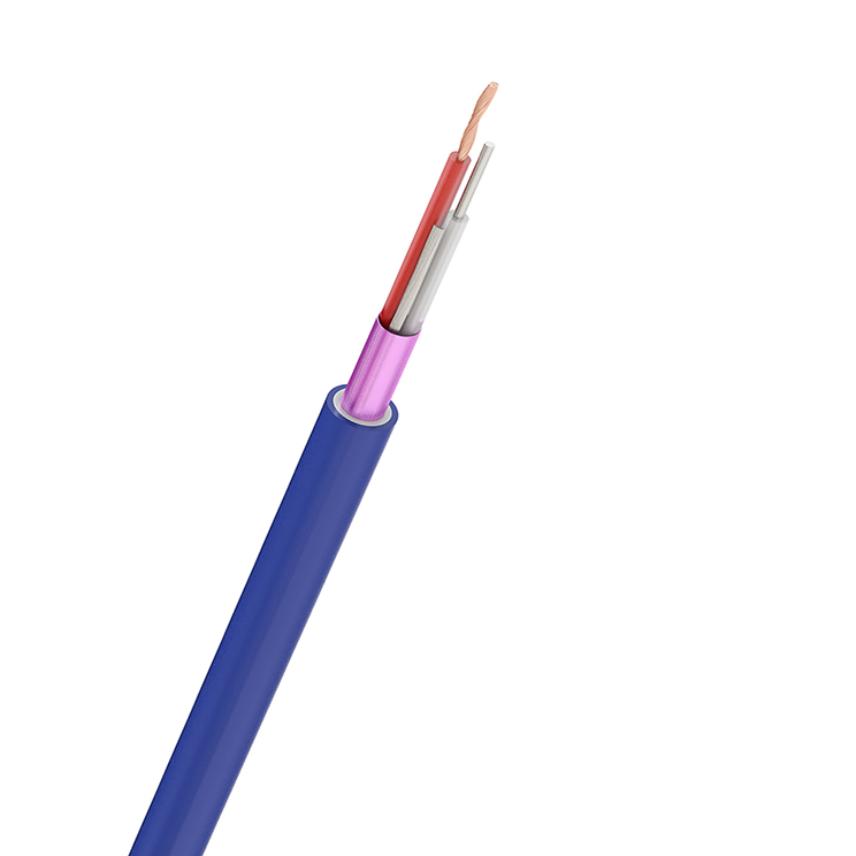

TQXP/2R 230V Twin conductor heating cable units 10W/m
TQXP/2R 230V Twin conductor heating cable units 10W/m
N-Heat
TQXP/2R are ideal for underfloor heating embedded in concrete or similar. The elements have integrated (hidden) splices
Read moreTQXP/2R 230/10
Nexans ref. 10571357 - Country ref. 1007812
- Packaging: Box (Unit)
- Drain wire: Stranded tinned copper
- Approximate net weight: 1.4 kg
- Nominal output: 230 W
- Nominal element resistance: 230 Ohm
- Min. element resistance: 218.5 Ohm
- Max. element resistance: 253 Ohm
- Element length: 23 m
TQXP/2R 300/10
Nexans ref. 10571544 - Country ref. 1007813
- Packaging: Box (Unit)
- Drain wire: Tinned copper
- Approximate net weight: 1.8 kg
- Nominal output: 300 W
- Nominal element resistance: 176.3 Ohm
- Min. element resistance: 167.5 Ohm
- Max. element resistance: 193.9 Ohm
- Element length: 31.2 m
TQXP/2R 380/10
Nexans ref. 10571546 - Country ref. 1007814
- Packaging: Box (Unit)
- Drain wire: Tinned copper
- Approximate net weight: 2.2 kg
- Nominal output: 380 W
- Nominal element resistance: 139.2 Ohm
- Min. element resistance: 132.2 Ohm
- Max. element resistance: 153.1 Ohm
- Element length: 38.4 m
TQXP/2R 450/10
Nexans ref. 10571547 - Country ref. 1007815
- Packaging: Box (Unit)
- Drain wire: Tinned copper
- Approximate net weight: 2.6 kg
- Nominal output: 450 W
- Nominal element resistance: 117.6 Ohm
- Min. element resistance: 111.7 Ohm
- Max. element resistance: 129.4 Ohm
- Element length: 46.9 m
TQXP/2R 530/10
Nexans ref. 10571548 - Country ref. 1007816
- Packaging: Box (Unit)
- Drain wire: Tinned copper
- Approximate net weight: 3.0 kg
- Nominal output: 530 W
- Nominal element resistance: 99.8 Ohm
- Min. element resistance: 94.8 Ohm
- Max. element resistance: 109.8 Ohm
- Element length: 53.5 m
TQXP/2R 650/10
Nexans ref. 10571551 - Country ref. 1007817
- Packaging: Box (Unit)
- Drain wire: Tinned copper
- Approximate net weight: 3.5 kg
- Nominal output: 650 W
- Nominal element resistance: 81.4 Ohm
- Min. element resistance: 77.3 Ohm
- Max. element resistance: 89.5 Ohm
- Element length: 63.6 m
TQXP/2R 760/10
Nexans ref. 10571552 - Country ref. 1007818
- Packaging: Box (Unit)
- Drain wire: Tinned copper
- Approximate net weight: 4.1 kg
- Nominal output: 760 W
- Nominal element resistance: 69.6 Ohm
- Min. element resistance: 66.1 Ohm
- Max. element resistance: 76.6 Ohm
- Element length: 77.1 m
TQXP/2R 890/10
Nexans ref. 10571566 - Country ref. 1007819
- Packaging: Box (Unit)
- Drain wire: Tinned copper
- Approximate net weight: 4.7 kg
- Nominal output: 890 W
- Nominal element resistance: 59.4 Ohm
- Min. element resistance: 56.4 Ohm
- Max. element resistance: 65.3 Ohm
- Element length: 84.8 m
TQXP/2R 1050/10
Nexans ref. 10571567 - Country ref. 1007820
- Packaging: Box (Unit)
- Drain wire: Tinned copper
- Approximate net weight: 5.5 kg
- Nominal output: 1050 W
- Nominal element resistance: 50.4 Ohm
- Min. element resistance: 47.9 Ohm
- Max. element resistance: 55.4 Ohm
- Element length: 103.9 m
TQXP/2R 1300/10
Nexans ref. 10571568 - Country ref. 1007821
- Packaging: Box (Unit)
- Drain wire: Tinned copper
- Approximate net weight: 6.6 kg
- Nominal output: 1300 W
- Nominal element resistance: 40.7 Ohm
- Min. element resistance: 38.7 Ohm
- Max. element resistance: 44.8 Ohm
- Element length: 129.3 m
TQXP/2R 1450/10
Nexans ref. 10571569 - Country ref. 1007822
- Packaging: Box (Unit)
- Drain wire: Tinned copper
- Approximate net weight: 7.3 kg
- Nominal output: 1450 W
- Nominal element resistance: 36.5 Ohm
- Min. element resistance: 34.7 Ohm
- Max. element resistance: 40.1 Ohm
- Element length: 137.9 m
TQXP/2R 1610/10
Nexans ref. 10571570 - Country ref. 1007823
- Packaging: Box (Unit)
- Drain wire: Tinned copper
- Approximate net weight: 8.1 kg
- Nominal output: 1610 W
- Nominal element resistance: 32.9 Ohm
- Min. element resistance: 31.3 Ohm
- Max. element resistance: 36.2 Ohm
- Element length: 156.1 m
Description
Description
Standards
-
ProductIEC 60800
-
TestIEC 60332-1-2
The TQXP/2R heating cable units are versatile and can be used in many applications. They are ideal for comfort heating in concrete floor constructions, and suitable for storage heating, snow melting installations, for frost protection of roof and gutters, frost protection of pipes, soil heating and other frost protection applications.
Each unit has a unique factory made integrated splice, which i marked --> SPLICE<-- on the cable surface. The factory made end seal is 100% waterproof and does not emit any heat. The cold lead is marked with ***** on the outher sheath, indicating that this part of the cable does not emit heat.
Length cold lead: 2.3 m
IP-class, end seal: IPX7
Minimum installation temperature (without any precautions): 0 oC
Mechanical class: M2
UV-resistant: Yes
CPR: Eca
