G12-62,5/125 QFCB OM1
Nexans ref. 10234759 - Country ref. 1087726
- Packaging: Drum (m)
- Number of optical fibres: 12
G12-9/125 QFCB
Nexans ref. 10234719 - Country ref. 1087716
- Packaging: Drum (m)
- Number of optical fibres: 12
G24-62,5/125 QFCB OM1
Nexans ref. 10234760 - Country ref. 1087727
- Packaging: Drum (m)
- Number of optical fibres: 24
G24-9/125 QFCB
Nexans ref. 10234720 - Country ref. 1087717
- Packaging: Drum (m)
- Number of optical fibres: 24
G4-62,5/125 QFCB OM1
Nexans ref. 10234757 - Country ref. 1087724
- Packaging: Drum (m)
- Number of optical fibres: 4
Description
Description
Standards
-
TestIEC 60793

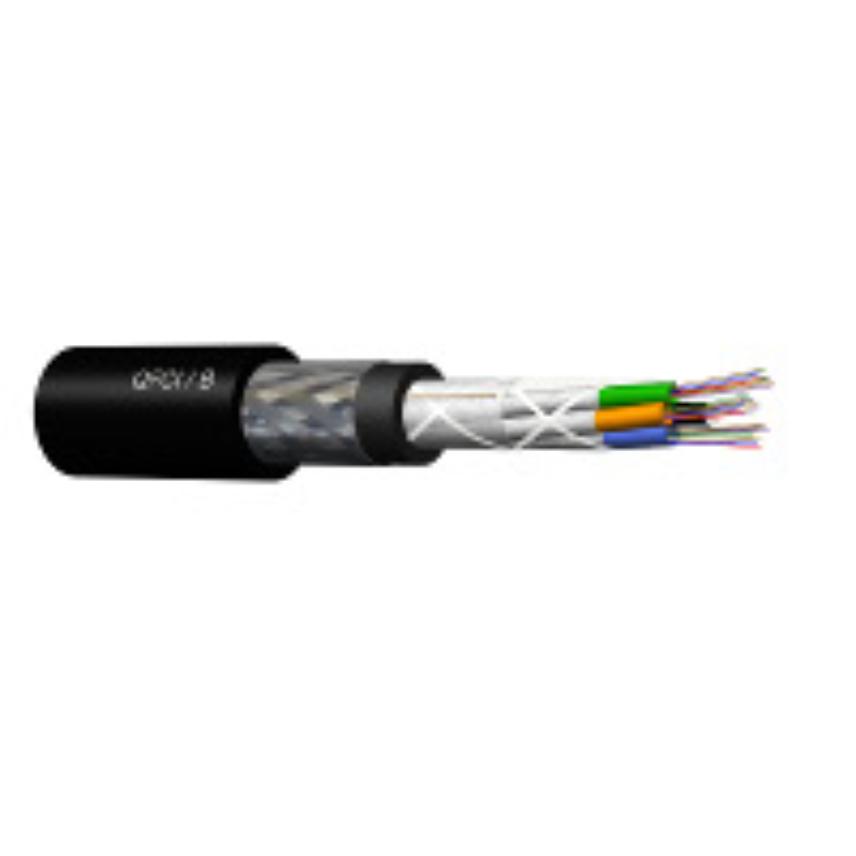

QFCB MUD is a fibre optic cable, applicable to shipboard and offshore topside units. The cable has the following properties:
- High data transmission capacity
- Very good mechanical properties, suitable for tough environments
- Halogen free, low smoke and toxicity, low acid gas emission during fire
- DNV-GL certification.

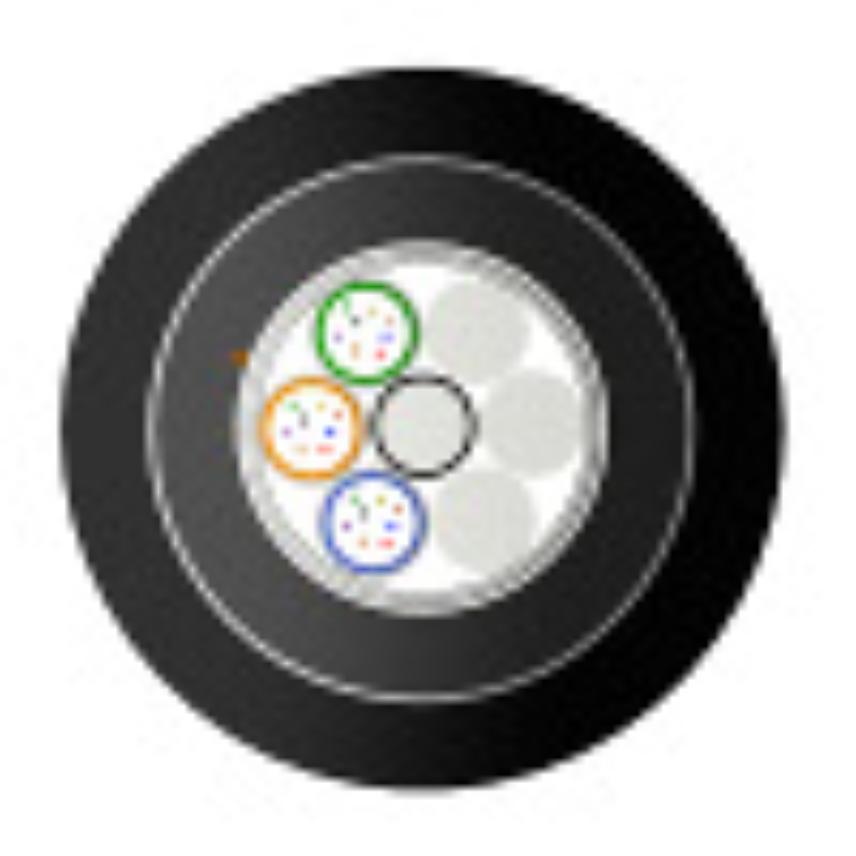

Construction
- FRP : Fibre reinforced plastic.
- Loose Tube : Gel filled PBT tubes(Polybutylene Terephtalate,filled with gel) individual wrapped with Mica Tape
- Number of fiber per tube: 2~24C max 4/ 25 ~ 48C max 8
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Armour type
Galvanized steel wire braiding
Inner sheath
SHF1
Moisture barrier
Swellable tape and/or Lap tape
Outer sheath
SHF1 + Polyimid coating
Dimensional characteristics
Dimensional characteristics
Outer Diameter
16 mm
Approximate net weight
345 kg/km
Usage characteristics
Usage characteristics
Mud resistance
NEK606
Ambient installation temperature, range
-30 ... 60 °C
Fire retardant
IEC 60332-1
Flame retardant
IEC 60332-1
Minimum dynamic operating bending radius
6 (xD)
Operating temperature, range
-40 ... 70 °C
Smoke density
EN/IEC 61034-2
Storage temperature, range
-40 ... 70 °C
