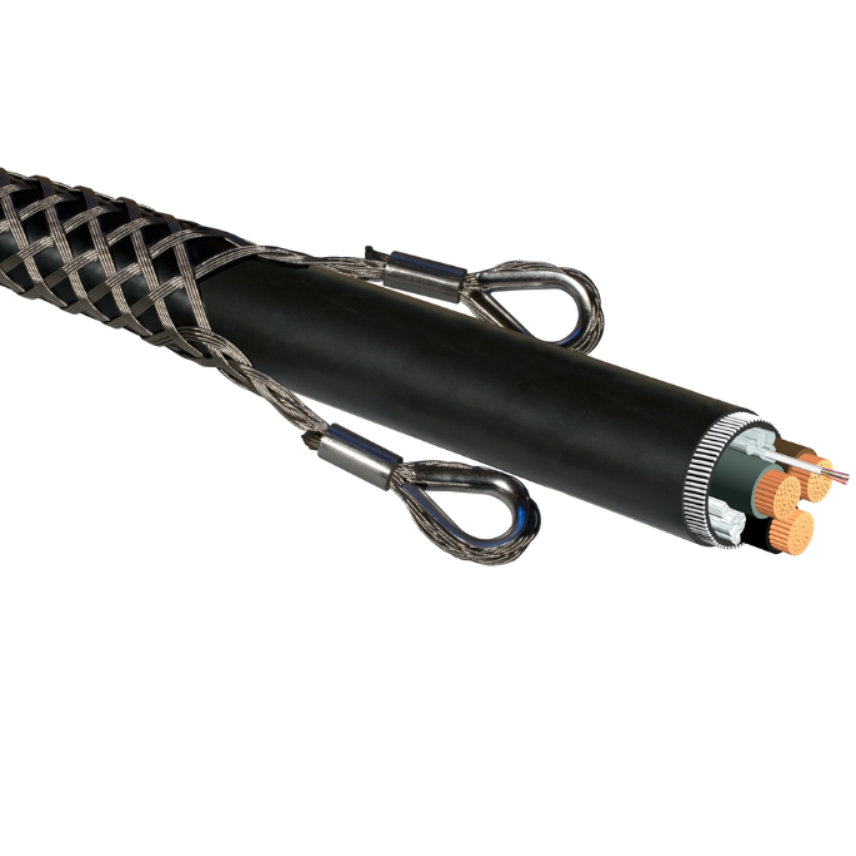

Cable Grip with lock 110-130 mm
Cable Grip with lock 110-130 mm
Accessories for submarine cable installation
Read more- Nexans ref. : 10265979
- Country ref. : 1158216
- EAN : 7045210124163
Description
Description
Nexans Cable Grip comes in several variants and different sizes. All the grips are supplied in acid-resistant steel with densified braid to withstand the mechanical forces to which they will be exposed, including during low and high tides.
"Cable grip ab-xy" is the term where ab-xy indicates the cable diameter "from - to" in mm to which the product fits.
"Cable grip sew ab-xy" is the term for cable grips that can be "sewed" onto the cable.
Hose clamps and shrink tubings are not included and must be purchased separately.
Characteristics
Characteristics
Dimensional characteristics
Dimensional characteristics
Approximate net weight
2.5 kg
Length
1000 mm
Mechanical characteristics
Mechanical characteristics
Maximum Pulling Tension
36 kN
Breaking load of the suspension strand
108 kN
