200LR - Interface A - Elbow connector
200LR - Interface A - Elbow connector
Up to 24 kV - 250 A
EUROMOLD separable connector
- Nexans ref. : 200LR
- EAN : 5115044000291
Description
Description
Standards
-
Product2014/68/EU
Application
Separable elbow connector designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors...).
Technical characteristics
- The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

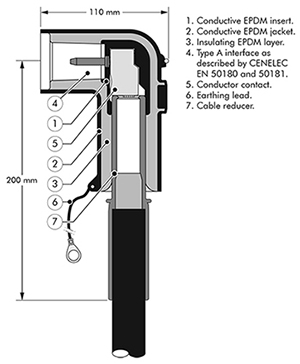

Design

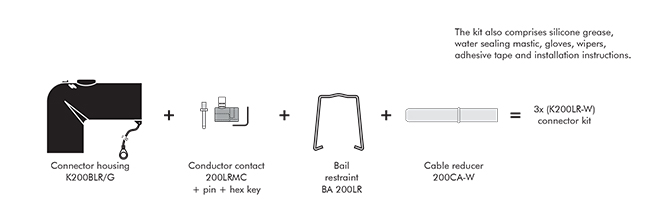

Kit contents
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
Elbow
Connector type
Outer cone
Conductor material
Copper or Aluminum
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
25 ... 95 mm²
Electrical characteristics
Electrical characteristics
Dielectric withstand voltage, 50Hz 1mn
55 kV
Impulse voltage
125 kV
Maximal partial discharge at 2Uo
10 pC
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Usage characteristics
Usage characteristics
Interface
A (250 A)
Resources
Resources
Documentation
200LR catalogue page
pdf — 520.1 kB
200LR installation instruction
pdf — 811.8 kB
