KTV 1,0/4,6 6F tri 77% PVC
KTV 1,0/4,6 6F tri 77% PVC

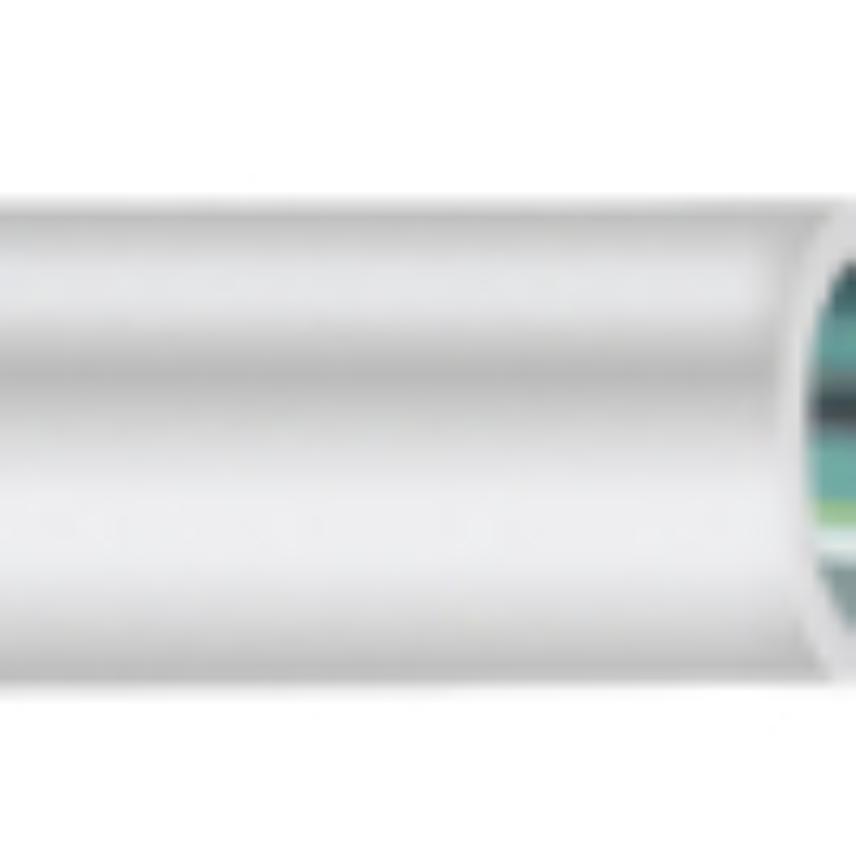

6F CATV coax dropcable white PVC Class A
Read more- Nexans ref. : 10136885
- Country ref. : 1099491
- EAN : 7045210128413
Description
Description
Standards
-
InternationalManufacturer specification
This new generation of Tri-shield CATV cable, complies with EN 50117 Class A shielding demands for the transmission of broadband services. The inner layer of foil is bonded to the dielectric thus ensuring adequate shielding through the connector.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Type of conductor
Circular, solid
Conductor material
Copper-clad steel
Insulation
Foamed PE
Outer conductor
Aluminium foil, bonded to the dielectric
Screen
Aluminium braid + aluminium foil
Outer sheath
PVC
Sheath colour
White
Dimensional characteristics
Dimensional characteristics
Conductor diameter
1.0 mm
Diameter over insulation
4.57 mm
Diameter over external conductor / metallic screen
5.49 mm
Nominal outer diameter
7.06 mm
Approximate weight
40.49 kg/km
Resources
Resources
Documentation
Commscope Droppkabel
png — 56.6 kB
Selling & delivery Information
Delivered in 305 m lengths on a drum.
