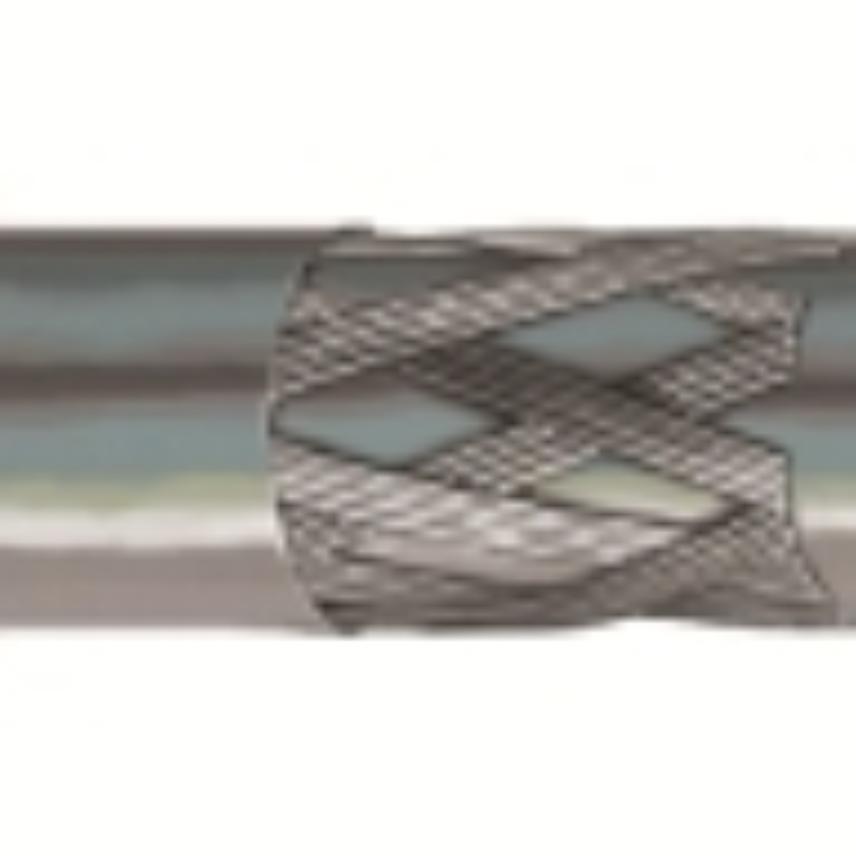

CATV 1,0/4,6 6F tri 77% PVC
CATV 1,0/4,6 6F tri 77% PVC
6F CATV coax dropcable white PVC Class A
Read more- Nexans ref. : 10132263
- Country ref. : 1008105
- EAN : 7045210050356
Description
Description
Standards
-
InternationalEN 50117
This new generation of Tri-shield CATV cable, complies with EN 50117 Class A shielding demands for the transmission of broadband services. The inner layer of foil is bonded to the dielectric thus ensuring adequate shielding through the connector.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Type of conductor
Circular, solid
Conductor material
Copper-clad steel
Insulation
Foamed PE
Outer conductor
Aluminium foil, bonded to the dielectric
Screen
Aluminium braid + aluminium foil
Outer sheath
PVC
Sheath colour
White
Dimensional characteristics
Dimensional characteristics
Conductor diameter
1.0 mm
Diameter over insulation
4.57 mm
Diameter over external conductor / metallic screen
5.49 mm
Nominal outer diameter
7.06 mm
Approximate weight
40.49 kg/km
Electrical characteristics
Electrical characteristics
Characteristic impedance
75 Ohm
Nominal capacitance
52.0 pF/m
Nominal velocity propagation
- %
Transmission characteristics
Transmission characteristics
Attenuation at 5 MHz
- dB/m
Attenuation, nom. 50 MHz
- dB/100m
Attenuation, nom. 100 MHz
6.50 dB/100m
Attenuation, nom. 200 MHz
- dB/100m
Attenuation, nom. 300 MHz
- dB/100m
Usage characteristics
Usage characteristics
Length
305 m
Bending factor when installed
5 (xD)
Field of application
Indoor, Outdoor
Installation temperature, range
- °C
Resources
Resources
Documentation
Data 77 Dropcable
png — 58.6 kB
Selling & delivery Information
Delivered in 305 m lengths on a drum.
Declaration of Performance
- Declaration of Performance n� : 1000622-NOLA
- Certification Date : 1/9/18
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 1783
- Declared performance : Eca
