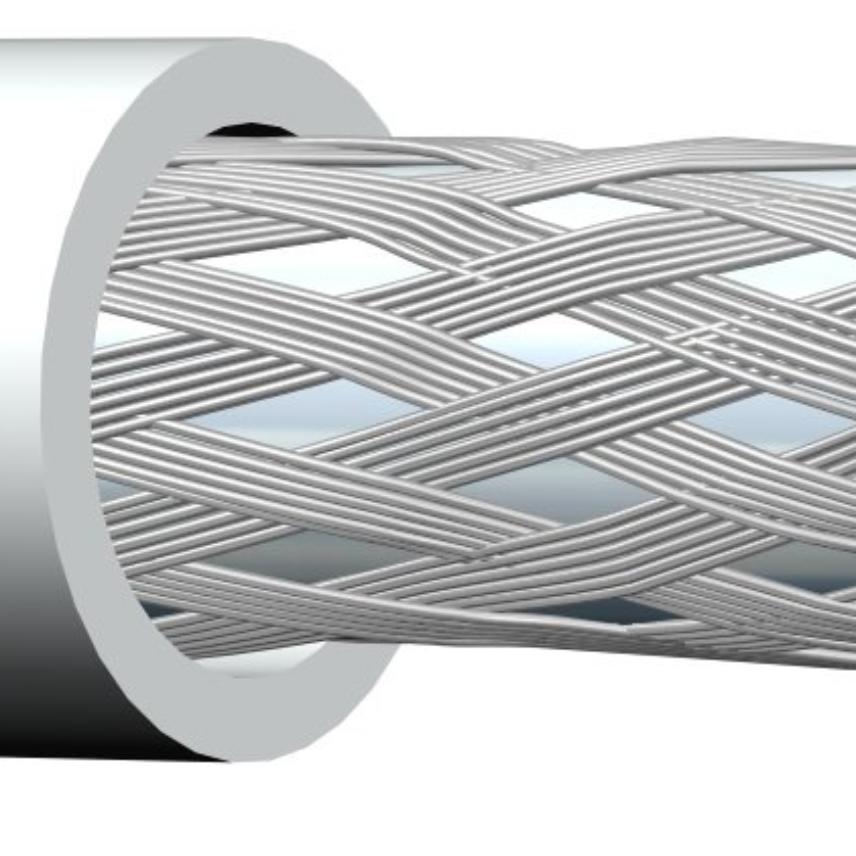

CATV 0,8/3,6 59F 67% PVC

Description

Description

This CATV/antenna cable is suitable for satellite systems. The white, outer sheath is UV resistant.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Type of conductor
Circular, solid
Conductor material
Copper-clad steel
Insulation
Foamed PE
Outer conductor
Aluminium foil, bonded to the dielectric
Screen
Aluminium braid
Outer sheath
PVC
Sheath colour
White

Dimensional characteristics

Dimensional characteristics

Conductor diameter
0.8 mm
Diameter over insulation
3.66 mm
Diameter over external conductor / metallic screen
4.34 mm
Nominal outer diameter
6.1 mm
Approximate weight
31.3 kg/km

Electrical characteristics

Electrical characteristics

Characteristic impedance
75 Ohm
Nominal capacity value
52 pF/m

Transmission characteristics

Transmission characteristics

Attenuation, nom. 100 MHz
8.10 dB/100m
Attenuation, nom. 860 MHz
- dB/100m

Usage characteristics

Usage characteristics

Length
305 m
Packaging
Drum

Resources

Resources

Documentation

Selling & delivery Information

Can be delivered either on a reel or drum as agreed.

Declaration of Performance

  • Declaration of Performance n� : 1000620-NOLA
  • Certification Date : 4/20/18
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 1783
  • Declared performance : Eca
