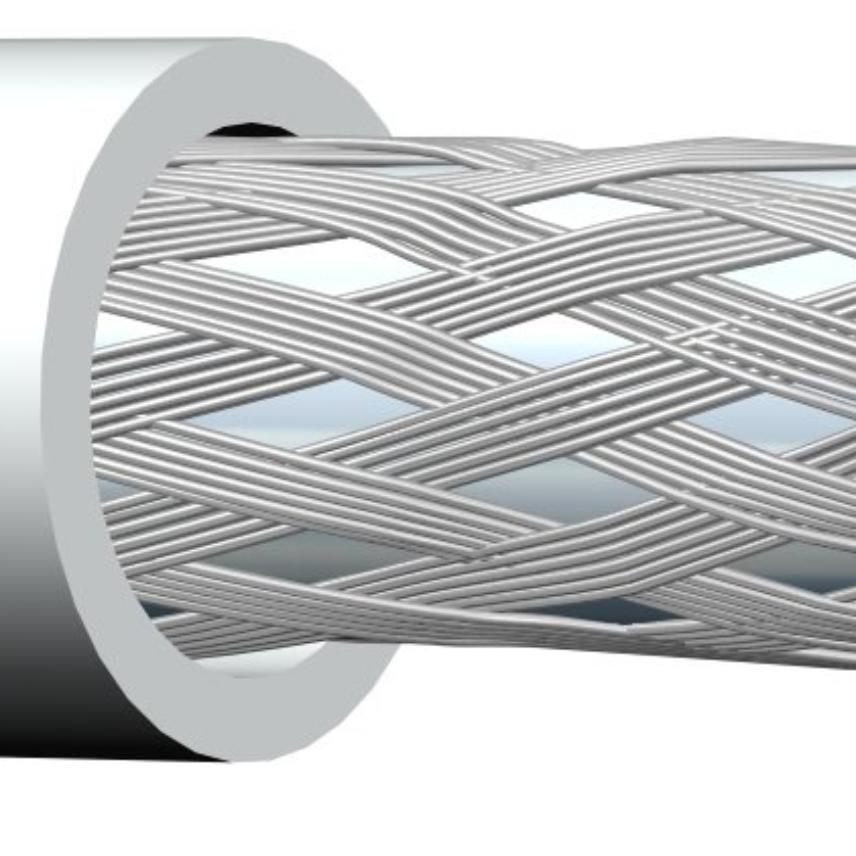

CATV 1,0/4,6 6F 60% PVC
CATV 1,0/4,6 6F 60% PVC
6F CATV coax dropcable white PVC Class B
Read more- Nexans ref. : 10132261
- Country ref. : 1008103
- EAN : 7045210050332
Description
Description
This CATV/antenna cable is suitable for satellite systems. The white, outer sheath is UV resistant.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Type of conductor
Circular, solid
Conductor material
Copper-clad steel
Insulation
Foamed PE
Outer conductor
Aluminium foil, bonded to the dielectric
Screen
Aluminium braid
Outer sheath
PVC
Sheath colour
White
Dimensional characteristics
Dimensional characteristics
Conductor diameter
1.0 mm
Diameter over insulation
4.57 mm
Diameter over external conductor / metallic screen
5.49 mm
Nominal outer diameter
7.06 mm
Approximate weight
39.6 kg/km
Electrical characteristics
Electrical characteristics
Characteristic impedance
75 Ohm
Nominal capacity value
- pF/m
Transmission characteristics
Transmission characteristics
Attenuation, nom. 100 MHz
6.50 dB/100m
Attenuation, nom. 860 MHz
- dB/100m
Usage characteristics
Usage characteristics
Length
305 m
Packaging
Drum
Resources
Resources
Documentation
Data for F59 6 11 og Sat
png — 22.2 kB
Selling & delivery Information
Can be delivered either on a reel or drum as agreed.
Declaration of Performance
- Declaration of Performance n� : 1000620-
- Certification Date : 6/2/23
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 1783
- Declared performance : Eca
