RG58 C/U Koaks 50 Ohm

Description

Description

Standards

  • Product
    EN 50117

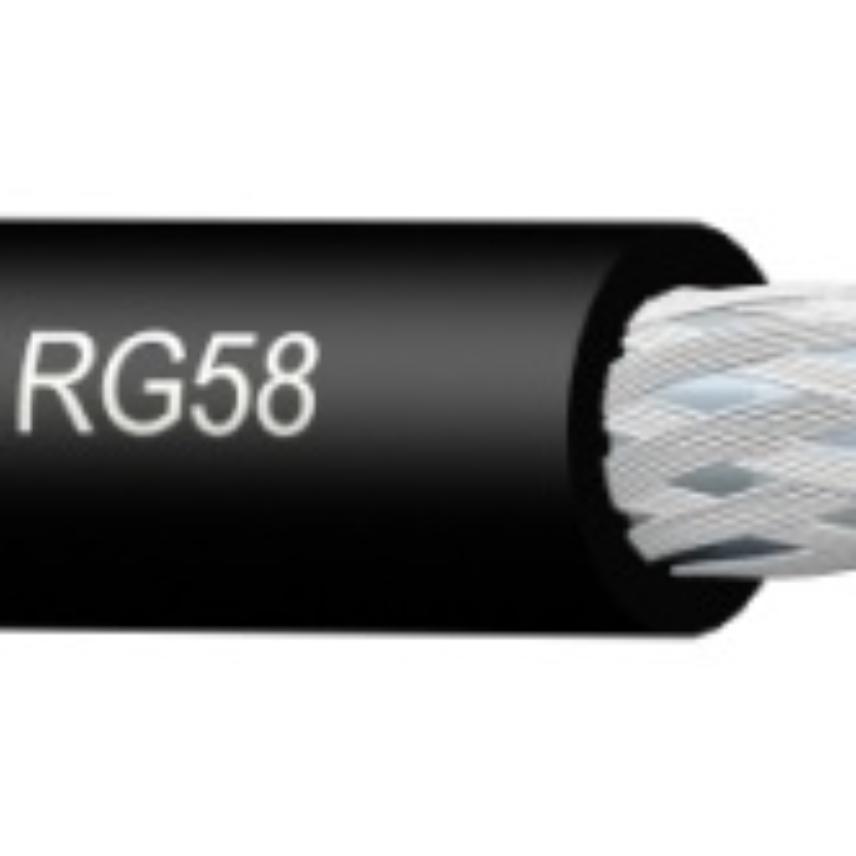

RG58 C/U is a 50 ohm coaxial cable with center conductor of multistranded tinned copper. The dielectric is of solid PE and the outer conductor is of braided tinned copper screen. The cable has a black PVC outer sheath. The cable is used, among other things, in LANs of the type CSMA / CD (Ethernet) and in systems for radio communication. Used indoors and with mechanical protection, such as pipes, it can also be used outdoors.

RG213 U is a 50 ohm coaxial cable with the center conductor of multistranded copper.The dielectric is of solid PE and the outer conductor is of braided copper screen. The cable has a black PVC outer sheath. The cable is used in systems for radio communication. With mechanical protection it can be used outdoors. Used indoors and with mechanical protection, such as pipes, it can also be used outdoors.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Type of conductor
Circular, stranded
Conductor material
Tinned copper
Insulation
Solid polyethylene
Screen
Tinned copper braid
Outer sheath
PVC
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Conductor cross-section
0.5 mm²
Conductor diameter
- mm
Number of core wires (nb x mm Ø)
19 x 0.19 mm Ø
Maximum diameter over insulation
2.9 mm
Nominal outer diameter
4.95 mm
Approximate weight
34 kg/km
Wire diameter
- mm

Electrical characteristics

Electrical characteristics

Characteristic impedance
50 Ohm
Nominal capacity value
106 pF/m
Relative propagation velocity
- %
Resistance of inner conductor (DC)
- Ohm/km

Transmission characteristics

Transmission characteristics

Attenuation at 5 MHz
- dB/100m
Attenuation, nom. 50 MHz
- dB/100m
Attenuation, nom. 100 MHz
20.30 dB/100m
Attenuation, nom. 200 MHz
27.3 dB/100m
Attenuation, nom. 220 MHz
- dB/100m
Attenuation, max. 250 MHz
- dB/100m
Attenuation, nom. 300 MHz
- dB/100m
Attenuation, nom. 450 MHz
- dB/100m
Attenuation, nom. 860 MHz
- dB/100m
Attenuation, nom. 1800 MHz
- dB/100m

Usage characteristics

Usage characteristics

Length
500 m
Ambient installation temperature, range
-10 ... 50 °C
Field of application
-
Minimum bending radius, fixed installation
- (xD)
Operating temperature, range
-20 ... 70 °C

Resources

Resources

Documentation

Declaration of Performance

  • Declaration of Performance n� : 1000532-NOLA
  • Certification Date : 12/19/17
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 1783
  • Declared performance : Eca
