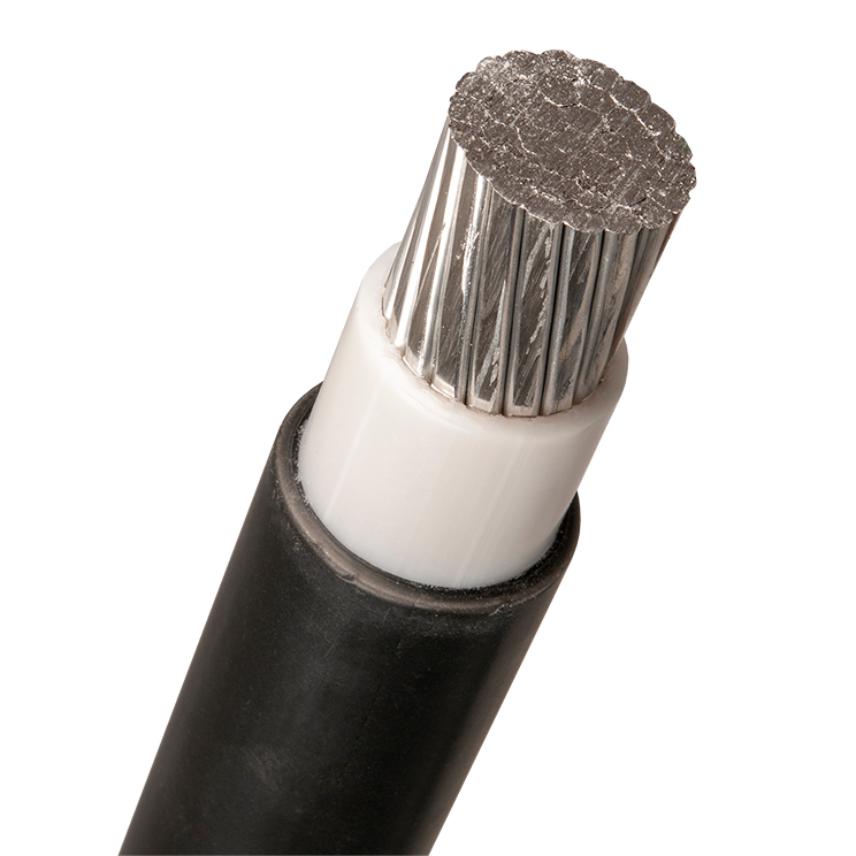

TXXI 1kV Al three core
TXXI 1kV Al three core
The cable may be used for fixed installation indoors and outdoors in air, ground and water.
Read moreTXXI 1kV 3x1x240A
Nexans ref. 10574946
- Conductor cross-section: 240 mm²
- Conductor diameter: 18.2 mm
- Nominal insulation thickness: 1.7 mm
- Diameter over insulation: 21.6 mm
- Nominal outer sheath thickness: 1.7 mm
- Nominal outer diameter: 62.7 mm
- Approximate weight: 2900 kg/km
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- Perm. current rating buried 15°C - flat formation: 510 A
- Perm. current rating buried 15°C - trefoil formation: 465 A
- Perm. current rating in air 25°C - flat formation: 575 A
- Perm. current rating in air 25°C - trefoil formation: 505 A
- Permissible short circuit current: 22700 A
- Maximum pulling force by laying: 21.6 kN
TXXI 1kV 3x1x400A
Nexans ref. 10563538
- Conductor cross-section: 400 mm²
- Conductor diameter: 23.7 mm
- Nominal insulation thickness: 2.0 mm
- Diameter over insulation: 27.6 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 96.0 mm
- Approximate weight: 4300 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
- Perm. current rating buried 15°C - flat formation: 670 A
- Perm. current rating buried 15°C - trefoil formation: 615 A
- Perm. current rating in air 25°C - flat formation: 805 A
- Perm. current rating in air 25°C - trefoil formation: 700 A
- Permissible short circuit current: 37800 A
- Maximum pulling force by laying: 36 kN
TXXI 1kV 3x1x630A
Nexans ref. 10580251
- Conductor cross-section: 630 mm²
- Conductor diameter: 30.3 mm
- Nominal insulation thickness: 2.4 mm
- Diameter over insulation: 35.4 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 85.4 mm
- Approximate weight: 7000 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
- Perm. current rating buried 15°C - flat formation: 850 A
- Perm. current rating buried 15°C - trefoil formation: 770 A
- Perm. current rating in air 25°C - flat formation: 1100 A
- Perm. current rating in air 25°C - trefoil formation: 940 A
- Permissible short circuit current: 59500 A
- Maximum pulling force by laying: 56.7 kN
Description
Description
User benefits:
AXQ/TXXI is a halogen free, XLPE-insulted and HFFR sheathed cable with circular, stranded aluminum conductor. The cable is designed according to SS 424 14 18. The conductors have resistance according to IEC 60228 class 2. The sheath is marked "NEXANS GS AREA mm2 1kV Ds2d2a2 year+month". AXQ/TXXI meets the requirements for flame class Dcas2d2a2 according to CPR.
Lifemark(TM) recycling marking
The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.
Quality system
Designed, manufactured and tested in accordance with ISO 9001.
Environmental management system
The activities at our plant in Grimsås are certified according to ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
