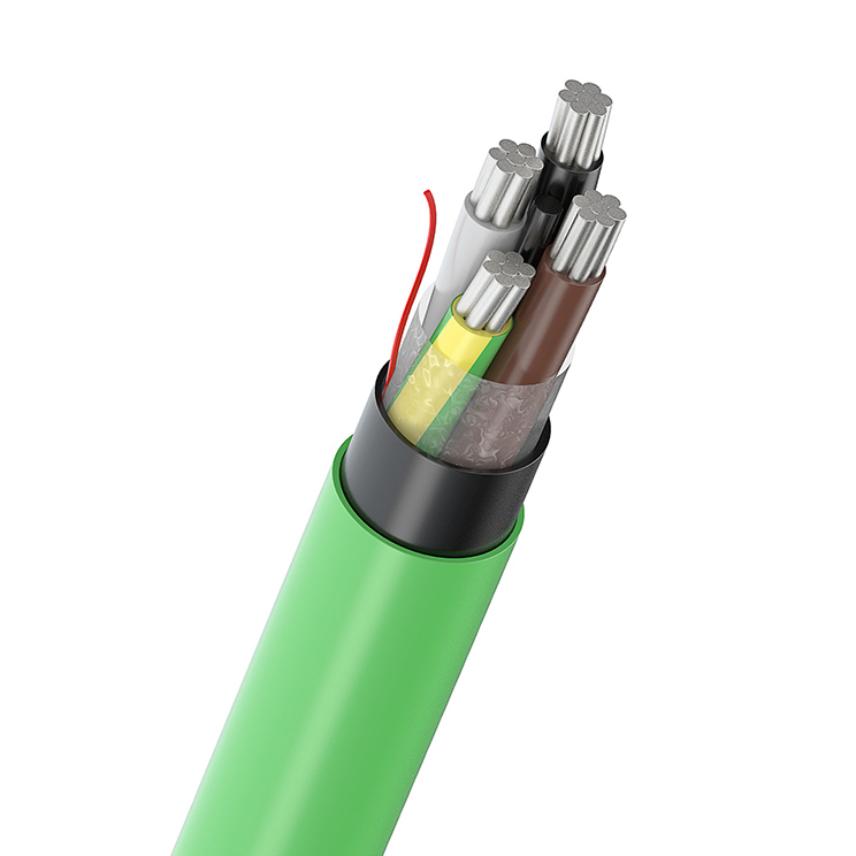

TFXP 1kV 4G50A
TFXP 1kV 4G50A
- Nexans ref. : 10022128
- Country ref. : 1017590
- EAN : 7330000055896
Description
Description
Standards
-
InternationalHD 603.5M; IEC 60332-1
User benefits:
TFXP has XLPE-insulated aluminium conductors.
The cable is specially devoloped for low temperature conditions.
Installation:
- Underground
- Outdoor
Usage
- Energy distribution
Marking
NEXANS GS TFXP n x mm2 1kV YEAR MONTH
Conductor marking/colour code
Black-Brown-Grey-Green/Yellow
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Conductor shape
Circular compacted
Insulation
XLPE (chemical)
With Green/Yellow core
Yes
Material of filler / inner sheath
PE
Outer sheath
PVC
Sheath colour
Green
Conductor flexibility
Stranded class 2
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
50 mm²
Conductor diameter
8.1 mm
Sector-shaped heigth
- mm
Sector-shaped width
- mm
Number of cores
4
Nominal outer diameter
31.0 mm
Approximate weight
0.93 kg/m
Diameter over inner sheath
1.7 mm
Nominal insulation thickness
1.0 mm
Nominal outer sheath thickness
1.4 mm
Electrical characteristics
Electrical characteristics
Permissible current rating in open air
165 A
Permissible current rating when buried
180 A
Max. DC resistance of the conductor at 20°C
0.641 Ohm/km
Inductive reactance at 50Hz
0.079 Ohm/km
Nominal inductance
0.25 mH/km
Zero sequence reactance at 50HZ
0.32 Ohm/km
Zero sequence resistance at 20°C
2.564 Ohm/km
Capacity of phase cores approx.
0.1 µF / km
Permissible short circuit current conductor 1s
4.5 kA
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Mechanical characteristics
Mechanical characteristics
Maximum Pulling Tension
6 kN
Minimum repeated bending diameter
372 mm
Usage characteristics
Usage characteristics
Packaging
NX14
Length
700 m
Maximum operating temperature
90 °C
Short-circuit max. conductor temperature
250 °C
Minimum installation temperature
-10 °C
Bending factor when laying
6 (xD)
Flame retardant
IEC 60332-1
