YSLF 24 - 36kV three core
YSLF 24 - 36kV three core

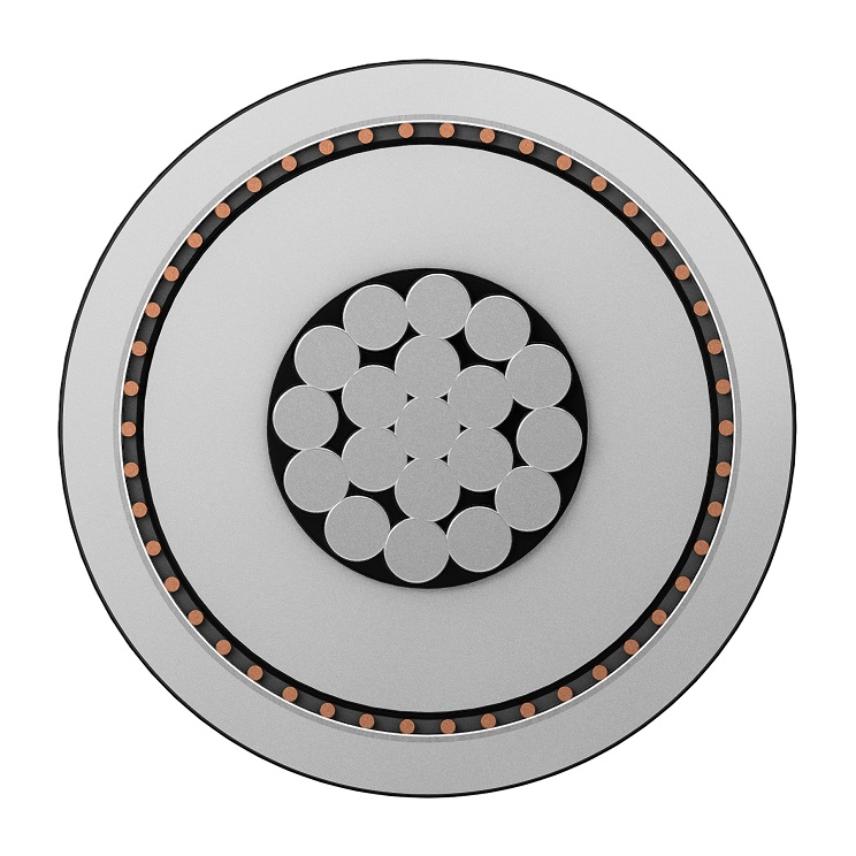

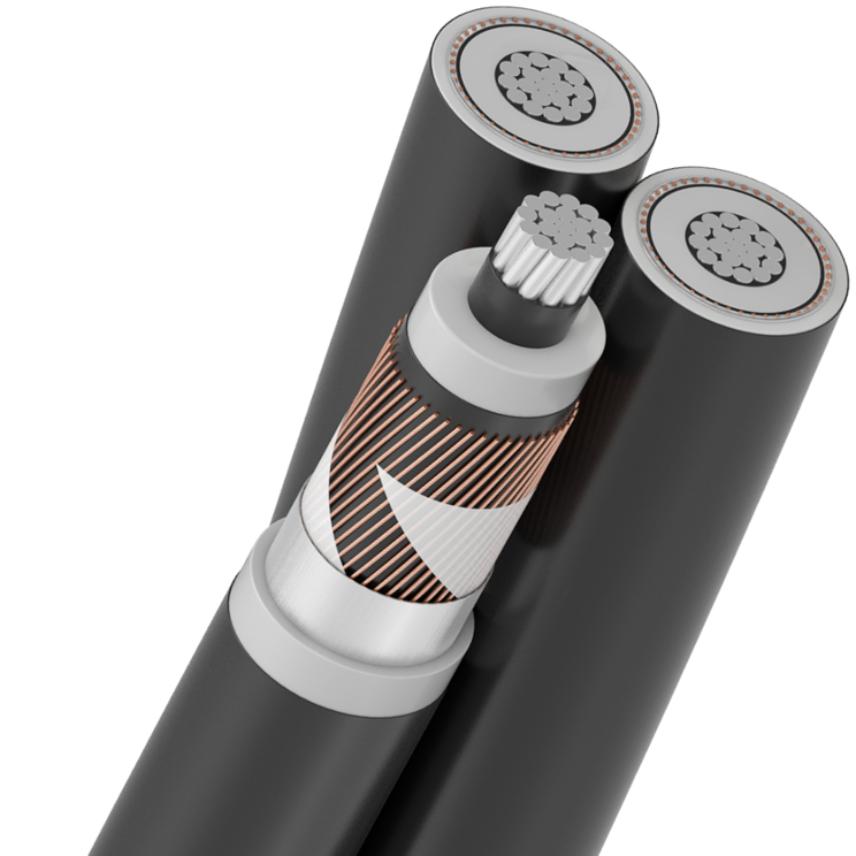

Metal screened cable with thermoplastic insulation, laminated aluminium sheet and outer semiconducting layer.
Read moreYSLF 24kV 3x1x50A
Nexans ref. 10588393 - Country ref. 1054205
- Packaging: m
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 58.2 mm
- Perm. current rating buried 15°C - trefoil formation: 185 A
- Perm. current rating in air 25°C - trefoil formation: 195 A
- Maximum Pulling Tension: 4.5 kN
YSLF 24kV 3x1x95A
Nexans ref. 10588394 - Country ref. 1054206
- Packaging: m
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 65.9 mm
- Perm. current rating buried 15°C - trefoil formation: 280 A
- Perm. current rating in air 25°C - trefoil formation: 280 A
- Maximum Pulling Tension: 8.55 kN
YSLF 24kV 3x1x150A
Nexans ref. 10588395 - Country ref. 1054207
- Packaging: m
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 72.6 mm
- Perm. current rating buried 15°C - trefoil formation: 360 A
- Perm. current rating in air 25°C - trefoil formation: 370 A
- Maximum Pulling Tension: 13.5 kN
YSLF 24kV 3x1x240A
Nexans ref. 10588396 - Country ref. 1054208
- Packaging: m
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 82.1 mm
- Perm. current rating buried 15°C - trefoil formation: 465 A
- Perm. current rating in air 25°C - trefoil formation: 490 A
- Maximum Pulling Tension: 21.6 kN
Description
Description
Standards
-
ProductHD 620
User benefits:
Diffusion free high voltage cable.
Avoids growth of watertrees in the thermoplastick insulation, TPI, and increases the lifetime of the cable.
Sheath integrity may be tested while on drum, before backfilling, in plastic pipes etc.
With the utilization of thermoplastic insulation every layer of the cable is recyclable.
Screen section: Value given is the physical cross section of the copper wires in the screen of one core.
Usage:
Indoor
Underground
Outdoors
Intended for high voltage energy distribution
Fire propertirs:
Halogen free
Cable marking:
NEXANS GS YSLF 24kV 1 x mm²/mm² MONTH YEAR
Lifemark
