YSLF-OJ 24 - 36kV MP three core
YSLF-OJ 24 - 36kV MP three core

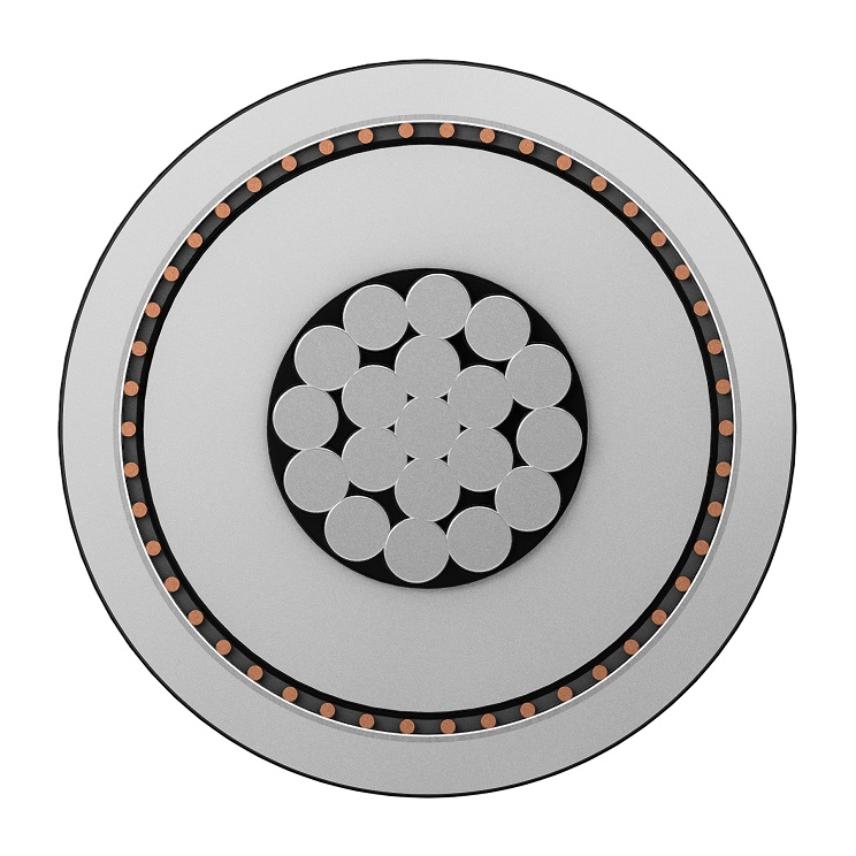

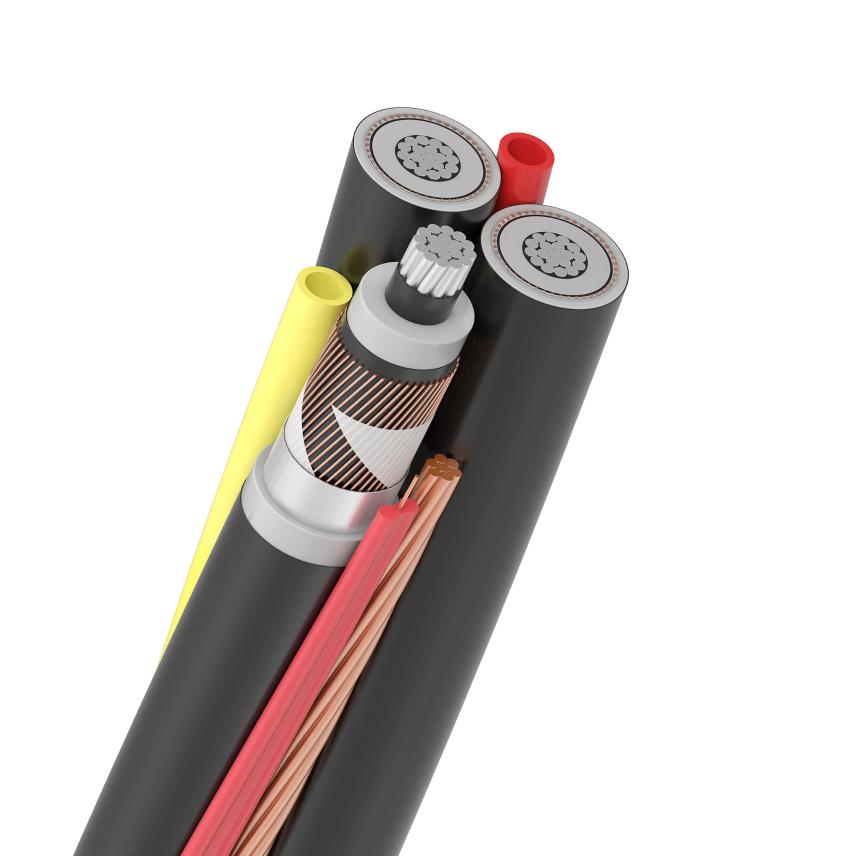

Metal screened cable with thermoplastic insulation, TPI, laminated aluminum sheet and outer semiconductive layer. A Cu-wire, optical fiber tubes and a red searchable marking tape is twisted together with the cores.
Read moreYSLF-OJ 24kV 3x1x50A KGF25 MP
Nexans ref. 10588485 - Country ref. 1054228
- Packaging: m
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 58.2 mm
- Ground conductor cross-section: 25 mm²
- Perm. current rating buried 15°C - trefoil formation: 185 A
- Perm. current rating in air 25°C - trefoil formation: 195 A
- Maximum Pulling Tension: 4.5 kN
YSLF-OJ 24kV 3x1x50A KGF50 MP
Nexans ref. 10588487 - Country ref. 1054229
- Packaging: m
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 58.2 mm
- Ground conductor cross-section: 50 mm²
- Perm. current rating buried 15°C - trefoil formation: 185 A
- Perm. current rating in air 25°C - trefoil formation: 195 A
- Maximum Pulling Tension: 4.5 kN
YSLF-OJ 24kV 3x1x95A KGF25 MP
Nexans ref. 10588488 - Country ref. 1054230
- Packaging: m
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 65.9 mm
- Ground conductor cross-section: 25 mm²
- Perm. current rating buried 15°C - trefoil formation: 280 A
- Perm. current rating in air 25°C - trefoil formation: 280 A
- Maximum Pulling Tension: 8.55 kN
YSLF-OJ 24kV 3x1x95A KGF50 MP
Nexans ref. 10588489 - Country ref. 1054231
- Packaging: m
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 65.9 mm
- Ground conductor cross-section: 50 mm²
- Perm. current rating buried 15°C - trefoil formation: 280 A
- Perm. current rating in air 25°C - trefoil formation: 280 A
- Maximum Pulling Tension: 8.55 kN
YSLF-OJ 24kV 3x1x150A KGF50 MP
Nexans ref. 10588490 - Country ref. 1054232
- Packaging: m
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 72.6 mm
- Ground conductor cross-section: 50 mm²
- Perm. current rating buried 15°C - trefoil formation: 360 A
- Perm. current rating in air 25°C - trefoil formation: 370 A
- Maximum Pulling Tension: 13.5 kN
YSLF-OJ 24kV 3x1x240A KGF50 MP
Nexans ref. 10588491 - Country ref. 1054233
- Packaging: m
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 82.1 mm
- Ground conductor cross-section: 50 mm²
- Perm. current rating buried 15°C - trefoil formation: 465 A
- Perm. current rating in air 25°C - trefoil formation: 490 A
- Maximum Pulling Tension: 21.6 kN
Description
Description
Standards
-
ProductHD 620
User benefits:
Diffusion free high voltage cable.
Avoids growth of watertrees in the thermoplastick insulation, TPI, and increases the lifetime of the cable.
Sheath integrity may be tested while on drum, before backfilling, in plastic pipes etc.
With the utilization of thermoplastic insulation every layer of the cable is recyclable.
Screen section: Value given is the physical cross section of the copper wires in the screen of one core.
Usage:
Indoor
Underground
Outdoors
Intended for high voltage energy distribution
Fire propertirs:
Halogen free
Cable marking:
NEXANS GS YSLF 24kV 1 x mm²/mm² MONTH YEAR
Lifemark
