TSLF-O 24 - 36kV single core with tube
TSLF-O 24 - 36kV single core with tube

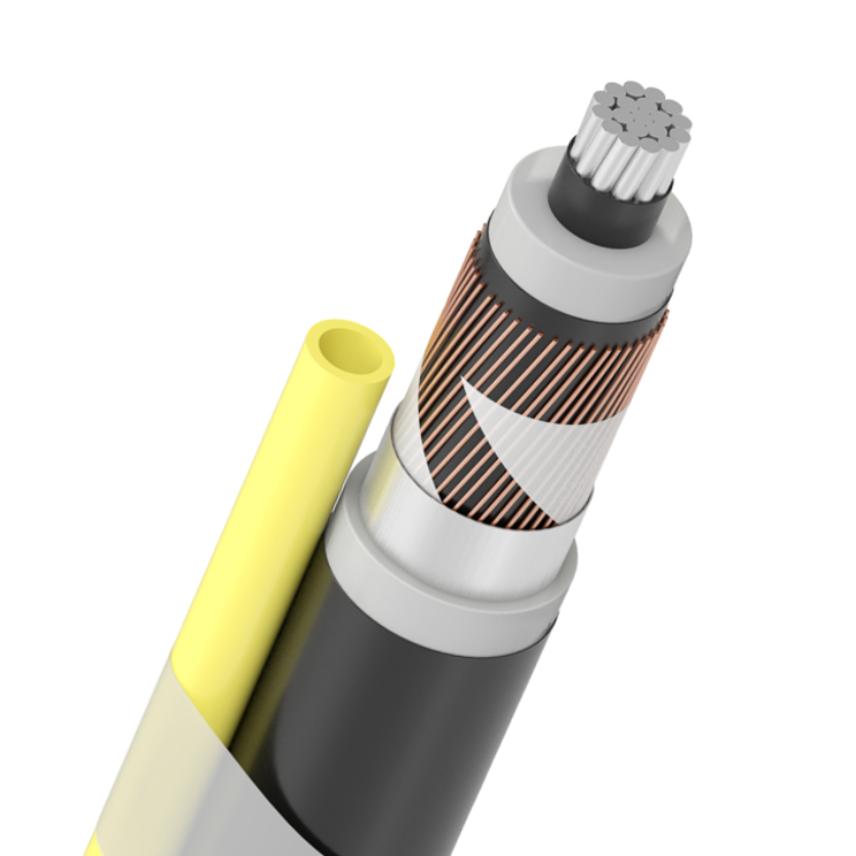

Metal screened cable with laminated aluminium and outer semiconducting layer. One optical tube is fastend to the cable surfase with a strong tape for future installation of optical cable
Read moreTSLF-O 24kV 1x50A
Nexans ref. 10581270 - Country ref. 1007991
- Packaging: Drum (1000m)
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 27.0 mm
- Approximate weight: 0.765 kg/m
- Perm. current rating buried 15°C - flat formation: 200 A
- Maximum operating voltage: 24 kV
- Maximum Pulling Tension: 1.5 kN
TSLF-O 36kV 1x150A
Nexans ref. 10540620
- Packaging: Drum (1000m)
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 39.9 mm
- Approximate weight: 1.694 kg/m
- Perm. current rating buried 15°C - flat formation: - A
- Maximum operating voltage: 36 kV
- Maximum Pulling Tension: 4.5 kN
TSLF-O 36kV 1x240A
Nexans ref. 10540621
- Packaging: Drum (1000m)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 44.2 mm
- Approximate weight: 2.084 kg/m
- Perm. current rating buried 15°C - flat formation: - A
- Maximum operating voltage: 36 kV
- Maximum Pulling Tension: 7.2 kN
TSLF-O 24kV 1x400A
Nexans ref. 10224391 - Country ref. 1021210
- Packaging: Drum (1000m)
- Conductor cross-section: 400 mm²
- Nominal outer diameter: 44.3 mm
- Approximate weight: 2.311 kg/m
- Perm. current rating buried 15°C - flat formation: 585 A
- Maximum operating voltage: 24 kV
- Maximum Pulling Tension: 12 kN
TSLF-O 36kV 1x400A
Nexans ref. 10540622
- Packaging: Drum (1000m)
- Conductor cross-section: 400 mm²
- Nominal outer diameter: 50.4 mm
- Approximate weight: 2.69 kg/m
- Perm. current rating buried 15°C - flat formation: - A
- Maximum operating voltage: 36 kV
- Maximum Pulling Tension: 12 kN
TSLF-O 36kV 1x630A
Nexans ref. 10540623
- Packaging: Drum (1000m)
- Conductor cross-section: 630 mm²
- Nominal outer diameter: 57.9 mm
- Approximate weight: 3.8 kg/m
- Perm. current rating buried 15°C - flat formation: - A
- Maximum operating voltage: 36 kV
- Maximum Pulling Tension: 18.9 kN
Description
Description
Standards
-
ProductHD 620.10K; IEC 60502-2
User benefits:
Diffusion free high voltage cable. Avoids therefore growth of water trees in the XLPE insulation which increases the lifetime.
The semiconducting layer makes it easy to test the outer sheats integrity while on drum, before backfilling, in plastic tubes etc.
Screen section: Value given is the physical cross section of the copper wires in one core.
The cable has three tubes for future installation of optical cables.
Usage:
Indoor
Underground
Outdoors
Intended for high voltage energy distribution
Fire properties:
Halogen free
Cable marking:
NEXANS NS TSLF XX kV 1 x mm²/mm² MONTH YEAR
Lifemark
