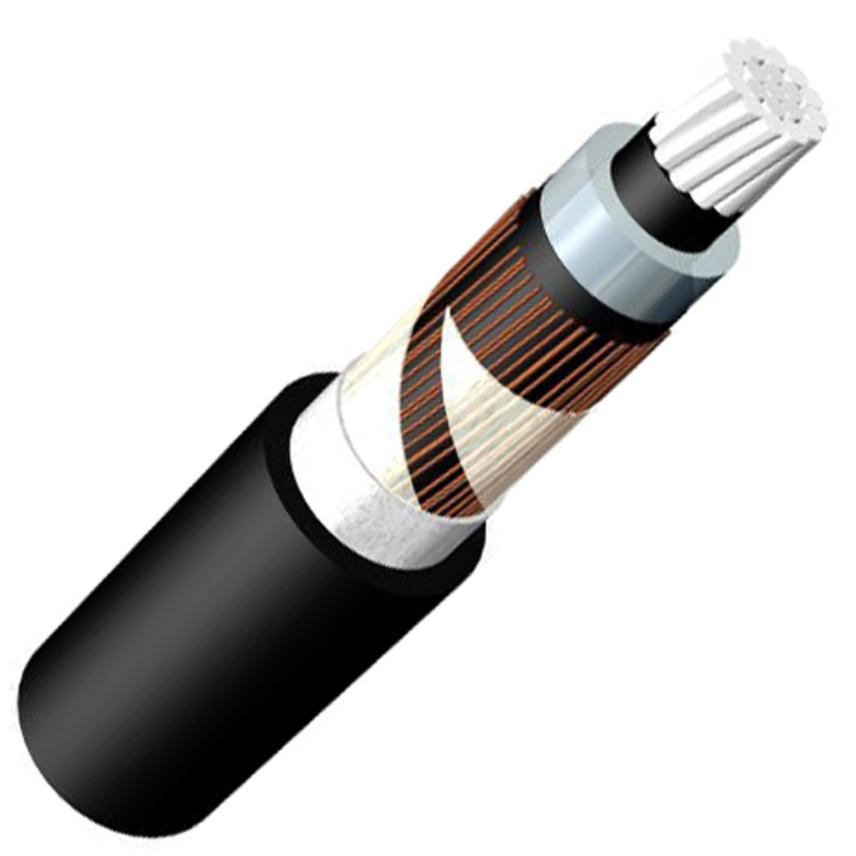

TSLI 36kV 1x630AQ
Description
Description
Standards
-
ProductHD 620.10K
-
TestIEC 60332-3 Cat.C
User benefits:
Diffusion free high voltage cable
Avoids threfore growth of watertrees in the XLPE insulation which increases the lifetime.
Outer sheath of fire retardent material
Meter marks
Usage:
Indoor
Tunnels
Industrial installations
Surroundings which require a fire retardent cable
Fire properties:
Fire retardent
Halogenfree
Cable marking:
NEXANS NS TSLI XX kV 1 x mm²/mm² MONTH YEAR, metermarks
Lifemark
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Conductor shape
Circular compacted
Material used for longitudinal water tightness
Swelling powder
Material of the inner semi-conductor
Extruded
Insulation
Extruded XLPE compound
Material of the external semi-conductor
Extruded
Screen
Copper wire
Outer sheath
Flame retardant polymer compound
Radial waterproof
Yes
Conductor flexibility
Class 2
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
630 mm²
Conductor diameter
30.4 mm
Nominal insulation thickness
8.0 mm
Diameter over insulation
- mm
Screen section
- mm²
Average sheath thickness
- mm
Nominal outer diameter
- mm
Approximate weight
3670 kg/km
Number of cores
1
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
0.0469 Ohm/km
Phase reactance 50 Hz - trefoil formation
- Ohm/km
Phase reactance 50 Hz - flat formation
- Ohm/km
Maximum operating voltage
36 kV
Perm. current rating buried 15°C - flat formation
- A
Perm. current rating buried 15°C - trefoil formation
- A
Perm. current rating in air 25°C - flat formation
- A
Perm. current rating in air 25°C - trefoil formation
- A
Permissible short circuit current
- A
Nominal phase capacitance
- µF / km
Rated Voltage Uo/U (Um)
18 / 30 (36) kV
Mechanical characteristics
Mechanical characteristics
Maximum pulling force by laying
18.9 kN
Usage characteristics
Usage characteristics
Maximum operating temperature
90 °C
Minimum installation temperature
-20 °C
Bending factor when laying
15 (xD)
Fire retardant
IEC 60332-3-24 (cat C)
Resources
Resources
Selling & delivery Information
Cable marking:
NEXANS NS TSLI XX kV 1 x mm²/mm² MONTH YEAR, metermarks
Lifemark
Declaration of Performance
- Declaration of Performance n� : 1000333-FRBG
- Certification Date : 6/22/17
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : NB 0081
- Declared performance : Dca-s2,d2,a2
