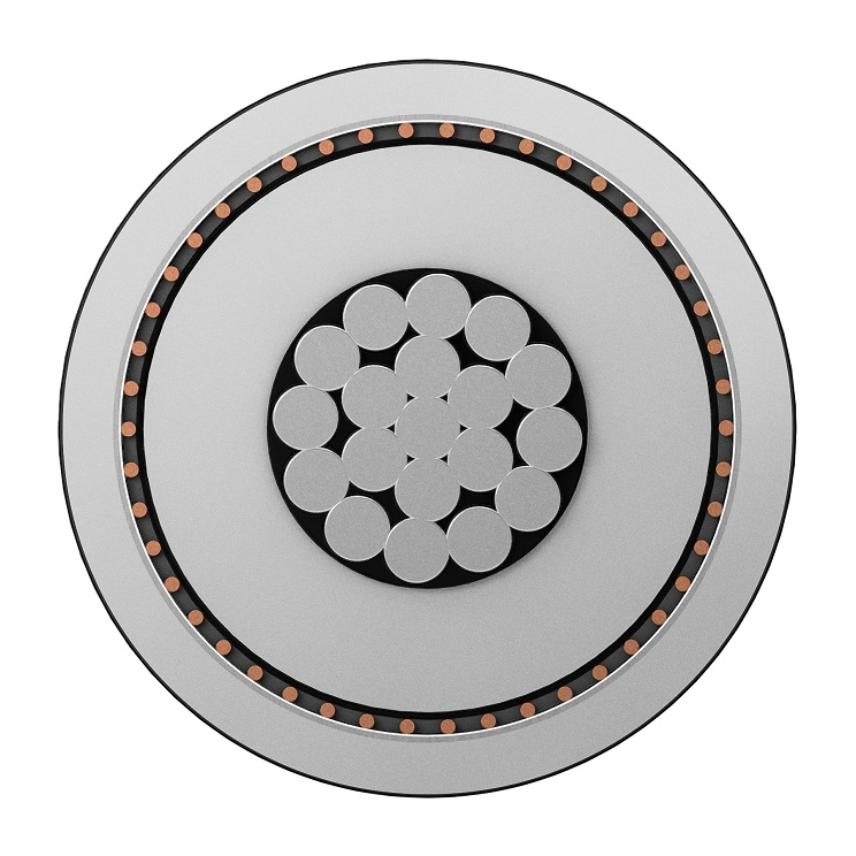

TSLF-OF 24kV three cores with one optical fiber cable

Products

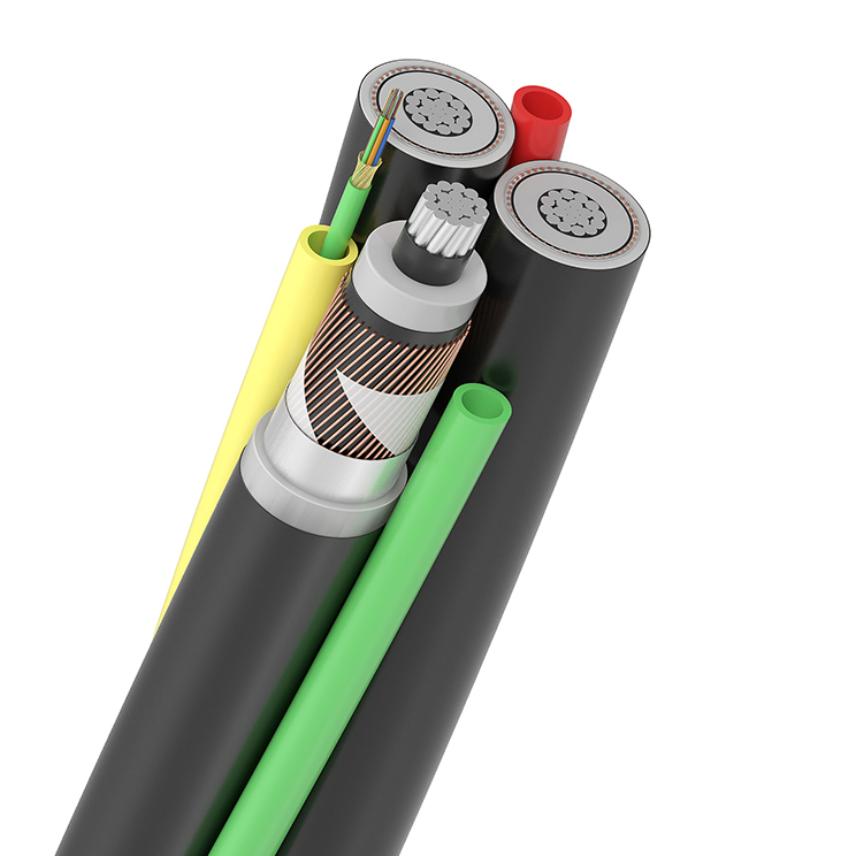

TSLF-OF 24kV 3x1x50A G24

Nexans ref. 10258906 - Country ref. 1007561

  • Packaging: Drum (500m)
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 58.2 mm
  • Number of optical fibres: 24
  • Approximate weight: 2.336 kg/m
  • Perm. current rating buried 15°C - trefoil formation: 180 A
  • Maximum Pulling Tension: 4.5 kN



TSLF-OF 24kV 3x1x50A G48

Nexans ref. 10258918 - Country ref. 1007565

  • Packaging: Drum (500m)
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 58.2 mm
  • Number of optical fibres: 48
  • Approximate weight: 2.336 kg/m
  • Perm. current rating buried 15°C - trefoil formation: 180 A
  • Maximum Pulling Tension: 4.5 kN



TSLF-OF 24kV 3x1x50A G96

Nexans ref. 10567095 - Country ref. 1007538

  • Packaging: Drum (500m)
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 58.2 mm
  • Number of optical fibres: 96
  • Approximate weight: 2.336 kg/m
  • Perm. current rating buried 15°C - trefoil formation: 180 A
  • Maximum Pulling Tension: 4.5 kN



TSLF-OF 24kV 3x1x95A G24

Nexans ref. 10255690 - Country ref. 1007562

  • Packaging: Drum (500m)
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 65.9 mm
  • Number of optical fibres: 24
  • Approximate weight: 3.147 kg/m
  • Perm. current rating buried 15°C - trefoil formation: 265 A
  • Maximum Pulling Tension: 8.55 kN



TSLF-OF 24kV 3x1x95A G48

Nexans ref. 10252165 - Country ref. 1007566

  • Packaging: Drum (500m)
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 65.9 mm
  • Number of optical fibres: 48
  • Approximate weight: 3.147 kg/m
  • Perm. current rating buried 15°C - trefoil formation: 265 A
  • Maximum Pulling Tension: 8.55 kN



Description

Description

Standards

  • Product
    HD 620.10K

User benefits:

Diffusion free high voltage cable. Avoids therefore growth of water trees in the XLPE insulation which increases the lifetime.

The semiconducting layer makes it easy to test the outer sheats integrity while on drum, before backfilling, in plastic tubes etc.

The cable has two tubes, and one of the tubes includes an optical fiber cable, and the other tube is free for future installation of an other optical cables.

Usage:

Indoor

Underground

Outdoors

Intended for high voltage energy distribution

Fire properties:

Halogen free

Cable marking:

NEXANS NS TSLF-OF XX kV 1 x mm²/mm² MONTH YEAR

Lifemark

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Stranded class 2

Dimensional characteristics

Dimensional characteristics

Number of cores
3

Electrical characteristics

Electrical characteristics

Maximum operating voltage
24 kV
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
