TSLF-OJ 24kV MP three cores with two tubes, one Cu wire and a red searchable marking stripe
TSLF-OJ 24kV MP three cores with two tubes, one Cu wire and a red searchable marking stripe

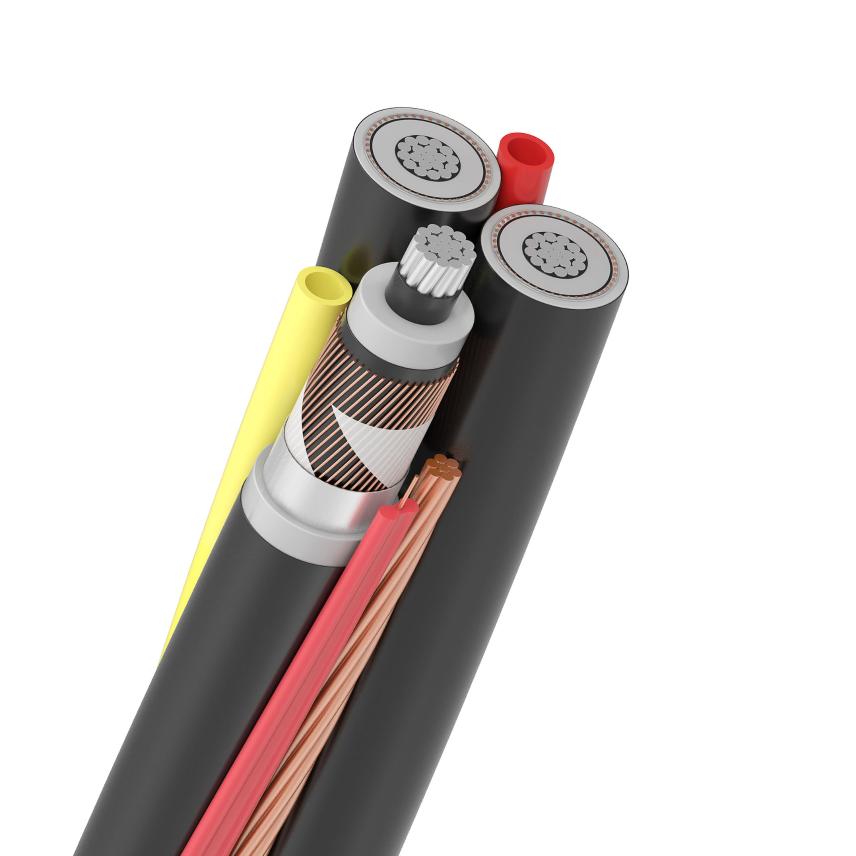

Metal screened cable with laminated aluminium and outer semiconducting layer. Three cores twisted together with two tubes for future installation of optical cable, one ground conductor and a red searchable marking stripe
Read moreTSLF-OJ 24kV 3x1x240A KGF50 MP
Nexans ref. 10577341 - Country ref. 1007693
- Packaging: Drum (500m)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 82.1 mm
- Approximate weight: 5.583 kg/m
- Maximum Pulling Tension: 21.6 kN
TSLF-OJ 24kV 3x1x400A KGF50 MP
Nexans ref. 10577342 - Country ref. 1007694
- Packaging: Drum (300m)
- Conductor cross-section: 400 mm²
- Nominal outer diameter: 95.5 mm
- Approximate weight: 7.369 kg/m
- Maximum Pulling Tension: 36 kN
Description
Description
Standards
-
ProductHD 620.10K
User benefits:
Diffusion free high voltage cable. Avoids therefore growth of water trees in the XLPE insulation which increases the lifetime.
The semiconducting layer makes it easy to test the outer sheats integrity while on drum, before backfilling, in plastic tubes etc.
The cable has two tubes for future installation of optical cables and one ground conductor.
Usage:
Indoor
Underground
Outdoors
Intended for high voltage energy distribution
Fire properties:
Halogen free
Cable marking:
NEXANS NS TSLF 12 kV 1 x mm²/mm² MONTH YEAR
Lifemark
