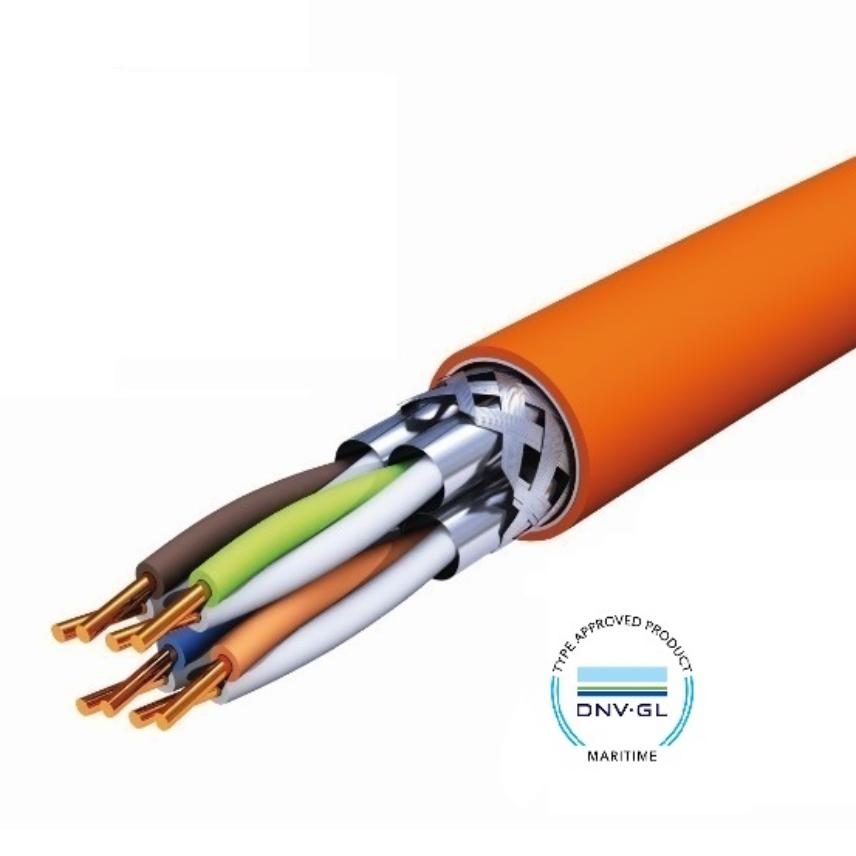

LMM7 Cat.7 S/FTP SHF1 DNV OG
LMM7 Cat.7 S/FTP SHF1 DNV OG
- DNV approval
- SHF1 compliant outer jacket
- Complies to latest Cat 7 standard version
- Supports Class F applications
- Cable tested up to 800 MHz

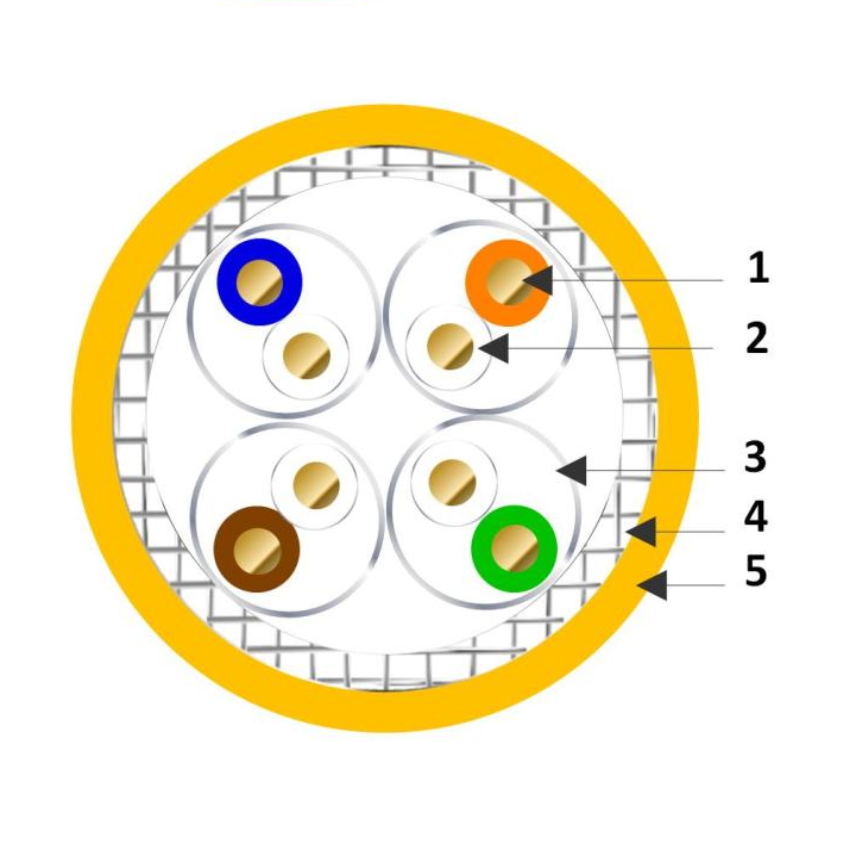

- Individual foiled pairs with global screen for EMC performance
- Tinned copper braid for enhanced EMC performances and mechanical performances
- Segregation class : d
- Compatible POE(802.3af), POE+(802.3at), POE++(802.3bt), UPOE
- RoHS EC Directive compliant
- Compliant with European Reach regulation
NEX S/FTP CAT7 800 4P SHF1 D1000 OR
Nexans ref. 10273786 - Country ref. 1067941
- Packaging: Drum (4000m)
Description
Description
Standards
-
International2014/68/EU; EN 50173; EN 50288; IEC 60092-360; IEC 60332-1; IEC 61156-5; ISO/IEC 11801

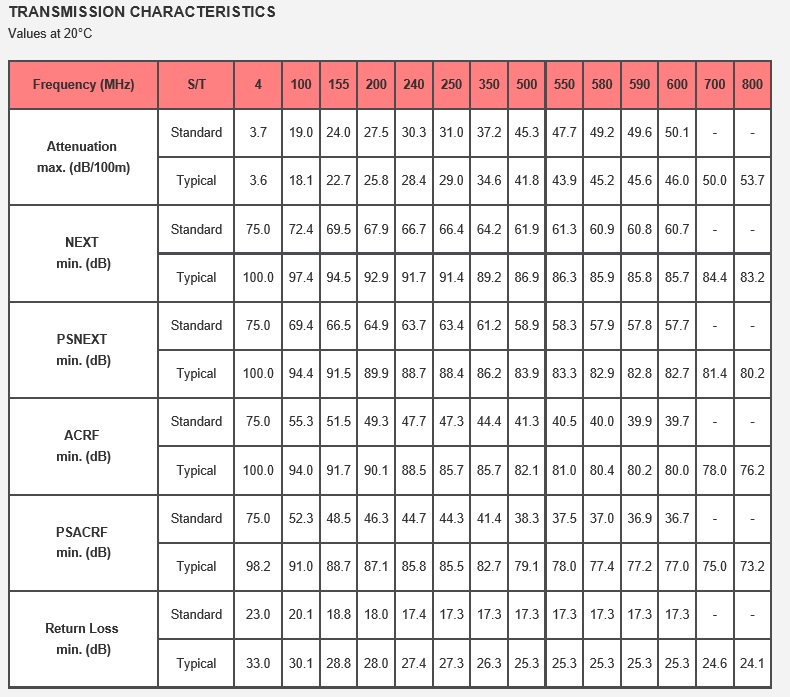

Cat 7 800 S/FTP SHF1 TRANSMISSION CHRACTERISTICS
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Sheath colour
Orange
Outer sheath
SHF 1
Dimensional characteristics
Dimensional characteristics
Number of pairs
4
Usage characteristics
Usage characteristics
Packaging
Drum
Flame retardant
IEC 60332-1
Resources
Resources
Selling & delivery Information
Delivered on a 4 km drum. Can be cut and delivered in customized lengths and smaller drums upon request. REMEMBER: Assisted unwinding is important for long lengths to avoid overloading the mechanical performance of the cable.
