NEX S/FTP CAT7 800 4P SHF1 D1000 OR

Application

Cat.7 800 S/FTP SHF1 cables are the high end offering from Nexans for the shipbuilding industry. Manufactured in accordance with ISO IEC 61156-5 requirements and in accordance with IEC 60092-360 for Shipbuilding, the Cat.7 800 S/FTP SHF1 cable is the best choice to support all Class F applications like Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, … The Cat.7 800 S/FTP SHF1 cables are suitable for voice, data, CATV and sharing application installations up to 600 MHz. Nexans Cat.7  cables, combined with a similar class of performance connectivity,  are suitable for voice and data installations according to ISO/IEC 11801, EN 50173 and TIA/EIA 568 standards.

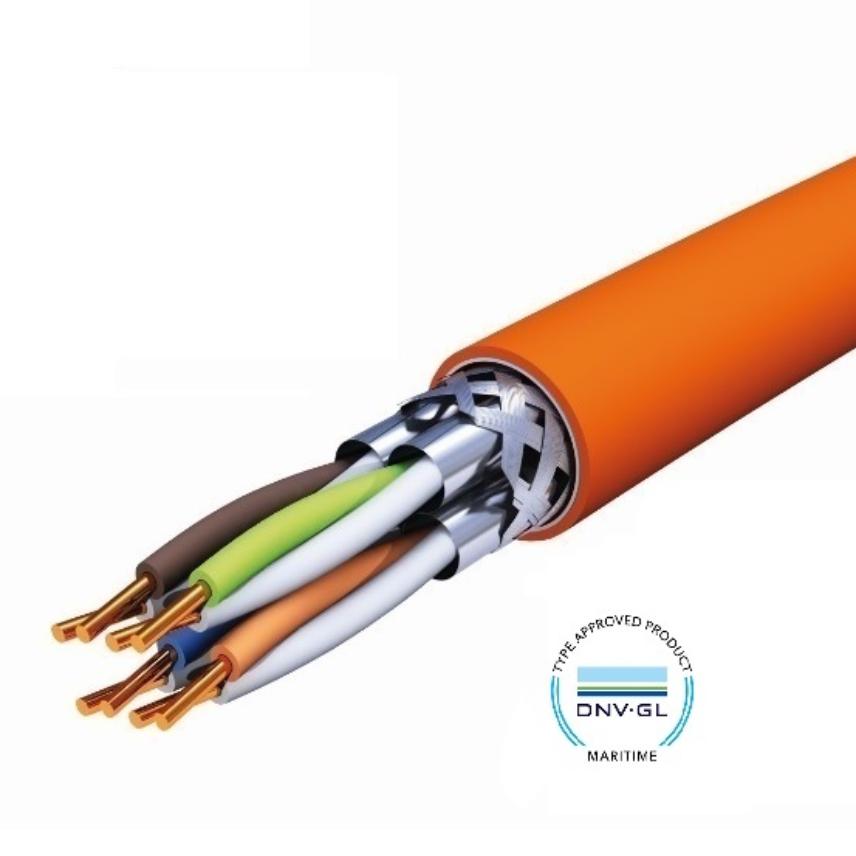

Construction

1. Conductor: solid bare copper
2. Insulation : Polyethylen (EN 50290-2-23) - Two insulated conductors twisted to a pair
3. Screen: ALU/PET on each pair. Alu outside - 4/2 laid up together
4. Tinned copper braid
5. Outer Jacket : LSZH - SHF1 compliant

Environment

Designed to reduce the environment impact, Nexans cables are compliant with RoHS 2011/65 Directive and European Reach 1907/2006/EC regulation. The outer sheat of the cable is made of halogen free material (IEC 60754-1 / EN 50267-2-1), whith limited fumes emission (IEC 61034-1/2 / EN 50268-1/2) and no acid gaz emission in case of fire (IEC 60754-2 / EN 50267-2-2).
Nexans measure the environmental impact of each of the cable. Upon request the PEP Ecopassport or the Eco Material Declaration could be available.
