TFXP-O 1kV
TFXP-O 1kV

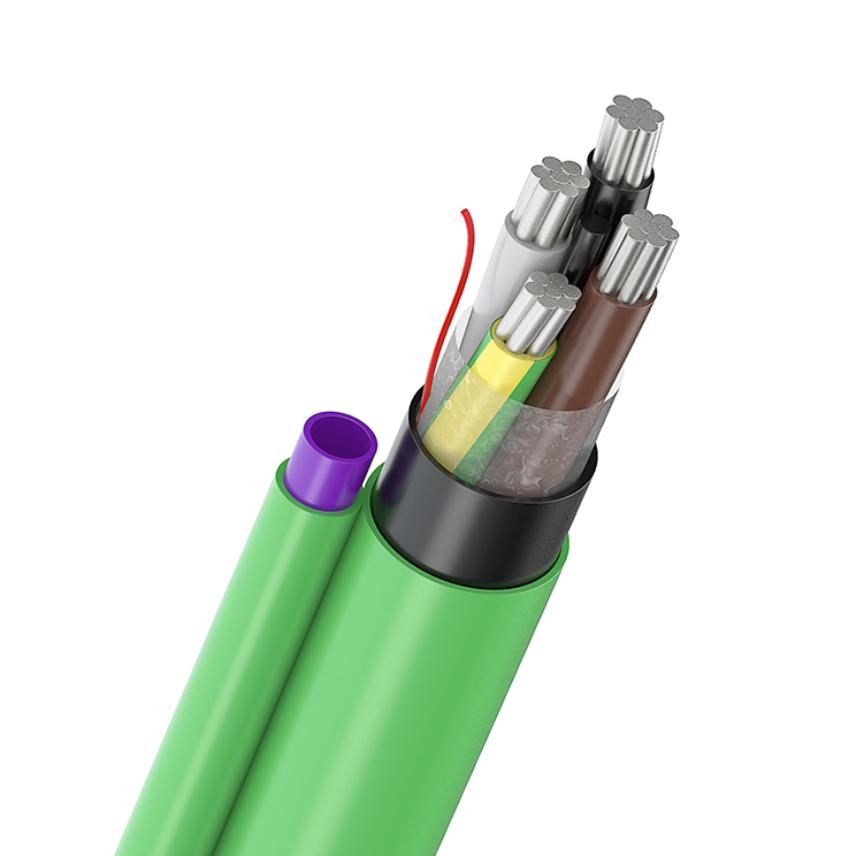

TFXP-O has XLPE-insulated aluminium conductors and tube for future installation of optical cable
Read moreTFXP-O 1kV 4G25mm²A
Nexans ref. 10147869 - Country ref. 1017569
- Packaging: Drum (1000m)

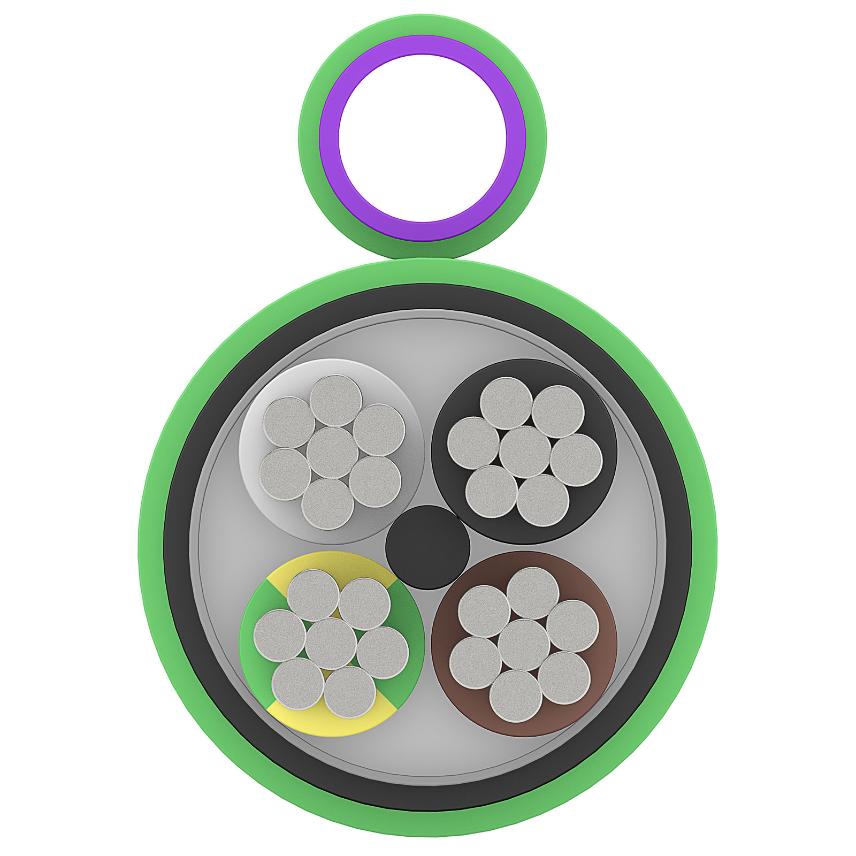

- Conductor shape: Circular compacted
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 25.0 mm
- Approximate weight: 0.68 kg/m
- Permissible current rating in open air: 105 A
- Permissible current rating when buried: 125 A
- Capacity of phase cores approx.: 0.09 µF / km
- Maximum Pulling Tension: 3 kN
TFXP-O 1kV 4G50mm²A
Nexans ref. 10147871 - Country ref. 1017571
- Packaging: Drum (700m)
- Conductor shape: Circular compacted
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 31.0 mm
- Approximate weight: 1 kg/m
- Permissible current rating in open air: 165 A
- Permissible current rating when buried: 180 A
- Capacity of phase cores approx.: 0.1 µF / km
- Maximum Pulling Tension: 6 kN
TFXP-O 1kV 4G95mm²A
Nexans ref. 10133034 - Country ref. 1017572
- Packaging: Drum (500m)

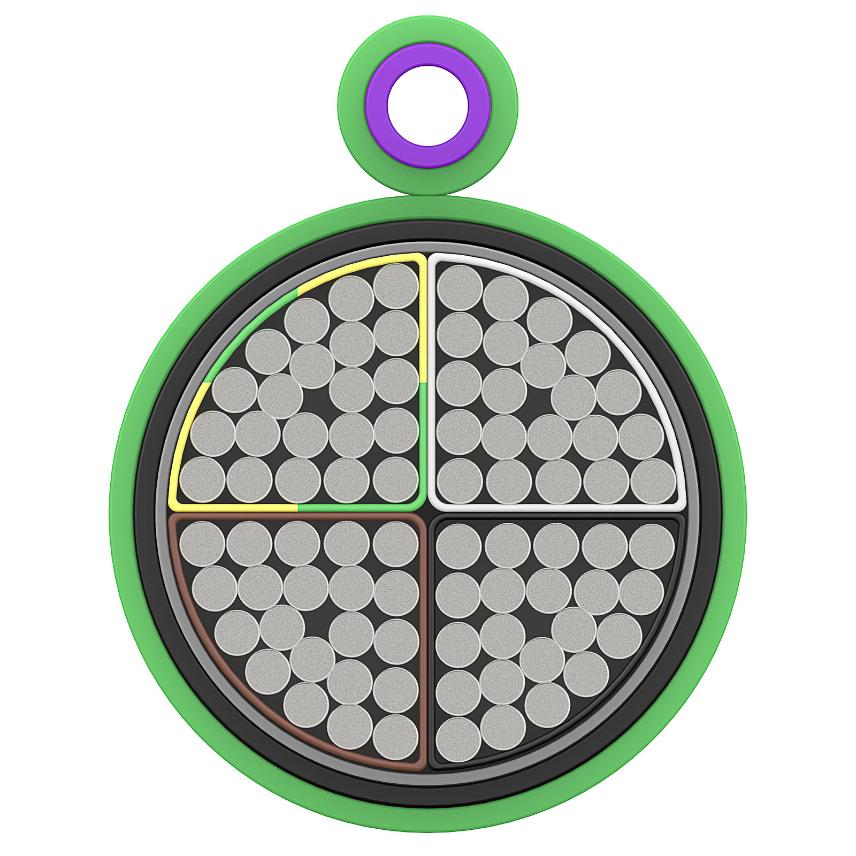

- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 38.0 mm
- Approximate weight: 1.74 kg/m
- Permissible current rating in open air: 245 A
- Permissible current rating when buried: 260 A
- Capacity of phase cores approx.: 0.12 µF / km
- Maximum Pulling Tension: 11.4 kN
TFXP-O 1kV 4G150mm²A
Nexans ref. 10133035 - Country ref. 1017574
- Packaging: Drum (500m)
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 45.0 mm
- Approximate weight: 2.52 kg/m
- Permissible current rating in open air: 320 A
- Permissible current rating when buried: 335 A
- Capacity of phase cores approx.: 0.13 µF / km
- Maximum Pulling Tension: 18 kN
TFXP-O 1kV 4G240mm²A
Nexans ref. 10133036 - Country ref. 1017576
- Packaging: Drum (400m)
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 56.0 mm
- Approximate weight: 3.82 kg/m
- Permissible current rating in open air: 430 A
- Permissible current rating when buried: 435 A
- Capacity of phase cores approx.: 0.14 µF / km
- Maximum Pulling Tension: 28.8 kN
TFXP-O 1kV 4G300mm²A NEW
Nexans ref. 10565274 - Country ref. 1017589
- Packaging: Drum (400m)
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 60.3 mm
- Approximate weight: 4.77 kg/m
- Permissible current rating in open air: - A
- Permissible current rating when buried: 490 A
- Capacity of phase cores approx.: 0.14 µF / km
- Maximum Pulling Tension: 36 kN
Description
Description
Standards
-
ProductHD 603.5M
-
TestIEC 60332-1
User benefits:
The cable is specially devoloped for low temperature conditions. It is used as a distribution cable for houses, and has an outer tube for future installation of optical cable. Fibre optic microcables as B-Lite Green could be used in any power cable with fibre tube or in standard cableway of microducts.
Installation:
- Underground
- Outdoor
Usage
- Energy distribution
Marking
NEXANS GS TFXP-O n x mm2 1kV YEAR MONTH
Conductor marking/colour code
Black-Brown-Grey-Green/Yellow
